P6.25 Outdoor Rental Full Color LED Display Panel
Shenzhen Chuangkaiguang Co., Ltd.Base Info
Description
NO.ParameterSpecifications1ModelR62Pixel Pitch(mm)6.253LEDSMD35354Screen Resolution25600dots/sqm5Scan Method1/76Cabinet size(L*H*W)500x500x88mm 7Cabinet(Kg)7.8KG8Viewing angleH:140° V:140°9Grey Scale14bits10Refresh rate(HZ)≥192011Module size(mm)250*25012Brightness(nits)≥550013Working Voltage(V)AC 100~220V14AVE. power consumption (W/sqm)27515MAX. power consumption(W/sqm)70016IP gradeF:IP65 / R:IP5417controllerNova18Working humidity10~95%RH19Input VoltageAC 110V-220V +/-10%20Frame requency60Hz21Working temperature-30ºC~60ºC22ComplianceCCC / CE/ RoHS

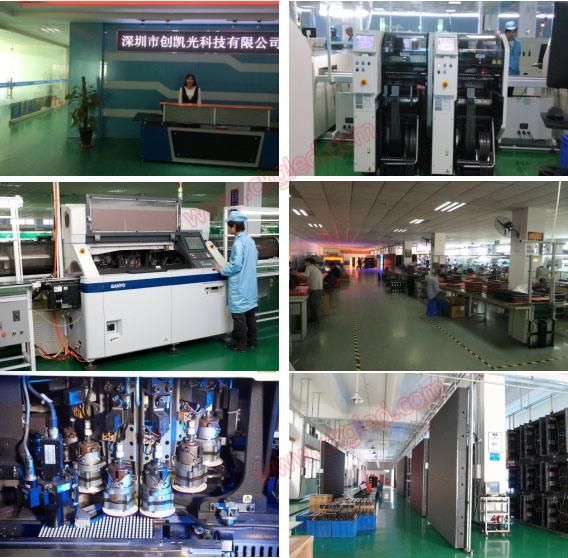

WORKSHOP:

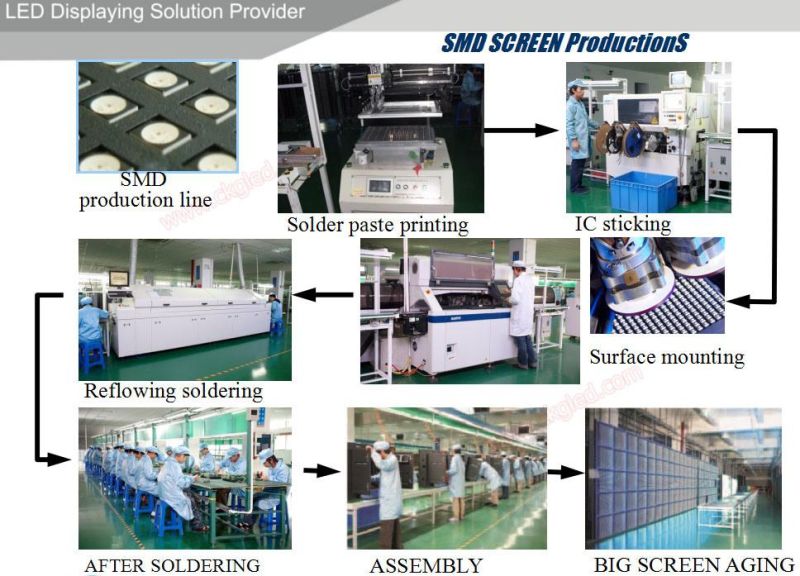

PROCESS:
PRODUCT PHOTOS:
Certificates:

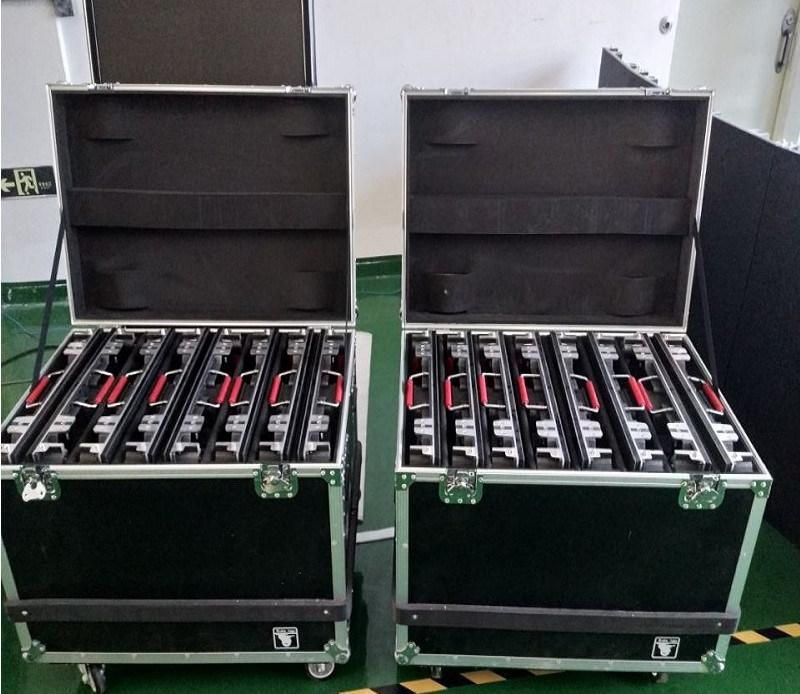

Package:
