Basic Info.

Model NO. HM24V-SMD3014300 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.


Product Dimension

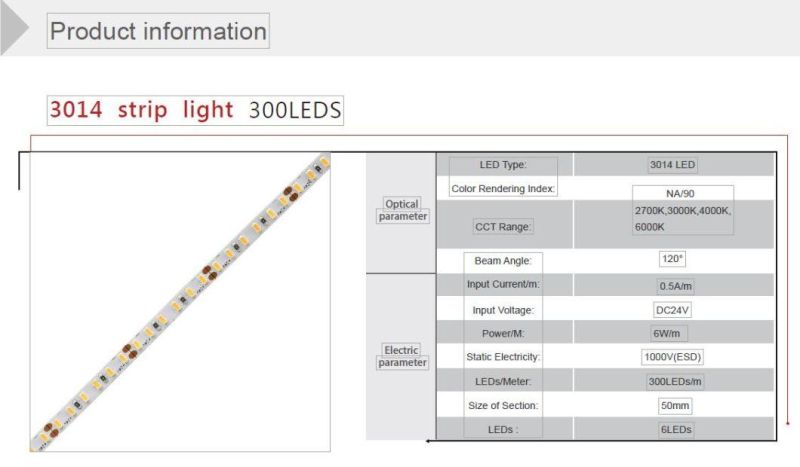

Optical parameter
LED Type: SMD3014
Color Rendering Index: 80
CCT Range:  2700K, 3000K, 4000K, 6000K
Beam Angle: 120°
Light Efficiency: 92.2/93.1/93.8/95.3Lm/w
Lumen Output/meter: 2950Lm/m (983Lm/ft)
                                   2980Lm/m (993Lm/ft)
                                   3000Lm/m (1000Lm/ft)
                                   3050Lm/m (1017Lm/ft)



Electric parameter

Input Current/m: 0.50A/m
Input Voltage: DC24V
Power/M: 6.0W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 300LEDs/m
Size of Section:  50mm
LEDs of Section: 6 LEDs

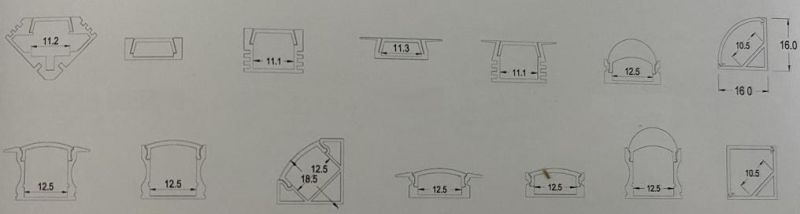

Recommended Profiles
