Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel

Shenzhen Chuangkaiguang Co., Ltd.

Base Info

Description

NO. ParameterSpecifications1ModelP3.91-SMD2020 indoor rental screen2Pixel Pitch(mm)3.913LEDSMD20204Screen Resolution655365Scan Method1/166Cabinet size(L*H*W)500X500X88mm / 500X1000X88mm Compatible7Cabinet(Kg)5.5KG / 11KG8Viewing angleH: 140° V: 140°9Grey Scale14-16bit adjustable10Refresh rate(Hz)≥1920-3840Hz11Module size(mm)250*25012Brightness(nits)≥150013AVE. Power consumption (W/sqm)20014MAX. Power consumption(W/sqm)60015IP gradeIP3116ControllerLinsn/Nova17Working humidity10~90%RH18Input VoltageAC 110V-220V +/-10%19Working temperature-30ºC~60ºC20ComplianceCCC / CE / RoHS

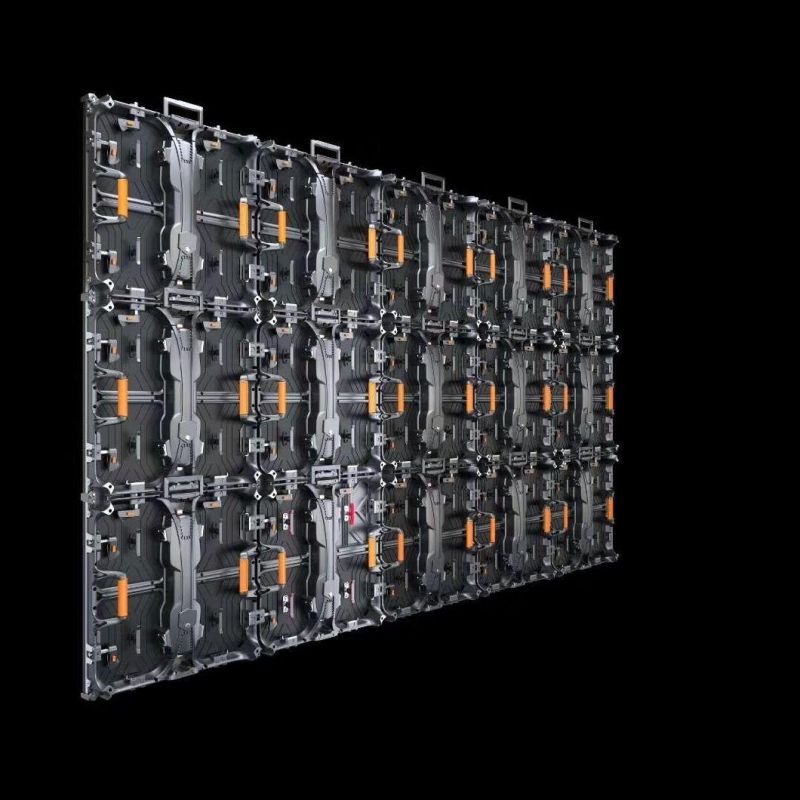

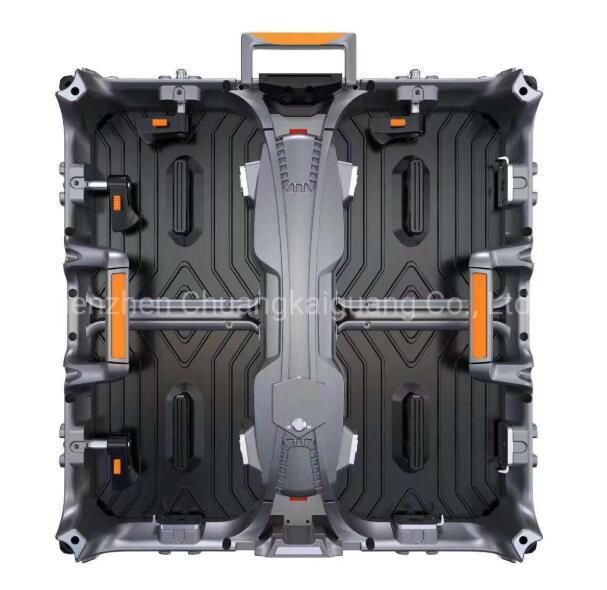

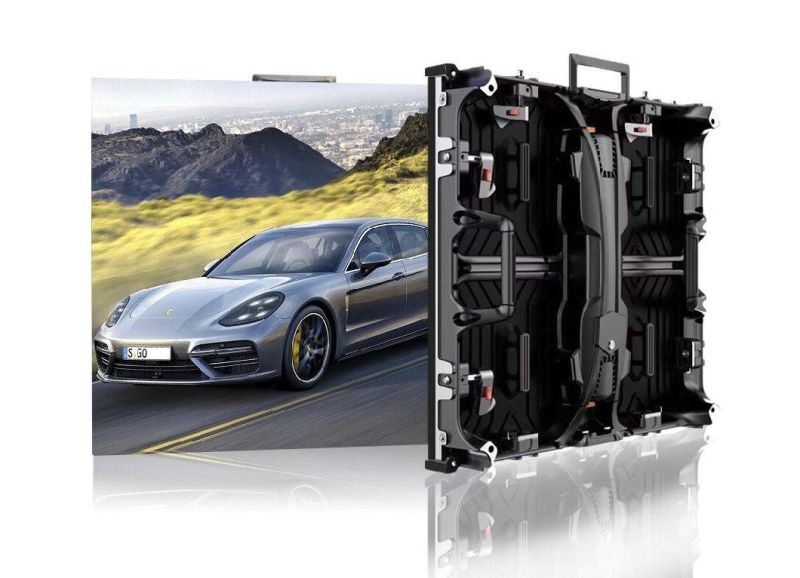

PRODUCT PHOTOS: New design (Seamless and fast assembly.)

Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel


Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel

Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel

Corner protective cableless design

Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel

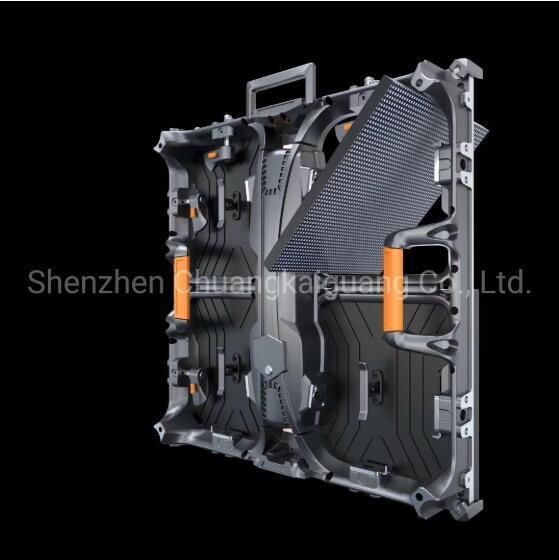

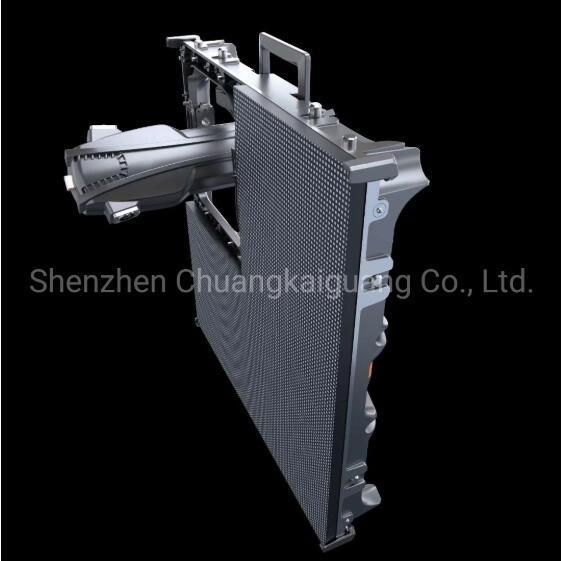

Front/Rear Maintenance

Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel
Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel

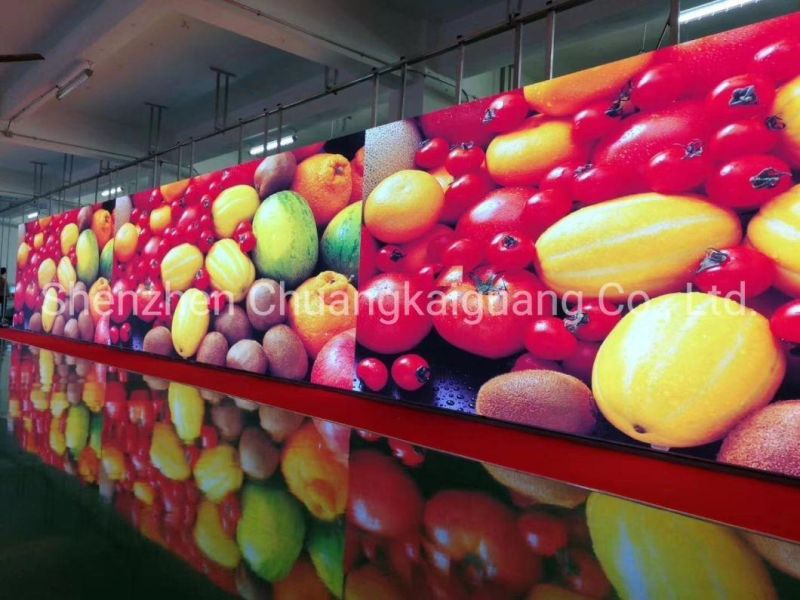

72 hours whole LED screen testing (Before shipment):

Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel


Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel
Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel
Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel

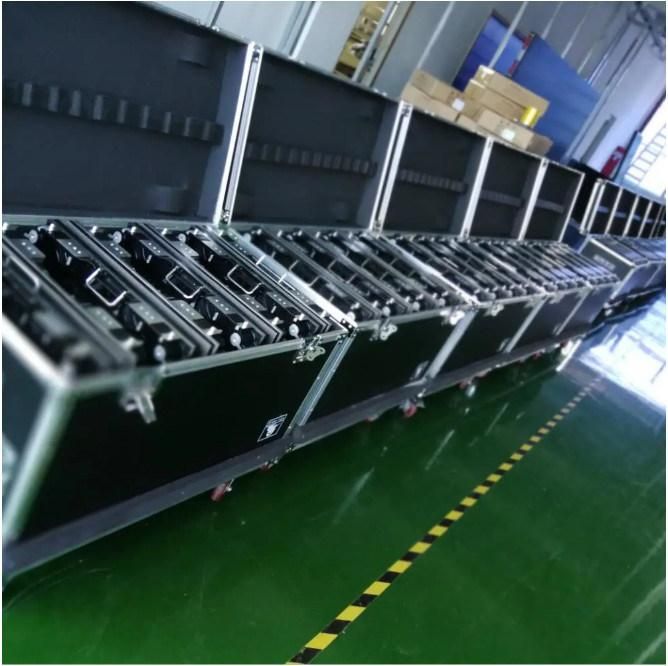

Package:

(Flight case and wooden case optional)

Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel

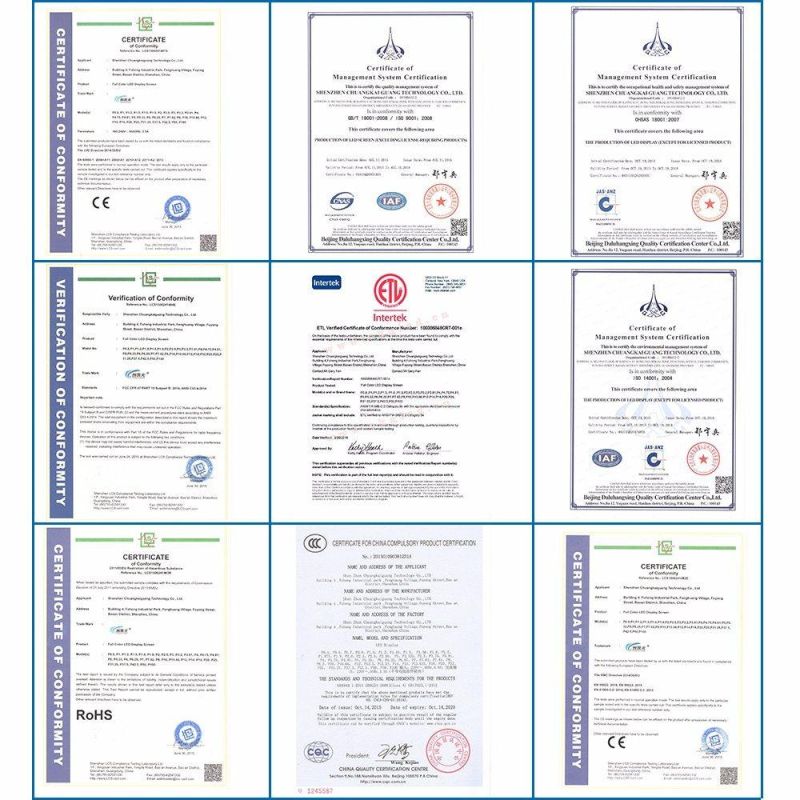

Certificates:

Ckgled P2.6/P2.9/P3.91 Indoor/Outdoor LED Screen Rental Display Panel
