Item

Model Number

Pixel Pitch

5mm

Pixel Density

40000 pixels/M2

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module size

320x160 mm

Module Resolution

64*32 pixels

Min.Viewing Distance

5 meters

Brightness

1000 nits

Viewing Angle

≤140°

Average Power Consumption

250 W/M2

Scan Mode

1/8 Scan

Protection Level

IP31

Cabinet Size

640x480mm, 640x640mm, 960x640mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920Hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

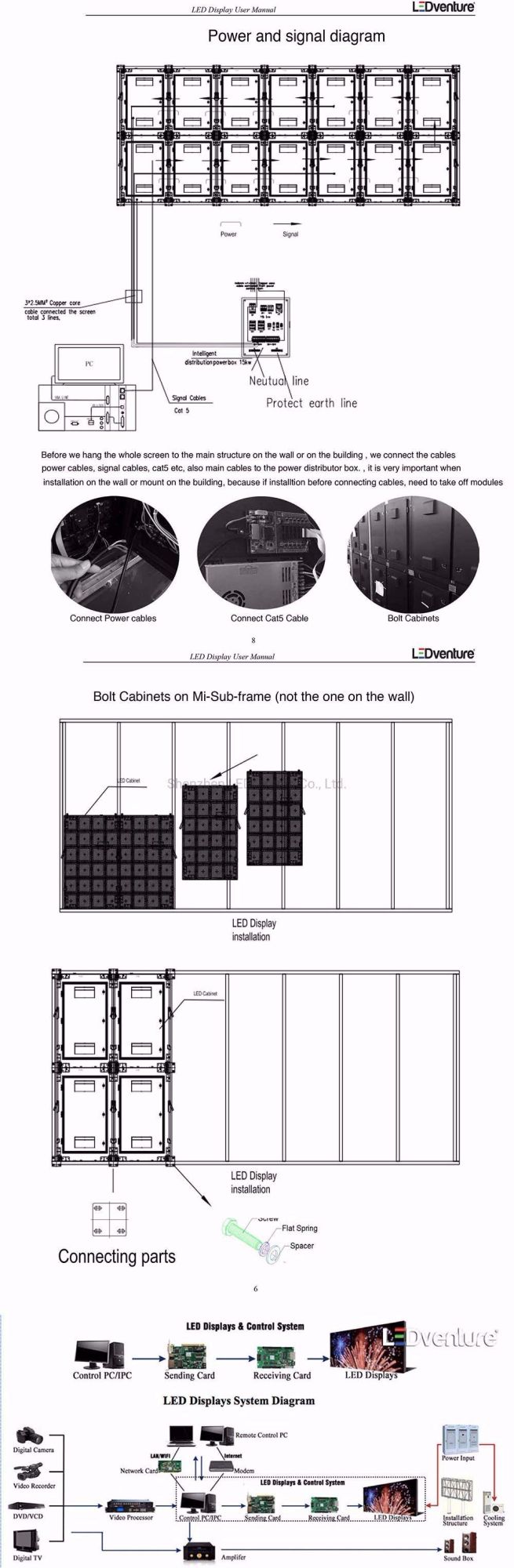

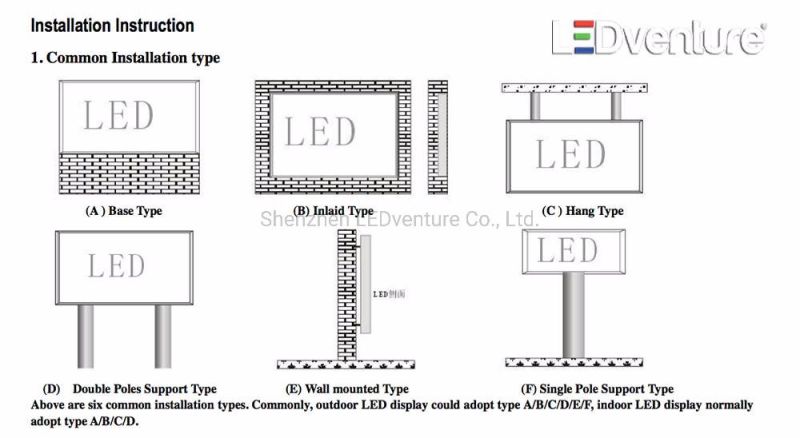

Part 5: Installation methods, indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

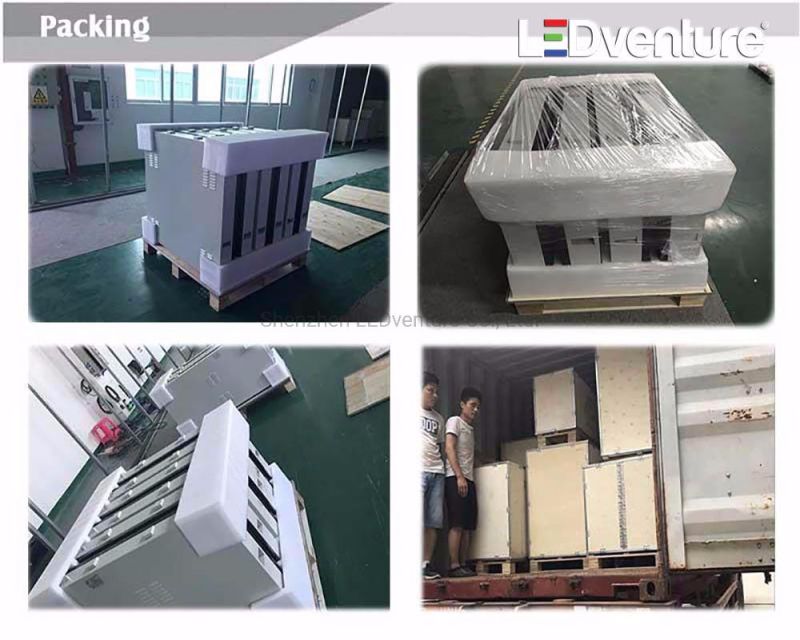

Part 6: Packing information by plywood cases, packing well and easy to load


Part 7: Certificates

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure

Part 9: LED Display Screen Installation Cases

Most of our led display exported to Europe with high standards, and small percent to USA and Asia
