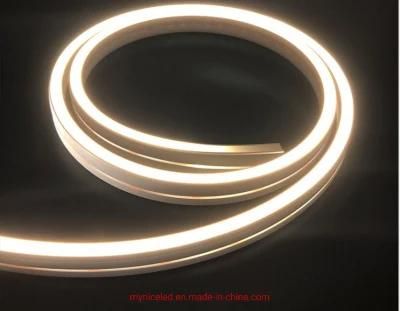

IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light Strip

Mynice Optoelectronics Co., Ltd.

Base Info

Description

 120×170

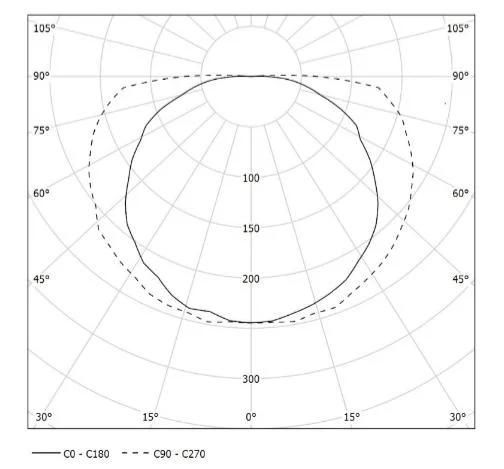

Light distribution curve:

IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light Strip
Size(unit: mm)
IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light StripIP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light Strip

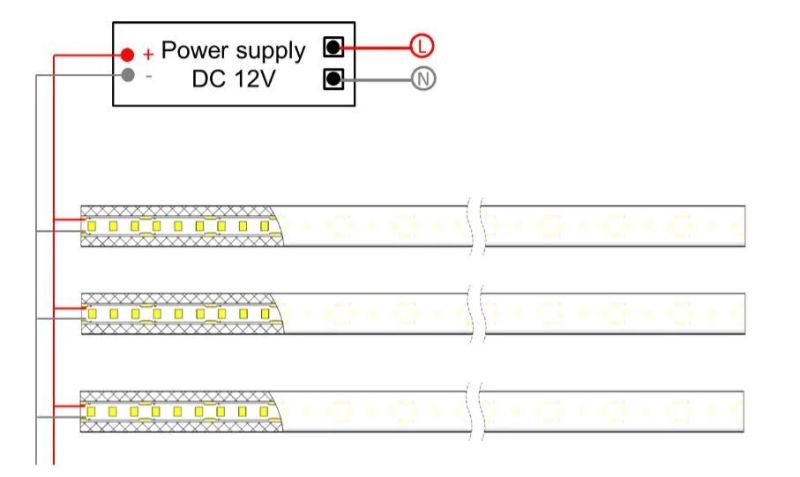

Wiring mode:connectionThe red line at the input end of the product is connected to the positive pole of the power supply, and the black line is connected to the negative pole of the power supplyMaximum connection lengthSingle terminal power supply 5m, double terminal power supply 10m

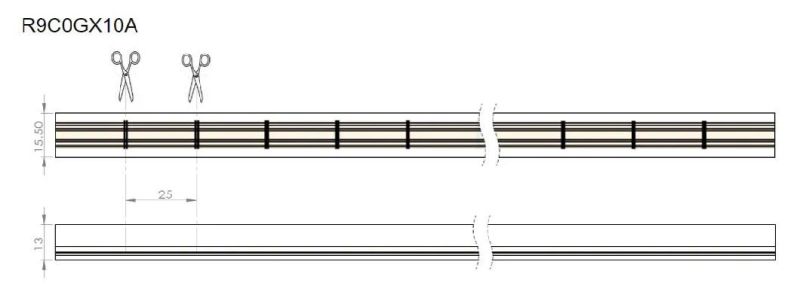

R9C0GX10A

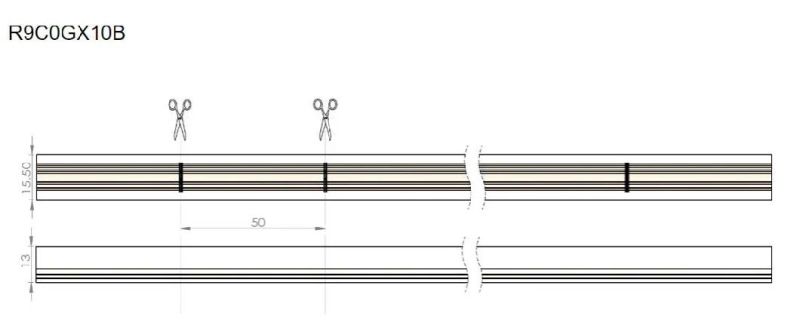

IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light StripR9C0GX10B
IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light Strip

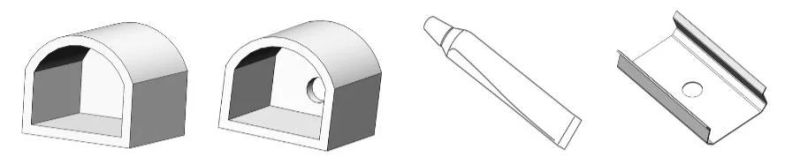

Enclosure
IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light Strip
Environment and application conditionsworking temperature-25°C~50°C Storage temperature-40°C~70°C Maximum surface temperature (TC)70°C

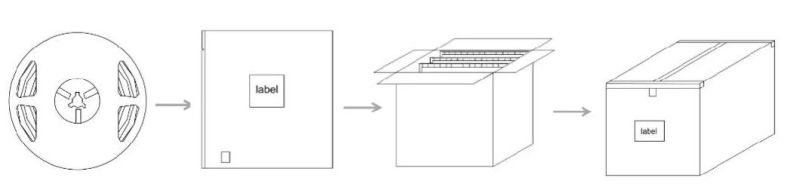

packingdescribeWeight / PCSOuter boxWeight / boxR9C0GX10X37*34*34cm
IP68 UV Proof 2700K-6500K Backlight Neon LED Strip SMD2835 Positive Bend Neon Light Strip
matters needing attention:

-The maximum current, load power and line loss of the system shall be considered for the external wiring diameter
- Neon lamp product surface and components can not bear external mechanical force to avoid damaging the product itself
- In order to avoid external force acting on the product connecting line, the product must be firmly fixed on the installation surface
- The installation of neon lights and power supply must refer to relevant electrical safety standards and must be operated by professionals
- Ensure that the power of power supply and controller can match the load
- Ensure that the power supply and controller output parameters match the neon lights
- Pay attention to electrostatic protection when installing neon lamp belt
- When the service length of neon lamp belt exceeds its rated service length, additional power supply shall be made
- When the neon lamp belt is cut, waterproof treatment must be done.
