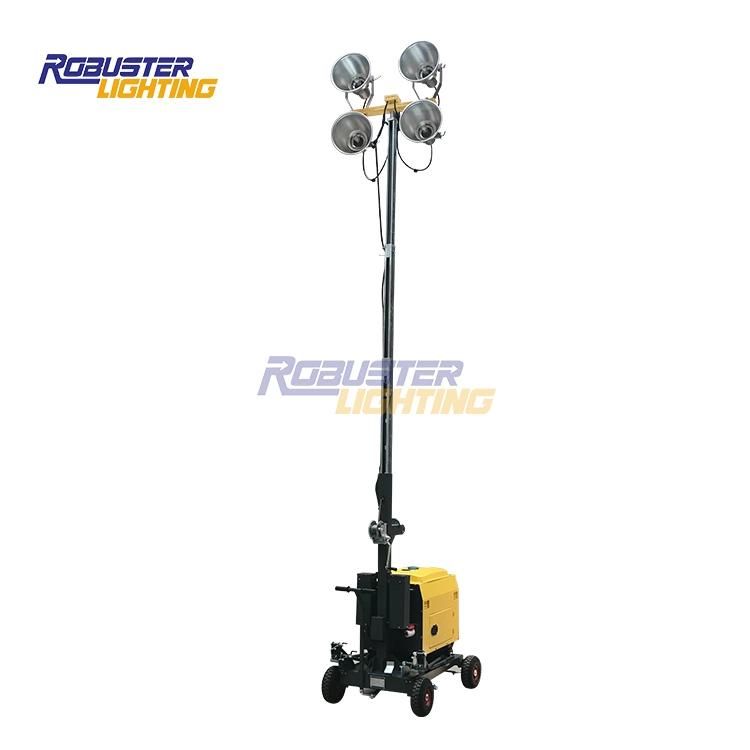

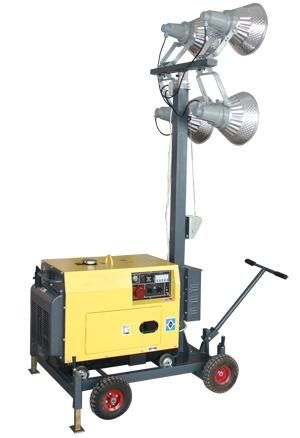

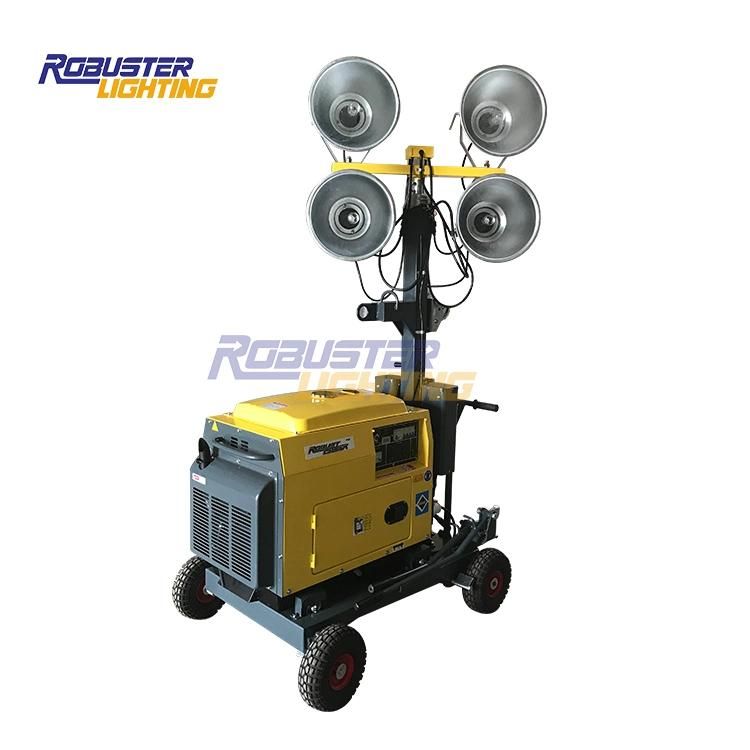

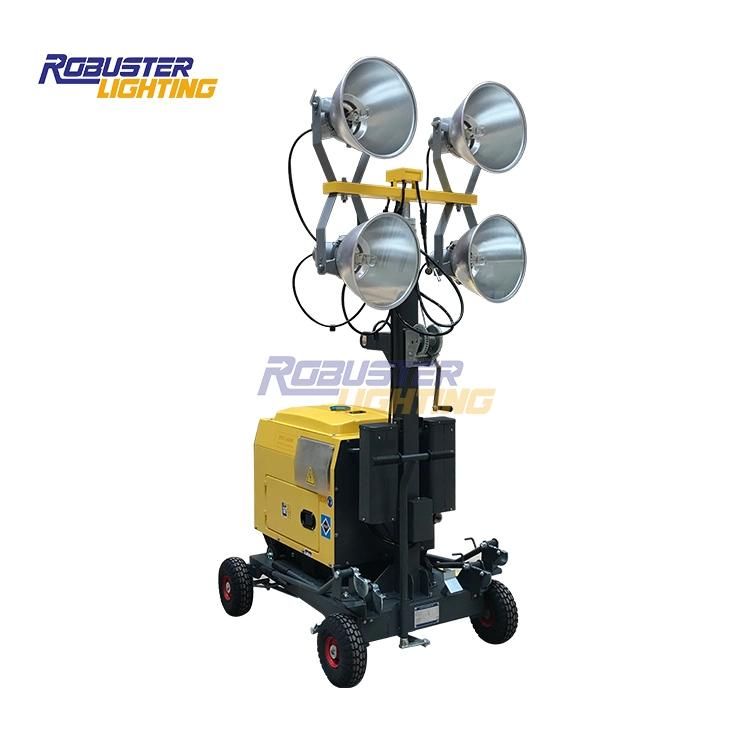

Self-Locking Mwchanism Diesel Portable Light Tower
Fujian Robust Power Co., Ltd.- Warranty：3 Year
- Fuel Capacity：12.5L
- Total Power of Lamp：4X400W
- Type of Lamp：Metal Halide Lamp
- Light Capacity：4X25000 Lumen
- Lifetime of Lamp：2000 Hours
Base Info
- Model NO.：RPLT-1600A
- Tire Size：25cm
- Brakes：Manual
- Net Weight：350kg
- Power Outlets：2
- Transport Package：Plywood Pallet , Plywood Case , Cartons
- Specification：1300x840x2600mm
- Trademark：Robust Power
- Origin：China
- HS Code：9405409000
- Production Capacity：100 Set,Month
Description

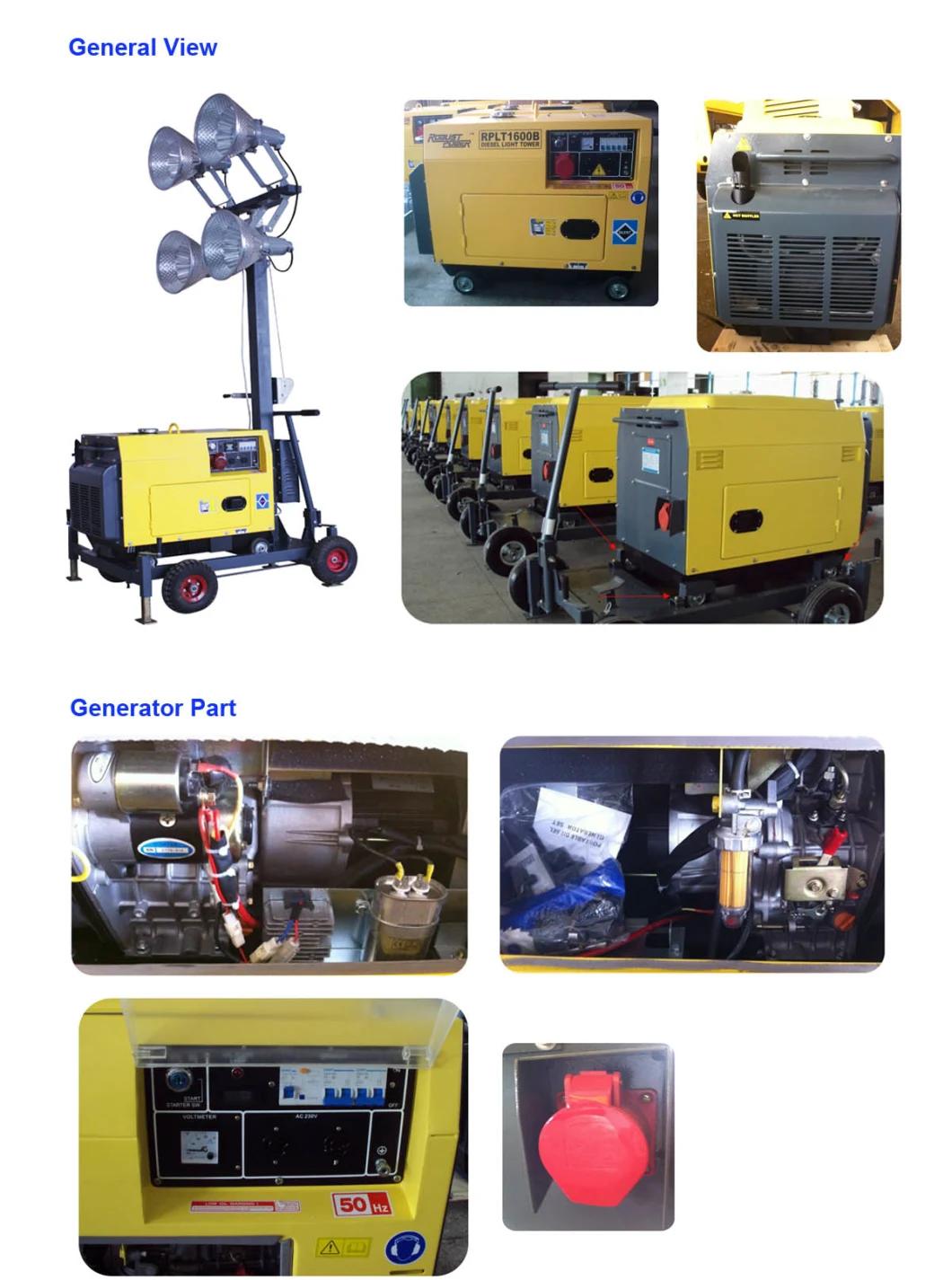

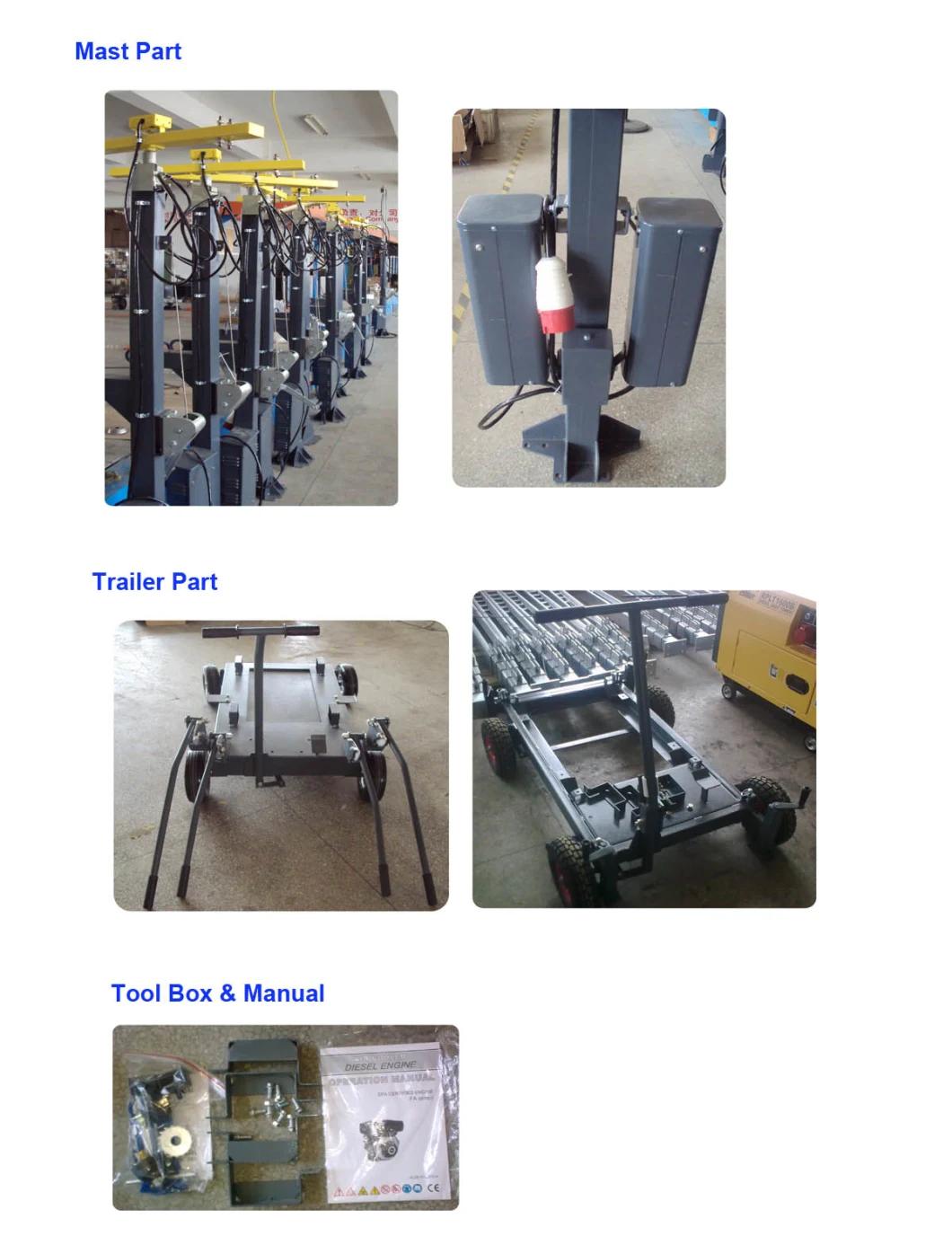

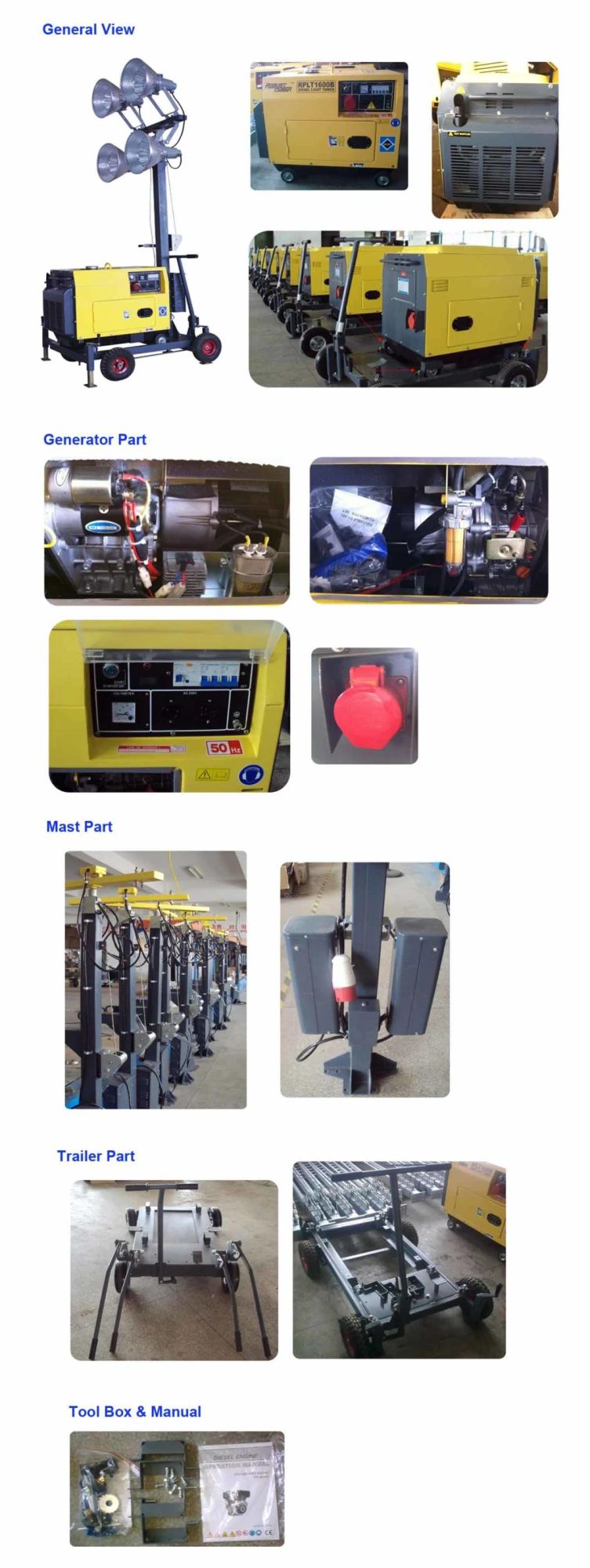

MastMaximum extention of mast 4.8mElevationManualRaising/lowing mastWinch(Mechanical)Stages4Turning angle358 degrees non-continuousLampTotal power of lamps4× 400W /4X1000WType of lampMetal halide lampLight capacity4× 25000 lumen Frequency50Hz/60HZWorking temperature≤ 85Connection Protection indexIP54Characteristics of the generator ModelRPD6500I(Made in China)Generator set Prime power50Hz 4.2kW 60HZ 5.0KW Engine modelRP186FA DieselEngine speed50Hz 3000rpm 60HZ 3600rpmEngine type1 cylinder, 4-stroke, Air-cooledEngine AspirationNaturalAlternator Type2-pole, brushlessFuel tank capacity 15LPrime fuel consumption at 100% load1.85L/hWorking hours8Control systemDigital control panelPower Outlets2Trailer Stabilier Supports4 × ManualAnti-wind capacity≤ 6BrakesManualPacking Dimension & WeightRetracted Dimension 1300mm × 840mm × 2600mmContainer load (20/40FT)12/24(At least)Net weight270kg
