ItemP6 Outdoor LED displayPixel Configuration1R1G1BPhysics Distance Between Pixels6mmPhysics Pixel Density27,777 Pixel/m2Module Size (W x H)192mmx192mmPhysics Pixel / Module32x32=1024Cabinet Size (W x H)576mmx576mmPhysics Pixel / Cabinet96x96=9216Cabinet Weight12kgBrightness>6000cd/m2Viewing Distance>6mPower Consumption (W/m2)MAX 1300; Average 260Driver Mode1/4 scanLed Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC~+50ºCOperating Humidity10%-90%Storage Temperature-40ºC~+60ºCViewing AngleHorizontal:120°; Vertical: 120°Grey ScaleRed, green, blue each 16kDisplay Colors4096 BillionRefresh Rate300HZ-3000HZ adjustableIP RatingFront IP65 waterproof dust-proofDisplay CapabilityVideo, Graphic, Text, flashNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

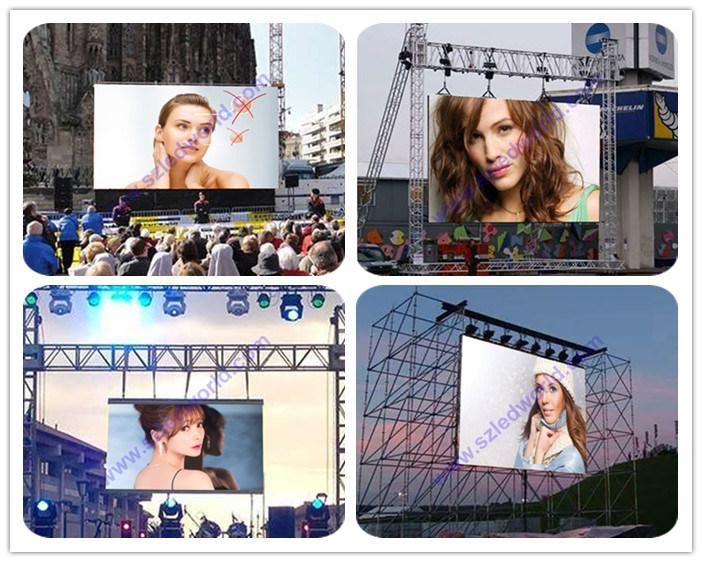

Project case:


Our company:
Shenzhen LED World CO.,LTD  was founded  in 2009, focusing on the LED technology research and LED full color display production ,sales and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology,industry veteran,high-quality,high standards of moden management  team ,a high level of professional and technical developer,has many years of operating  experience and well-trained, a significant number of skilled workers.Company strict implementation of  7 S management standard professional management standards , has passed 3C,CE,FCC,RoHS,ISO9001-2009 quality system certification,reliable quality ,advanced technology,automation of form a complete set of  products and continuous development of our roots . products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand ,Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

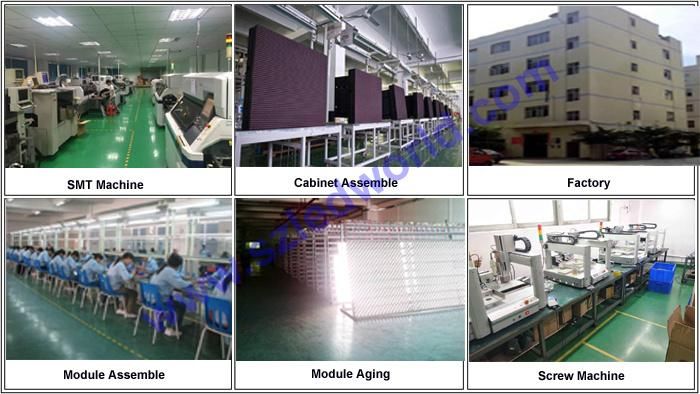

Workshop:

Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

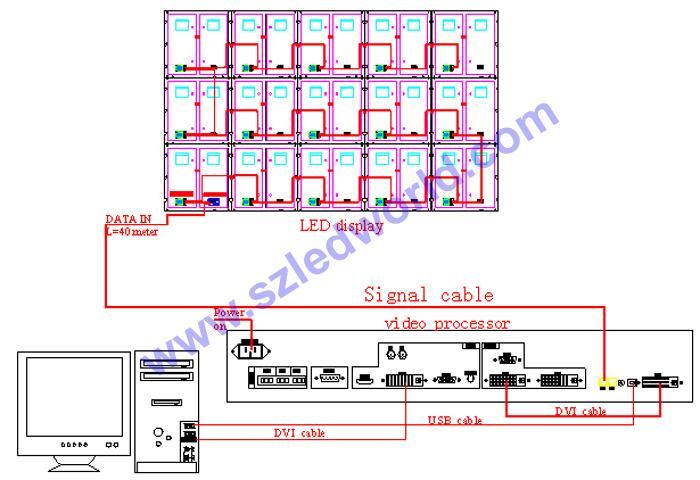

Control system:


Some of our customer:


Certifications:


Package:
