Basic Info.

Model NO. P10 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ETL Refresh Rate >1920Hz Panel Material Steel/ Aluminum Brightness >6500nits Processing 16bit Servicing Front/Rear Control System Nova Viewing Angle 160 Degree Warranty 2 Years LEDs Nationstar Power Supply Meanwell Transport Package Flight Case or Plywood Case Specification 960mmx960mm Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 10000sqm/Month

Product Description

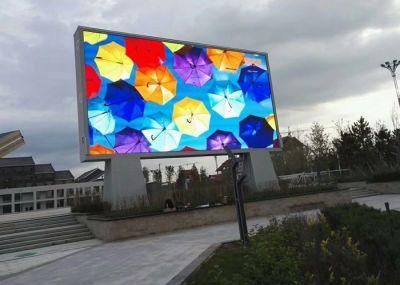

Front Service P10 Outdoor Fixed Led Display with 960x960mm panel

P10 Outdoor Fixed Led Display features
1. Nationstar LEDs, long lifetime with high brightness 6500nits, visible from every direction even face to sunshine directly.
2. SMD technology, LEDs ensure a large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3. Cabinet design lightweight, side handle for easy carrying and assemble job.
4. IP65 waterproof and dust resistance, durable for any weather conditions.
5. Meanwell brand power supply, saving energy and high efficiency.
6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7. Front access makes easy maintenance.
8. There can improve the resolution by changing new module with a smaller pixel, no need to purchase a new screen, this can save lots of costs.

P10 Outdoor Fixed Led Display Specs

	BOF-F-10
Physical Pitch	10 mm
Pixel Configuration	SMD 3535
Pixel Density	10,000 pixels/m²
Module Dimensions (W × H) (mm)	320 × 160
Panel Dimensions (mm)	1280 × 960 ×  150
NO .of Modules Per Panel (W × H)	4 × 6
Physical Resolution of Module (W × H)	32 × 32
Physical Resolution of Panel (W × H)	96 × 96
Panel Material	Steel / Aluminum
Weight(m²)	65/45
Processing	16 bit
Colours	281 trillion
Contrast Ratio	2,000 : 1
Average Power After Energy Saving	90 W/ m²
Max Power After Energy Saving	230 W/ m²
Refresh Rate	>1,920 Hz
Brightness	≥6500 nits
Vertical Viewing Angle	160°
Horizontal Viewing angle	140°
Expected Lifetime	100, 000 Hrs

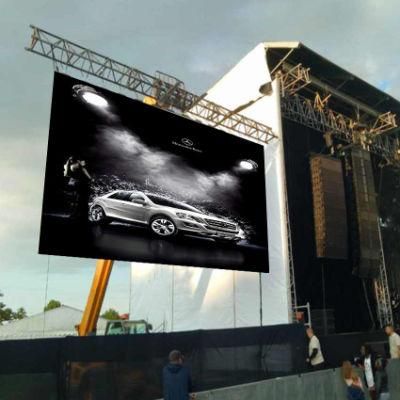

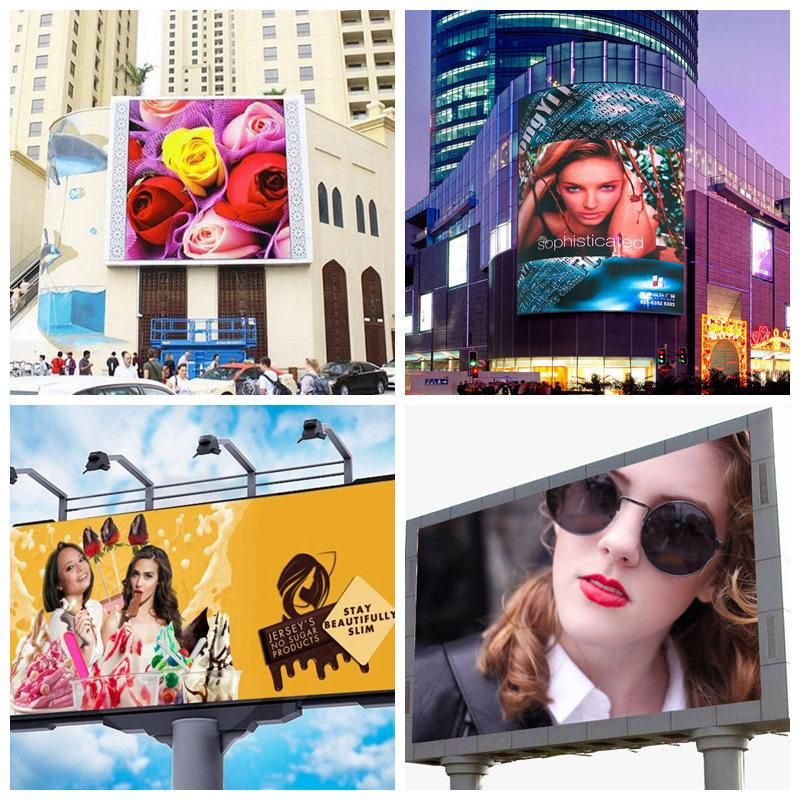

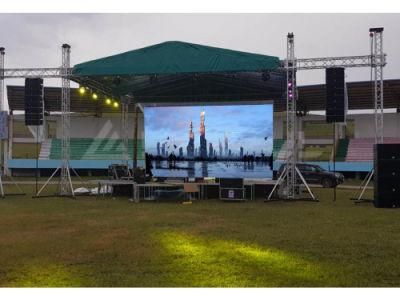

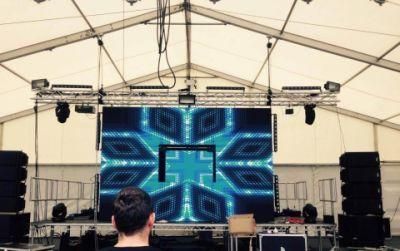

cases

About Us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.



Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.





Why Choose us:
1.Well-experienced: Bako Vision started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens. And every sales team leader has been working in LED display industry over 10 years.

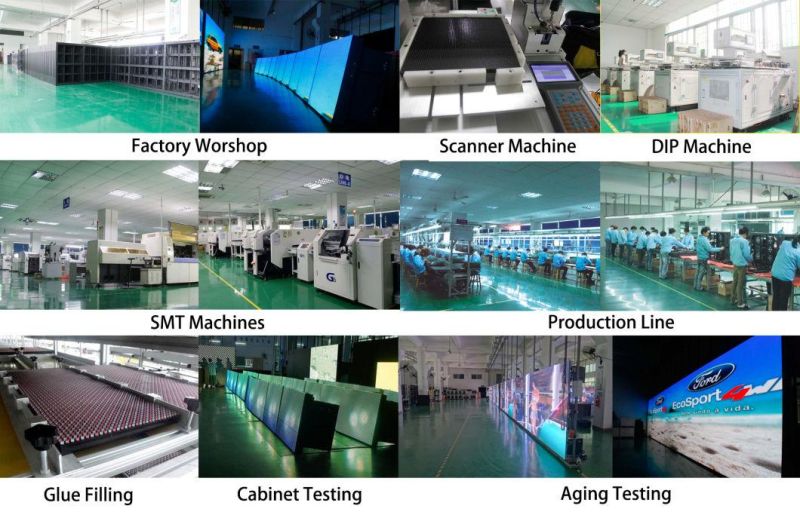

2. Quality Assurance: Equipped with multiple SMT lines and DIP lines and high-speed machines, imported from Panasonic and Samsung. The quality management comply with 7S and ISO9001-2000/ISO14001 product certification systems. At the same time, our products have obtained CCC, CE, ETL, RoHS, FCC, UL.
3. Capacity status: The company's monthly production capacity has reached 800 KK, take P3.91 as an example, it can produce 15,000 square meters per month.
4. After-sales support: The company has set up an after-sales service department. There are many professional technicians engaged in the engineering installation, on-site debugging and training guidance of LED display products. We participate in foreign exhibitions many times every year and we can visit you.




FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.

Q2. What's your payment term?
A: T/T, Western Union, L/C

Q3. Do you provide samples ? is it free?
A: We can supply the sample if we have ready parts in stock
but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 working days for batch order

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.

Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products, we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.

Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. We often attend exhibitions around the world every year
so we can visit you if you need at that time.
