• Model NO.：LM5050-WN60-WW-24V
• LEDs Suppliers：Honglitronic,Osram,Samsung
• LED Chip Brand：Sanan(Epistar optional)
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• Lumen：1200lm,M
• Beam Angle：120degree
• Color：R,G,B,RGB,W,WW,RGB+W+WW
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• Packing：5meter,roll
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Warranty：2-3years
• Transport Package：Carton
• Specification：CE, UL, RoHS, FCC
• Trademark：Leomay
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：50, 000meters,Month

Basic Info.

Model NO. LM5050-WN60-WW-24V LEDs Suppliers Honglitronic/Osram/Samsung LED Chip Brand Sanan(Epistar optional) LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order Lumen 1200lm/M Beam Angle 120degree Color R/G/B/RGB/W/WW/RGB+W+WW PCB Width 10mm PCB material Double-sided coated pure copper Packing 5meter/roll Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Warranty 2-3years Transport Package Carton Specification CE, UL, RoHS, FCC Trademark Leomay Origin Shenzhen, China HS Code 9405409000 Production Capacity 50, 000meters/Month

Product Description

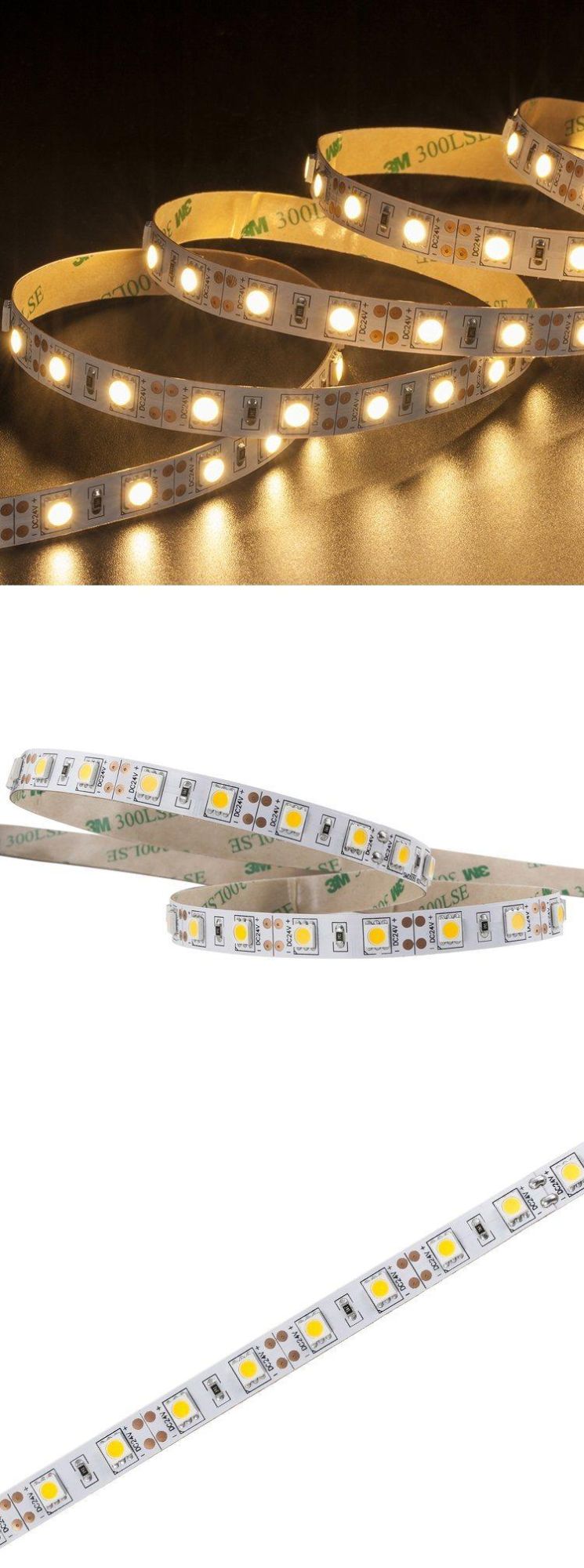

UL Certified Single Color 2700K Dimmable SMD5050 14.4W/M Flexible LED Strip

Product Parameter


Model No.	LM5050-WN60-WW-24V
PCB Width	10MM
LED Qty/m	60leds/m 5050
PCB materials	2Oz Double-sided coated pure copper
Voltage(V)	12V DC
Rated Power(W)	14.4W/M, 72W/5M
Luminous(lm/m)	1250lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	6 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

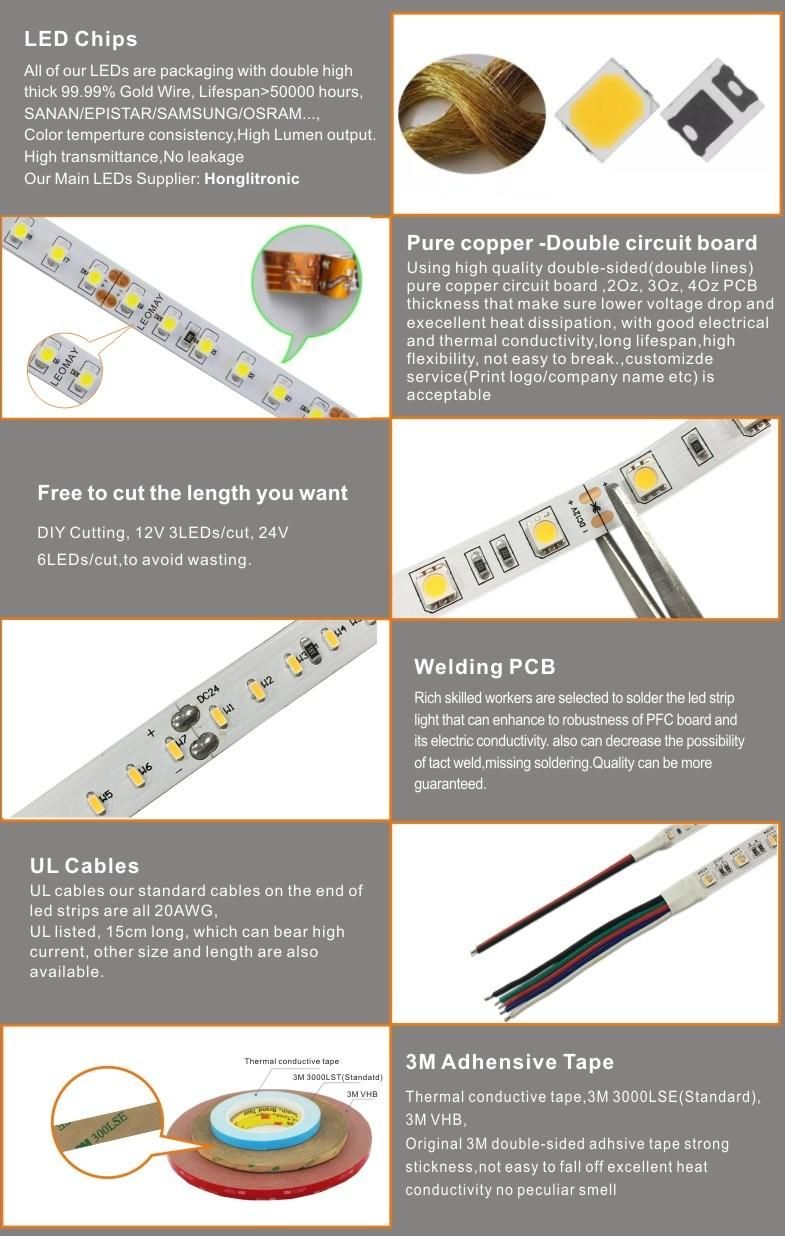

Details Images

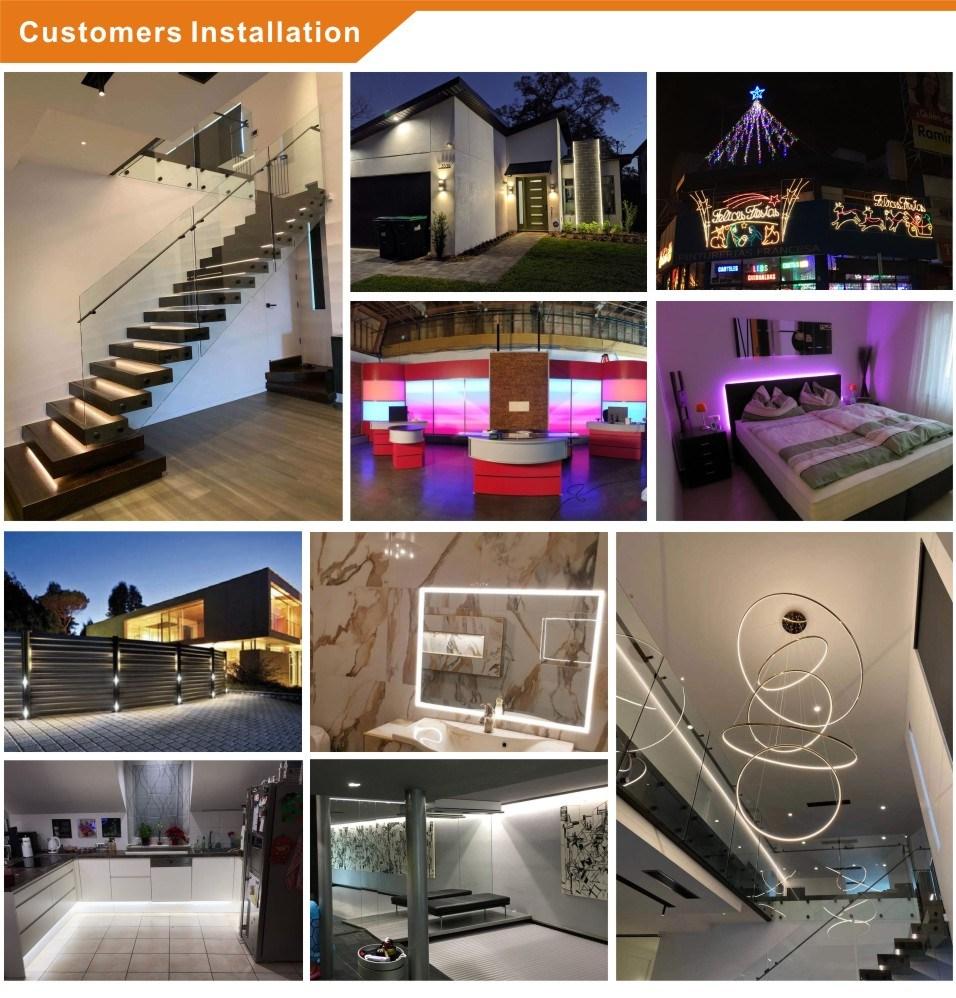

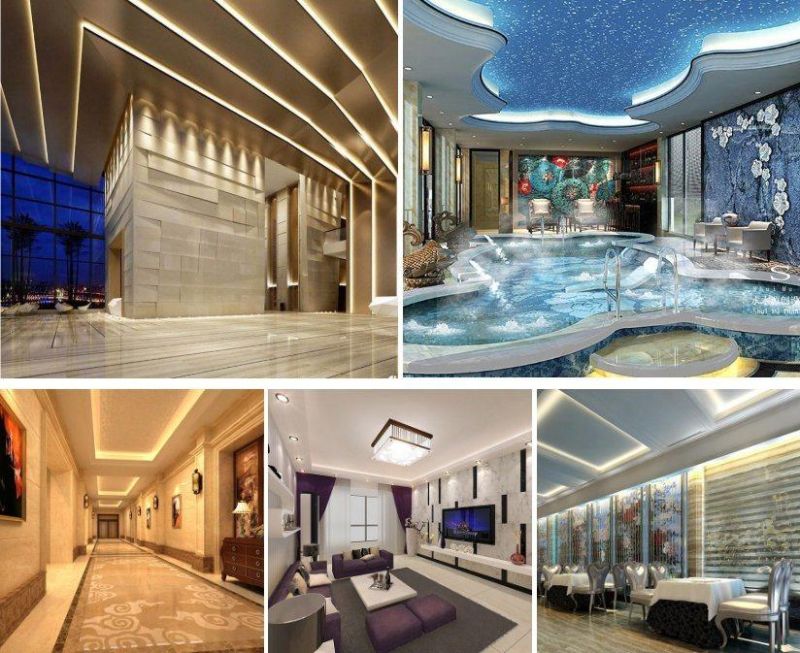

Application

This product can be used for :

1.Decorate shopping mall, super market
2.Club, store, hotel, restaurant, school, library, art gallery, museum
3.Office building
4.Window display lighting, mirror decoration, Bottle Moulding Machine
5.Large scale backlight
6.Indoor and outdoor lighting and for festival decoration



Our Services

1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.




Packing & Delivery

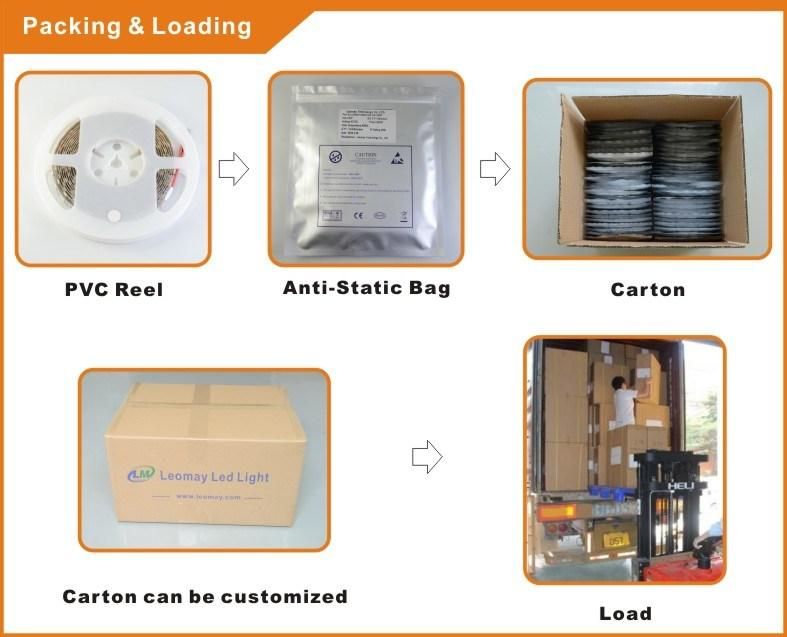

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.

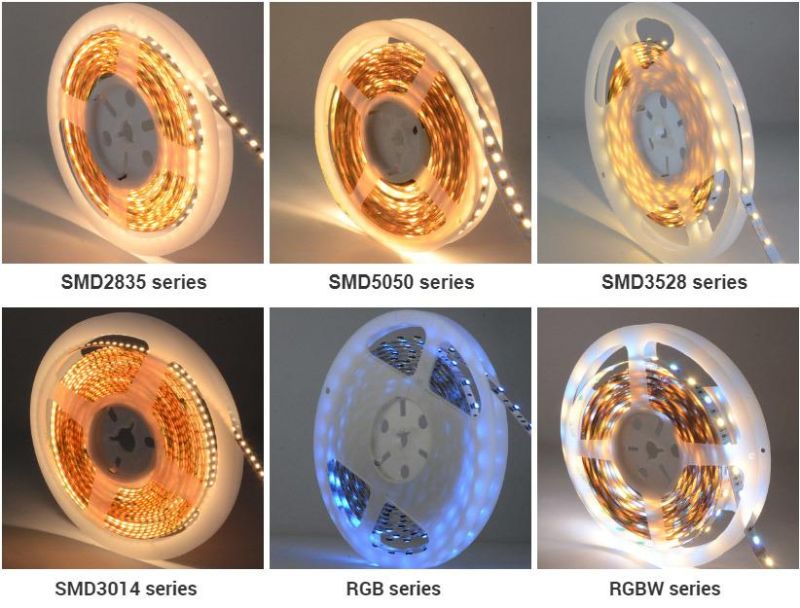

Recommend Products

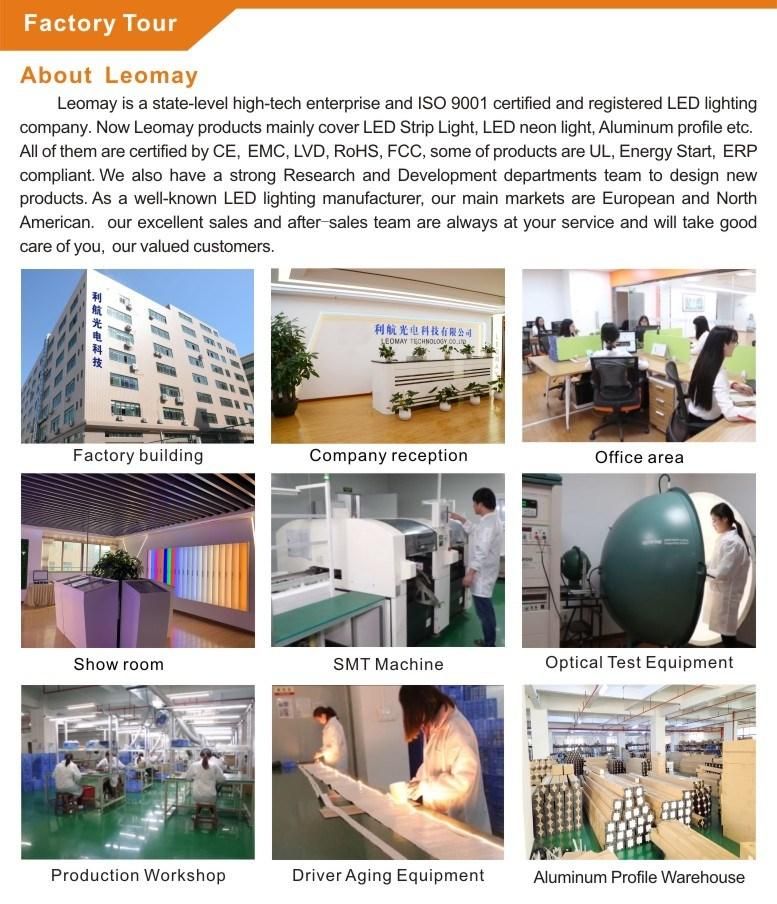

Company Profile





Our Advantages

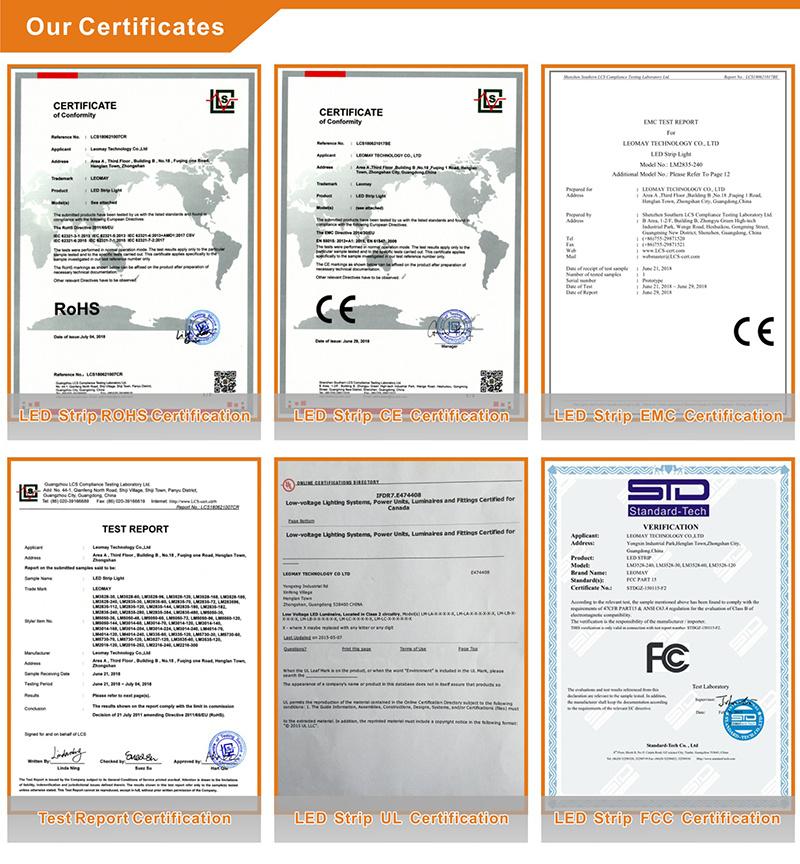

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Eergy saving and environmental conservation, long lifespan.
