• Model NO.：SNSTY-225
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product Name：25W LED La Luminaria Solar Integrada
• Model No.：Snsty-225
• LED Power：25W
• Solar PV：50W
• Lithium Battery：18ah
• Lumen：2500-2700lm
• Mounting Height：5-5.5m
• Working Model：Timer+Motion Sensor+APP
• Warranty：5 Years
• Certificate：Ce
• Transport Package：Strong Carton
• Specification：25W LED 50W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：5000 Units,Month

Basic Info.

Model NO. SNSTY-225 Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product Name 25W LED La Luminaria Solar Integrada Model No. Snsty-225 LED Power 25W Solar PV 50W Lithium Battery 18ah Lumen 2500-2700lm Mounting Height 5-5.5m Working Model Timer+Motion Sensor+APP Warranty 5 Years Certificate Ce Transport Package Strong Carton Specification 25W LED 50W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity 5000 Units/Month

Product Description

25W LED La Luminaria Solar Integrada (panel, inversor, bateria, luminaria) (SNSTY-225)

----Main feature of SINOLTECH All in one LED solar street light:
1) Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
    Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2) Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3) Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of whole product.
4) Waterproof structure, safe and reliable.
5) Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6) With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.
----Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

----Specification Data:

Solar Panel	Max Power	18V50W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V 25W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	2600LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 10 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	5-6m
Space between light	range(m)	18-20m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years

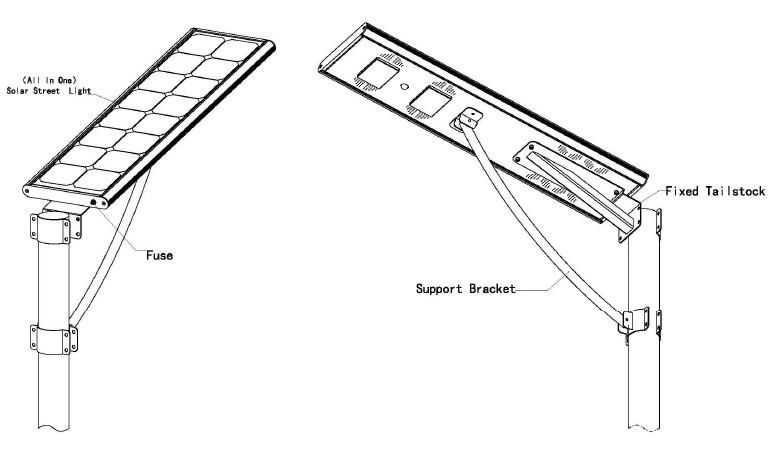

---Structure:

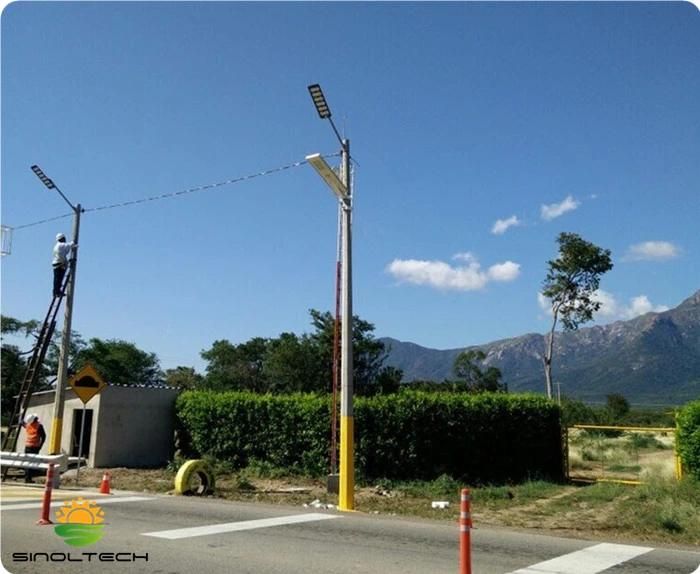

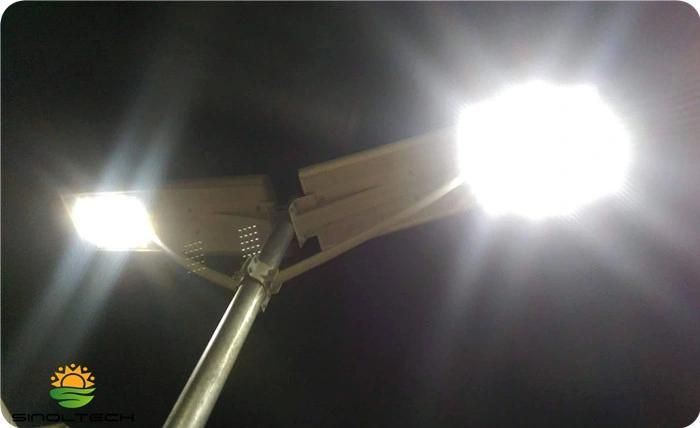

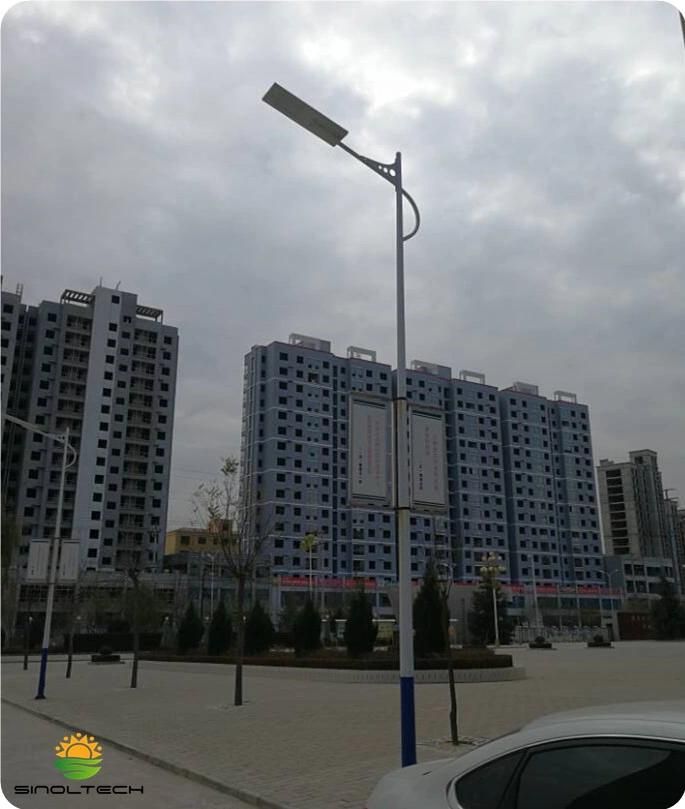

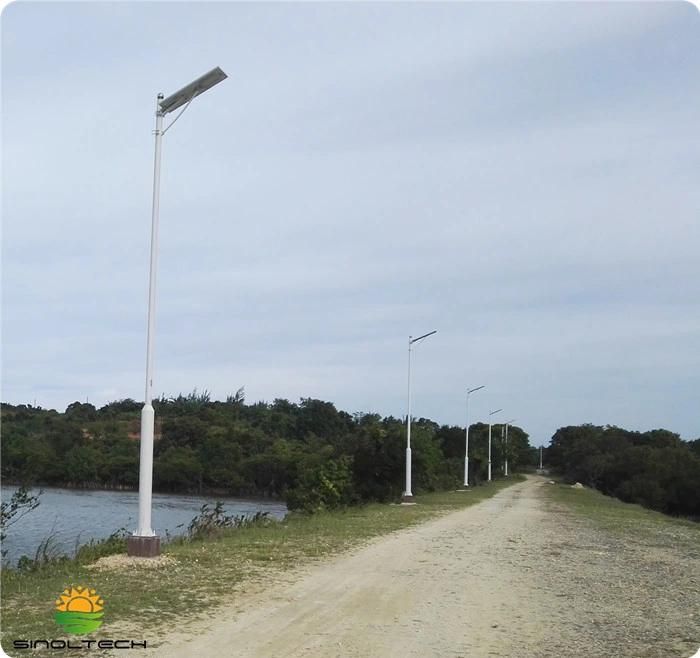

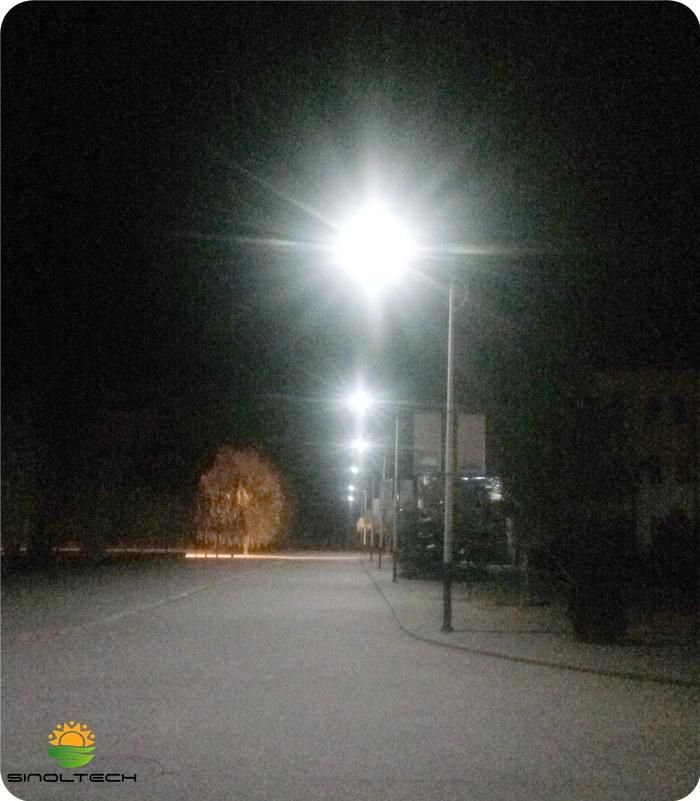

---Project Photos:
