Basic Info.

Model NO. HM24V-SMD3528120 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.

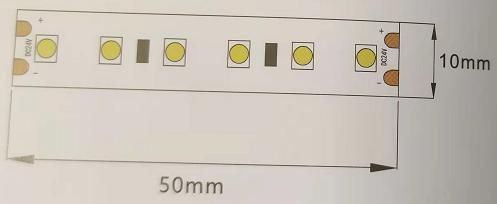

Product Dimension

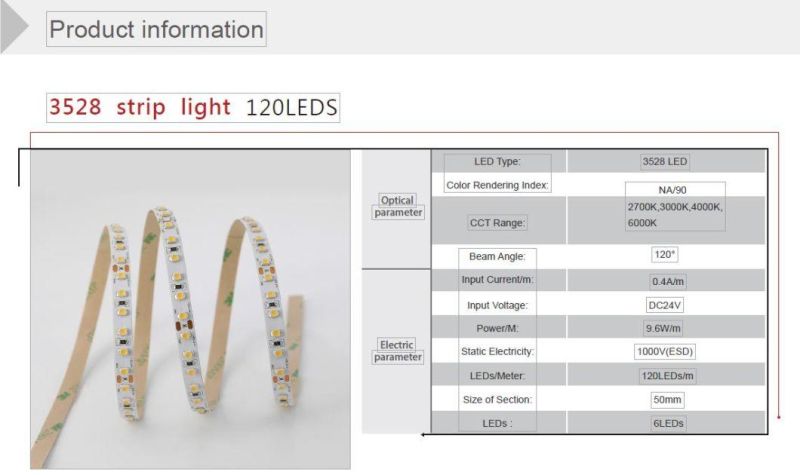

Optical parameter
LED Type: SMD3528
Color Rendering Index: 80
CCT Range:  2700K, 3000K, 4000K, 6000K
Beam Angle: 120°
Light Efficiency: 83.3/84.4/85.4/86.4Lm/w
Lumen Output/meter: 800Lm/m (267Lm/ft)
                                   810Lm/m (270Lm/ft)
                                   820Lm/m (273Lm/ft)
                                   830Lm/m (277Lm/ft)



Electric parameter

Input Current/m: 0.40A/m
Input Voltage: DC24V
Power/M: 9.6W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 120LEDs/m
Size of Section:  50mm
LEDs of Section: 6 LEDs

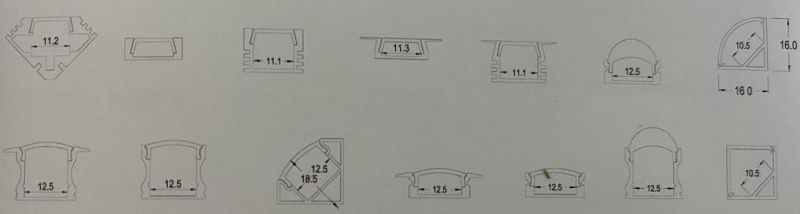

Recommended Profiles
