Low Consumption Indoor Full Color P2.5 SMD2121 LED Screen
Quanzhou Hooshine Optoelectronic Technology Co., Ltd.Base Info
Description
P2.5 SMD2121 Led Screen
Pixel Information
Pixel Pitch
2.5mm
Technology
SMD2121
Pixel Density
160000 Pixels/m2
Pixel Configuration
1R1G1B

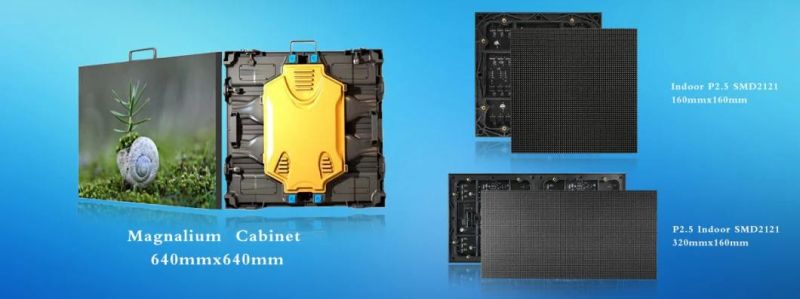

LED Module
Module Size
320 mm (Width) × 160 mm(Height) = 0.0512/m2
Module Resolution
128 pixels(Width) × 64 pixels(Height) = 8192pixels
LED Cabinet
Cabinet Size
640mm(Width) × 640mm(Height) = 0.4096/m2
Cabinet Resolution
256Pixels(Width) × 256 Pixels(Height) = 65536 Pixels
Total QYT Module Per Cabinet
2 Modules(Width) × 4Modules(Height) = 8 Modules
Cabinet Weight
5.4kg
Cabinet Material
Die-casting ,Iron , aluminum or Magnesium
Power
Input Voltage
100-240V AC, 50/60Hz
Max Power Consumption
780 Watt/m2
Avg. Power Consumption
380 Watt/m2
Viewing
Brightness
≥600 to 1000cd/m2
Brightness Uniformity
Luminance Discrepancy < 5%
Colors
16777216
Grey Scale(Level)
4096
Slot Between Neighboring Modules
< 1 mm
Best Viewing Angle
Horizontal:160°,Vertical:160°
Viewing Distance
5 - 300 meters
Ambint Conditions
Temperature Range
Storage:-40deg. to +85deg.; Working:-20deg. to +60deg
Operating Humidity
10%90%RH
Ingression Protection Grade
Front
Processing
Scanning Mode
1/32Scan
Refresh Frequency
1920HZ-3840HZ, Adjustable
Signal Input
DVI, Composite Video for Live Video
Other
Life Span
100,000 Hours
Factorty Tour
FAQ
Q1: Where is your nearest Sea Port?
A: Our nearest sea port is at Xiamen,Fujian Provice
Q2: What's the brand of your diode chip?A: Our led lamps are by Sanan,Kinglight,Silan,Epistar, Nation Star ,Cree etc.
Q3. Can I order a sample for led display screen?A: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.
Q4. How do you ship the goods and how long does it take to arrive?A: For large quantity,you can choose sea freight.For small order,you can ship by DHL, UPS, FedEx or TNT.Of course,you also can choose it by airline. It usually takes 3-7 days to arrive by express.
Q5. Is it OK to print our logo on led screen product?A: Yes,we can print your logo according your request.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.002%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity.
If the screen has serious damaged ( e.g. The whole cabinet couldn't work normally) caused by human, we would mend it with charge based on the cost
