Item
PH25 Outdoor LED display
Pixel Pitch(mm)25mmPixel density(/m2)1600LED TypeDIP346Viewing angle:H:120°,V:60°Brightness(nits)≥4500Drive MethodStaticColor Depth(nits)16384Refresh Rate(Hz)3000Module Size(mm)200×200×28.5Cabinet Size(mm)1200×1000×154Cabinet MaterialIron Sheet MetalCabinet weight(kg)70Voltage110/240VAverage.power(W / m2)200Max.power(W / m2)600IP GradeIP65/IP54Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCCC,CE,RoshPacking & delivery: Wooden/cartoon cases
Warranty:2 years

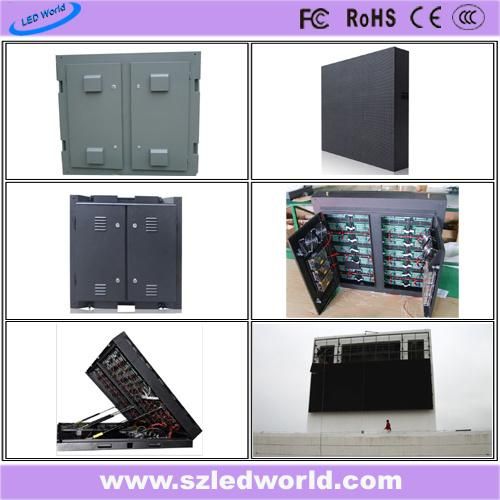

Product detail:

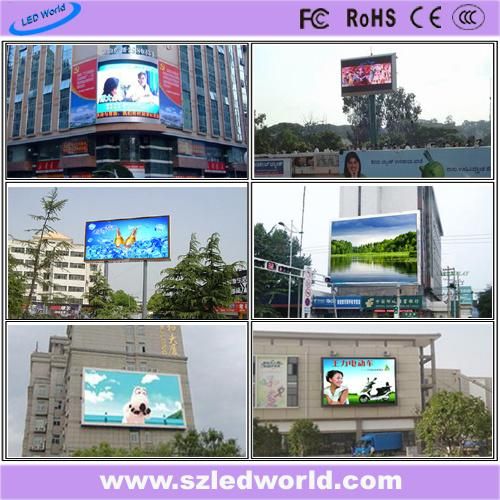

project case:


Workshop and package:


Company Information:
    Shenzhen LEDWORLD Co.,Ltd is a professional manufacturer engaging in the research and development, production, sales and service of LED display system.

    With the continuous and stable development in the past 8 years, Shenzhen LEDWORLD Co.,Ltd has showed strong competition in the market both in products quality and service. 50 sets of advanced equipments including latest automatic optic-electronic test system are furnished in product line.the output is more than15kk LED each month.

    Our products are CE approved, ROHS compliant, C-TICK and FCC certificated. We had provided more than 3000 LED displays for more than 50 countries and regions,and gained a great reputation from customers.

    We grow up together with customers, and will be highly appreciated if any feedback from customers, which will be a great help for us to improve our products. Let us come togher to create a lasting relationships, and let us help you in this business well.
