| P6.67mm LED Video Display For Stage Performance |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD3528 | 120-140mcd | 620-625nm | 140º/65º |
| 3 | Green LED | SMD3528 | 360-435mcd | 520-525nm | 140º/65º |
| 4 | Blue LED | SMD3528 | 80-100mcd | 470-475nm | 140º/65º |
| Module Specification |
| 1 | Pixel Pitch | 6.67mm |
| 2 | Pixel Configuration | 1R1G1B(3in1) |
| 3 | Module Resolution | 48 x 24 pixels |
| 4 | Module Pixles | 1152 pixels |
| 5 | Module Size | 320mm X 160mm |
| Cabinet Specification |
| 1 | Cabinet Size(W X H X D) | 640mm x 640mm x 85mm |
| 2 | Cabinet Resolution(dot) | 96 x 96 pixels |
| 3 | Module Quanity (pcs) | 8pcs |
| 4 | Cabinet Pixels | 9216 pixels |
| 5 | Pixel Density | 22478 pixels/m2 |
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
| 7 | Cabinet Weight | 10.5kg per cabinet |
| Whole Screen Specification |
| 1 | Screen Brightness | ≥1500cd/m2 |
| 2 | Driving Method | Constant current |
| 3 | Best Viewing Distance | 6.67m - 30m |
| 4 | Max. Power Consumption | ≤1000W/m2 |
| 5 | Average Power Consumption | ≤500W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1200Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | For indoor use only |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius |
| Humidity:10%~90% RH |
| 20 | Control Mode | Synchronous display with control PC by DVI |
| 21 | Control System | DVI video card + full color control card + fiber system( optional) |
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 23 | Interface | Standard Ethernet |
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| 25 | Certification | CE-EMC, CE-LVD, FCC, RoHS |

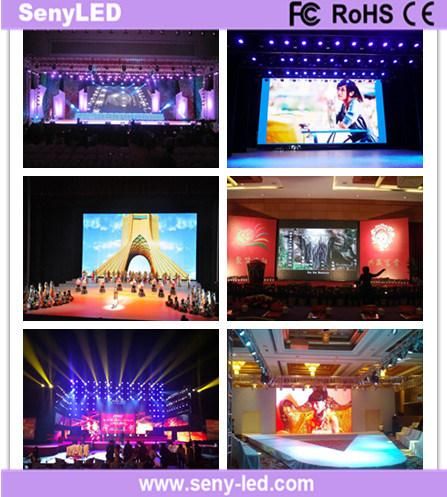

Project cases:

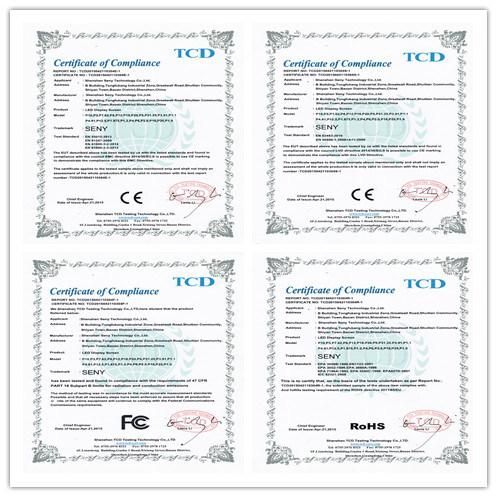

Certification:

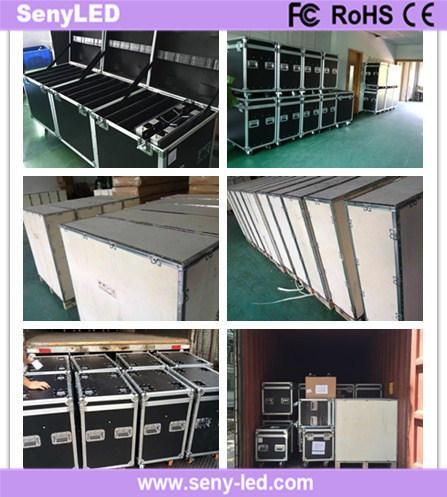

Packaging and Delivery:
1. High quality, High defination, High refresh.
2. Superior uniformity, Good display effect.
3. 2 years warranty, best after-sales service.
4. Video, flash, animation, graphic, text...etc available.
5. Factory visiting and inspecting is welcome.
6. OEM service offered.
