Indoor P2.5 High Definition Full Color Flexible LED Module Display Screen for Advertising
Shenzhen Chuangkaiguang Co., Ltd.Base Info
Description
INDOOR PH2.5MM FULL COLOR FLELXIBLE LED SCREEN
No.
PARAMETER
SPECIFICATION
1
Pixel Pitch(mm)
2.5
2
Pixel Density
160000/m2
3
LED Type
SMD2020
4
LED Wave Length(nm)
R:620-625/G:515-520/B:470-475
5
LED Luminous Intensity(mcd)
R:210~370/G:420~650/B:85~110
6
Viewing Angle
H:160°/ V:160°
7
Bending radian
Centre bend≤120°/Opp angle bend≤120°
8
Brightness
1200cd/m2
9
Drive Method
1/32
10
Signal interface
HUB75
11
Color Depth
4096(14bits)
12
Refresh Rate(Hz)
≥1920
13
Frame Rate(Hz)
≥60
14
Contrast ratio
3500:1
15
Module Size(mm)
320*160
16
Cabinet Size (mm)
Customizable
17
Power Supply
5V 40A
18
Voltage(V)
AC 110~240V
19
Avg. Power Consumption
350W/m2
20
Max. Power Consumption
700W/m2
21
Service Access
Rear service
22
IP Grade
IP30
23
Operating Temp/Humidity
-20ºC~50ºC, 10~90%RH
24
Storage Temp/Humidity
-40ºC~60ºC, 10~90%RH
25
Lifetime(Normal Temp)
≥100000H
26
System Controlle
Synchronization with PC
27
Compliant Standard
CCC / CE / RoHS

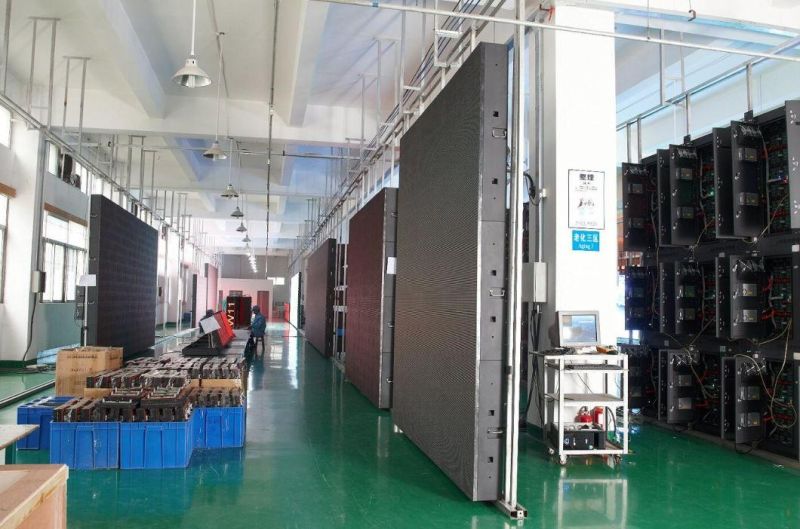

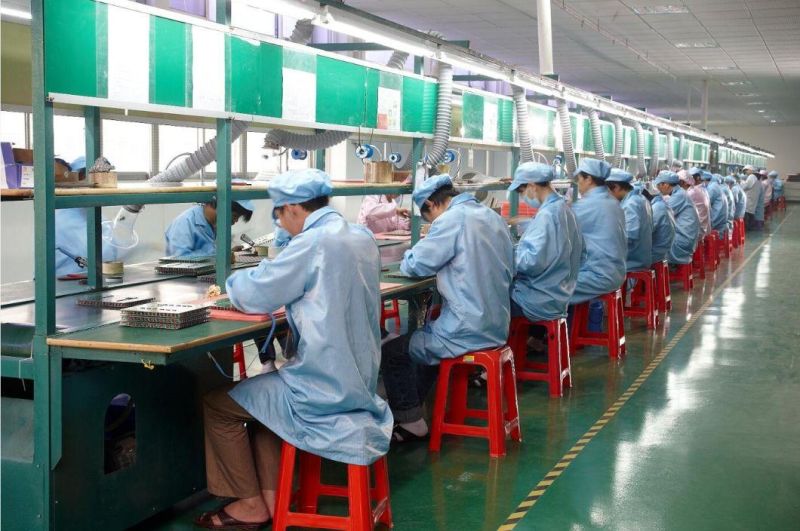

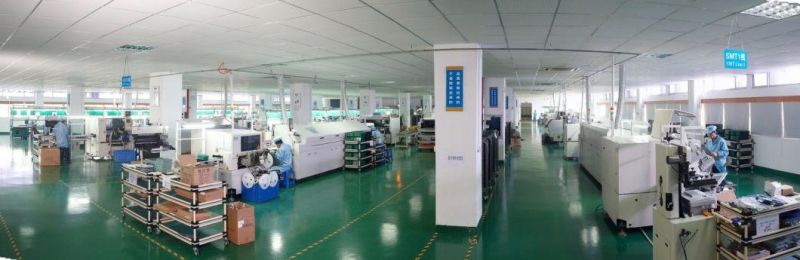

CKGLED FACTORY WORKSHOP:
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

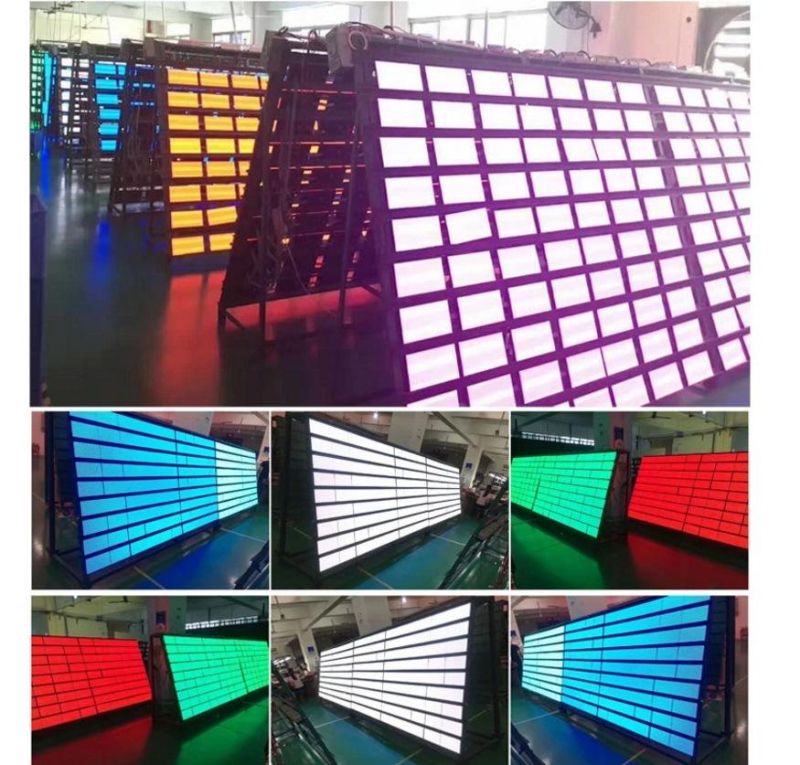

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
