P8 Outdoor Full Color Advertising LED Display Panel LED Module

Shenzhen Chuangkaiguang Co., Ltd.

Base Info

Description

Pixel pitch8mmPixel configurationSMDModule size256mm*128mmPixel density15625 dots/sqmModule pixel32dots*16dotsModule resolution512dotsDriving method1/8 constant driving
Cabinet specifications:
 Cabinet size768mm*768mm*150mmModule Qty18pcsCabinet resolution128dots*96dotsCabinet pixel12288dotsCabinet weight37kg power consumption(w/sqm)AVE.300 / MAX.900

SCREEN PARAMETERS:No.ParameterSpecification1Pixel Pitch8mm2Pixel Density15625pix/sqm3LED TypeSMD35354Viewing Angle(H)120°,(V)60°5Brightness ≥6500cd/sqm6Drive Method1/87Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 300W/sqm16Max. Power Consumption900W/sqm17Assembly precision between PCB≤1 mm18Service AccessFront /Rear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

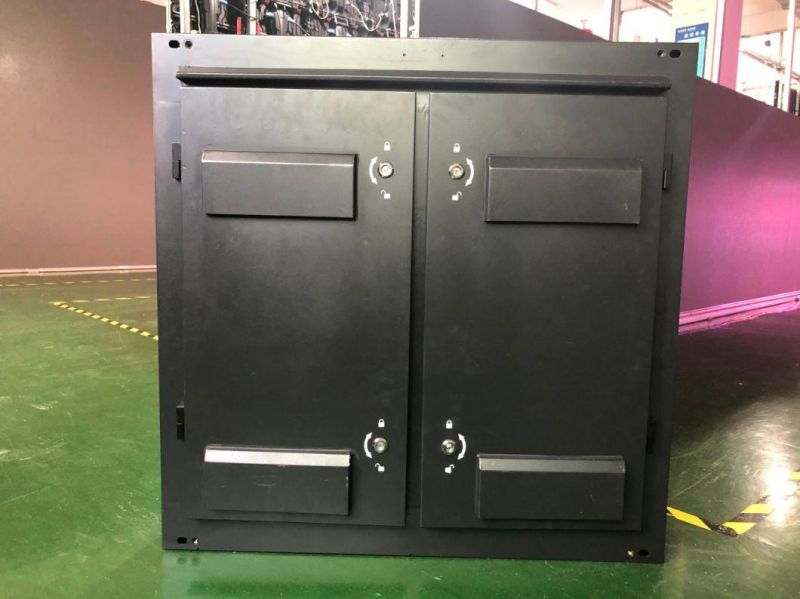

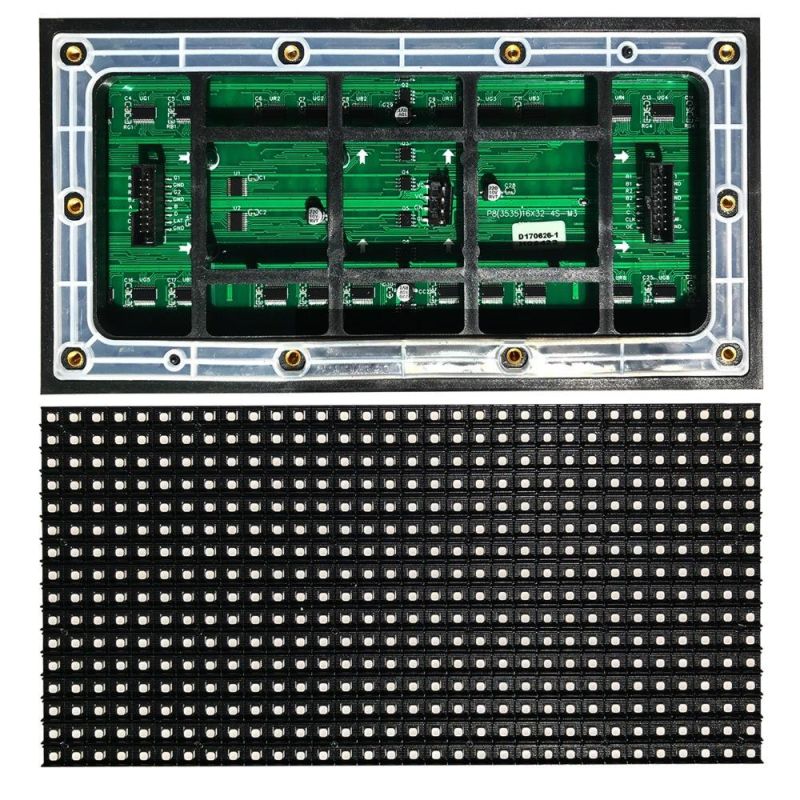

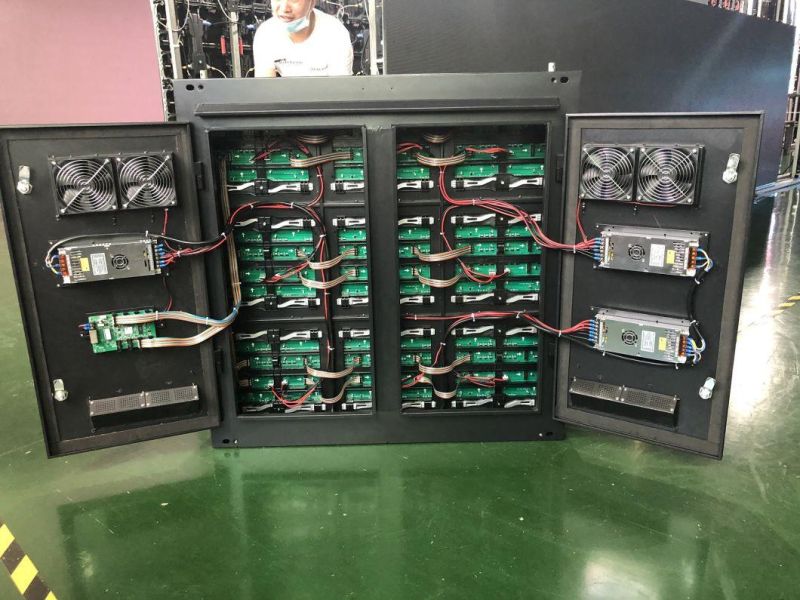

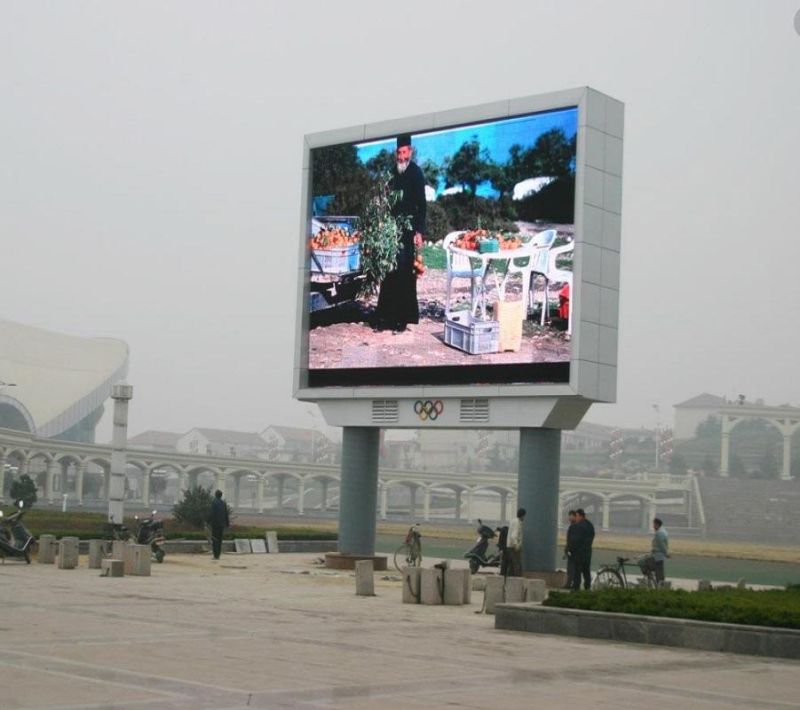

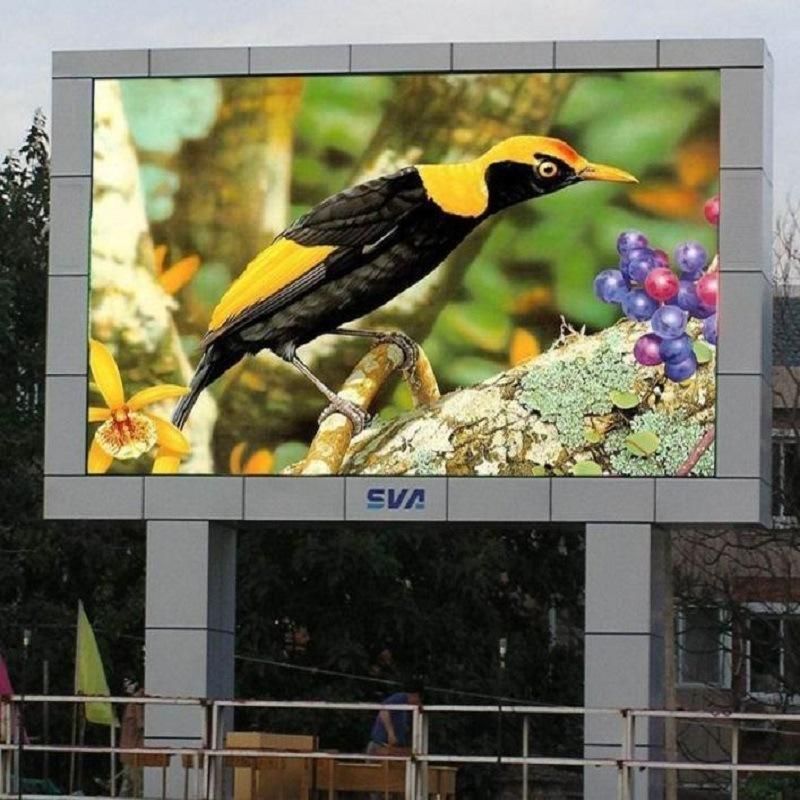

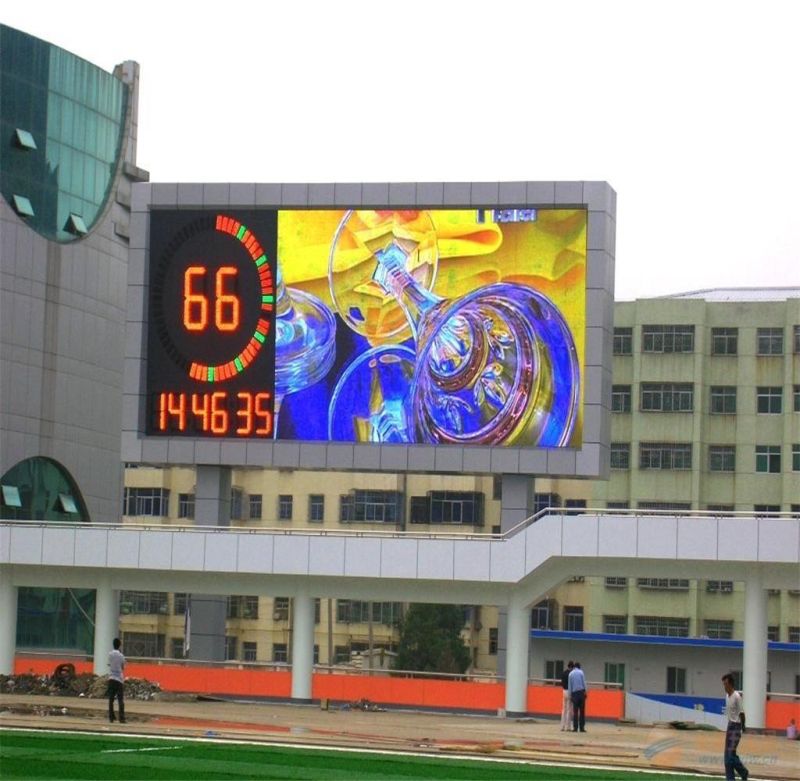

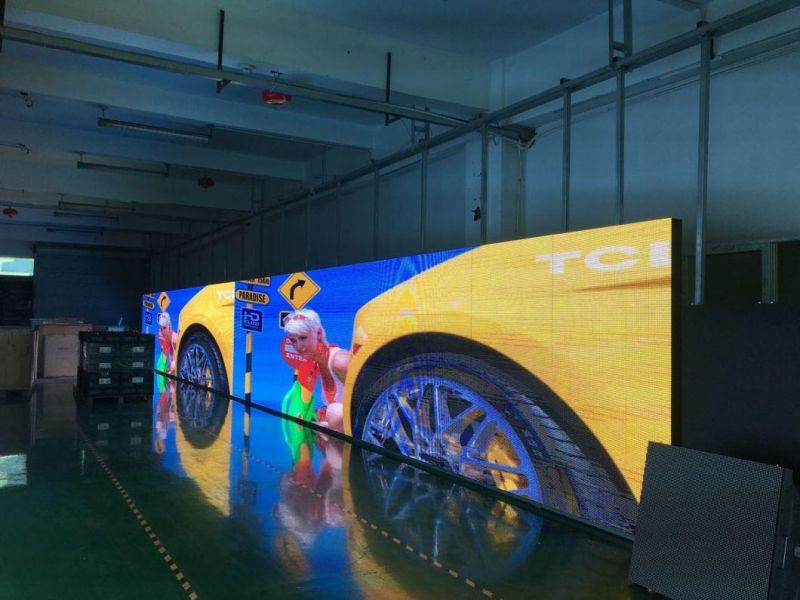

PRODUCT PHOTOS:

P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module
P8 Outdoor Full Color Advertising LED Display Panel LED Module

Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms

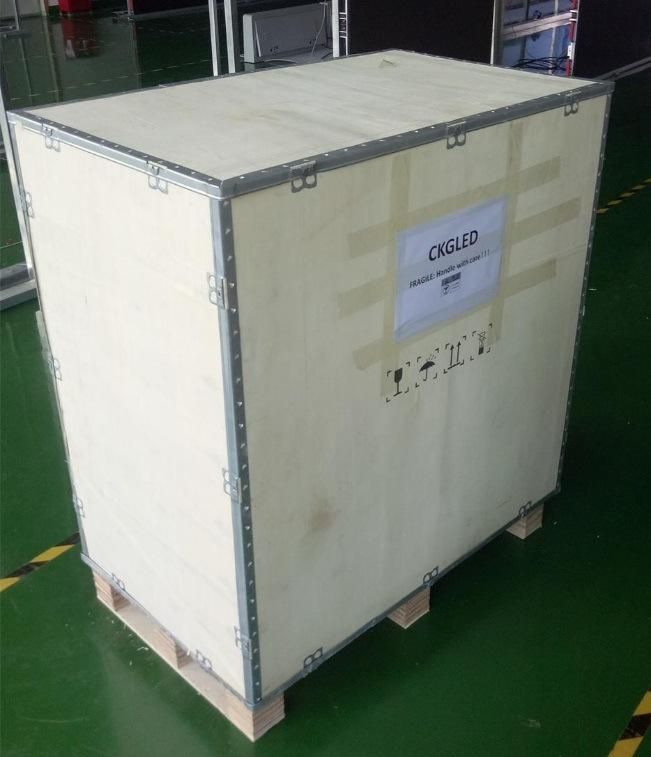

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
