Indoor LED Display Full Color P4 mm Flexible LED Module

PRT Optoelectronic Co., Ltd.

Base Info

Description

P4 SMD2121 Indoor full Color soft LED ModulePixel pitch4.0 mmPixel Configuration1R1G1BLED componentSMD2121Size of module240mm x 120mm x 1.6mm (thickness)Resolution of module60x30 pixelsBrightness>1000cd/sq.mDensity62500 dots/sq.mBest viewing angle160° /160°Best viewing distance2-20MMaximum power consumption16W/moduleDriving method1/15 scanControl methodSynchronizationGray scale65536Color temperature3200-14000kUniformity99%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3840HzIP gradeIP31Life Span50,000 hoursData transafer methodRJ45Pratical standardCCC TUV-CE ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

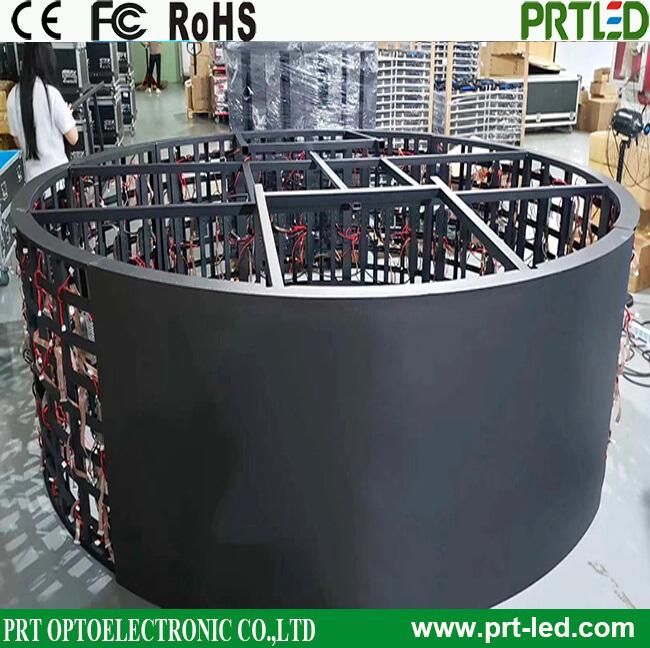

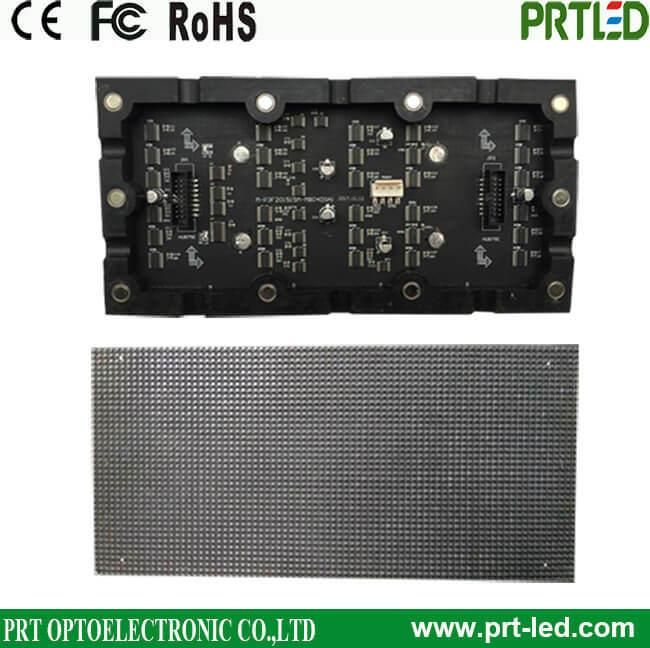

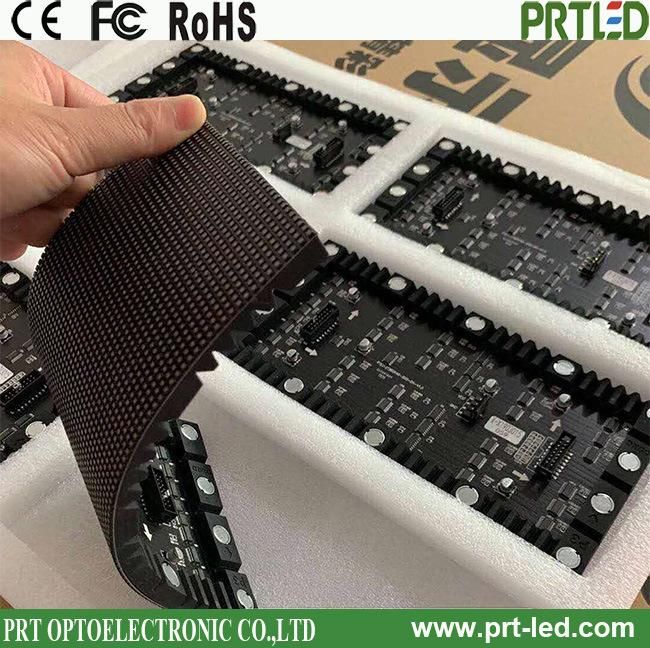

More pictures for reference:

Indoor LED Display Full Color P4 mm Flexible LED Module

Indoor LED Display Full Color P4 mm Flexible LED Module

Indoor LED Display Full Color P4 mm Flexible LED Module
