Basic Info.

Model NO. 3mm Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Module Size 192*192mm Module Resolution 64*64dots Cabinet Size 576*576mm Cabinet Resolution 192*192dots Screen Brightness 1500bits Controller Nova Maintenance Front/ Rear Service Frame Frequency 60Hz Compliance Ce/RoHS/FCC Transport Package Wood Case Specification 576*576 Trademark CKGLED Origin Shenzhen, China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

V SERIES PRODUCT FEATURES:

. Quiet fan design, excellent heat dissipation.

. Sidelocks design for better consistency and seamless assembly.

. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

. High-performance metal plate cabinet, concise cable.

. The sealed-type back cover, effectively prevent wrong operations from the amateur.



PRODUCT SPECIFICATIONS:


NO.	Item	Parameters
1	Model	V03
2	Pixel Pitch (mm)	3
3	Physical Density (dot/m2)	111111
4	LED Configuration	1R1G1B
5	LED Type	SMD2121
6	Module Size (mm x mm)	192x192
7	Module Resolution (PX x PX)	64*64
8	Module Power Consumption (W)	19
9	Drive Mode	1/32 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	140
11	Vertical Viewing Angle (Deg)	140
12	Brightness (cd/m2)	1500
13	Grey Scale	14
14	Refresh Rate (Hz)	≥1920
15	Cabinet Resolution (PX x PX)	192*192
16	Cabinet Max Power Consumption (W)	560
17	Cabinet Average Power Consumption (W)	230
18	Cabinet Size (mm x mm)	576*576
19	Cabinet Weight (Kg)	26
20	Cabinet Thickness (mm)	120
21	Cabinet Material	Steel/Aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP33
26	Working Environment	Indoor
27	Working Temperature (ºC)	"-20°- +40°
28	Operation humidity (RH)	10%-90%
29	Certificates	CCC, CE,RoHS

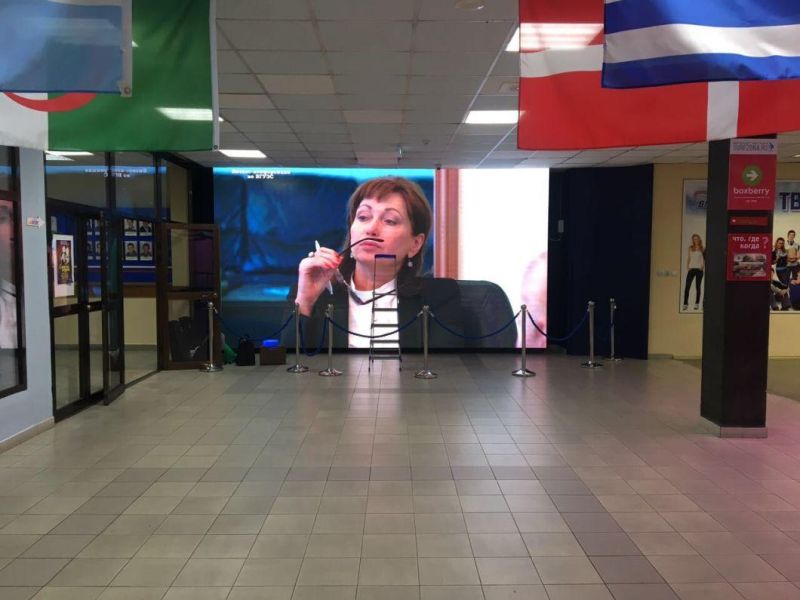

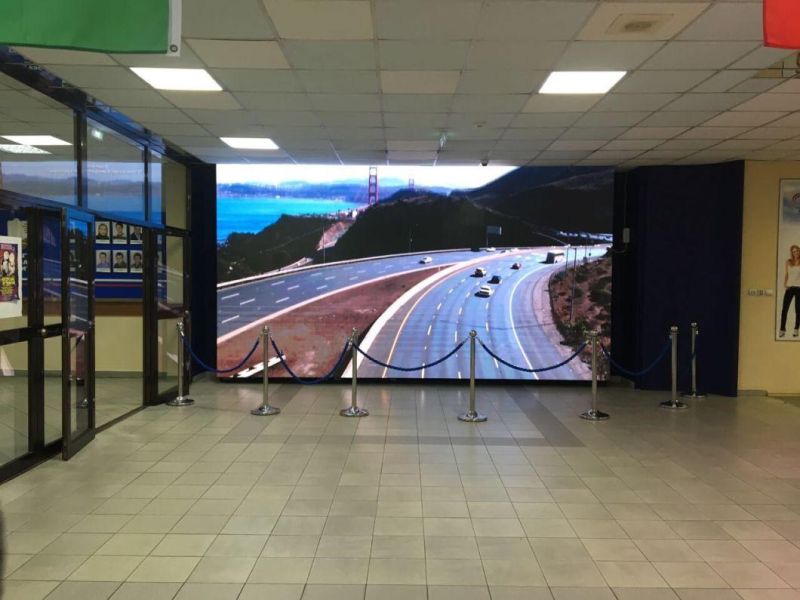

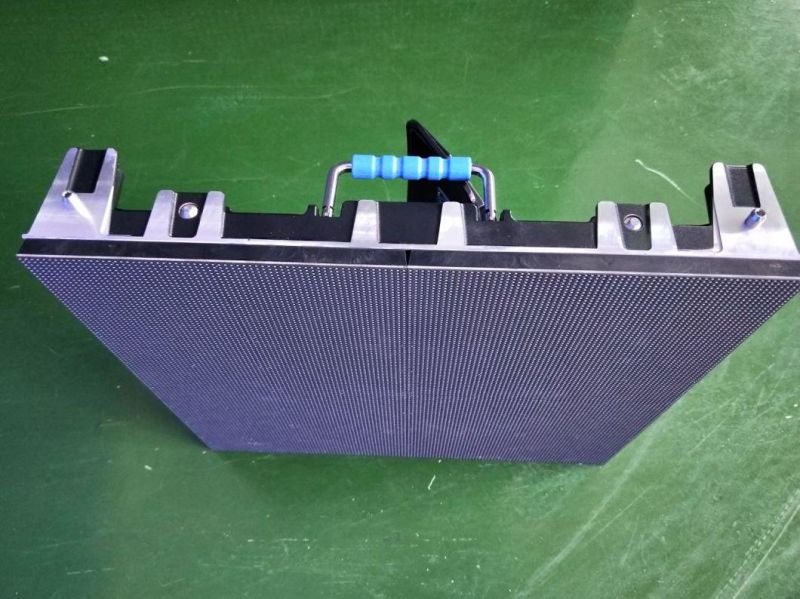

Product Photos:











Our service:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
