P20mm Outdoor LED Screen Double-Colun for Fixed Advertising

Shenzhen Chuangkaiguang Co., Ltd.

Base Info

Description

Pixel pitch20mmModule size320mm*160mmModule pixel16dots*8dotsDriving methodstatic constant drivingPixel configurationDIP 1R1G1BPixel density2500 dots/sqmModule resolution128dots


Cabinet specifications:Cabinet size1280mm*960mm*150mmCabinet resolution64dots*48dotsCabinet weight61kgModule Qty24pcsCabinet pixel3072dotspower consumption(w/sqm)AVE.200 / MAX.600

Screen parameters:No.ParameterSpecification1Pixel Pitch20mm2Pixel Density2500pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness≥6000cd/sqm6Drive Methodstatic constant current scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥3500 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤55kg/sqm14VoltageAC 220/110V±10%,50Hz15Ave. Power Consumption200W/sqm16Max. Power Consumption600W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

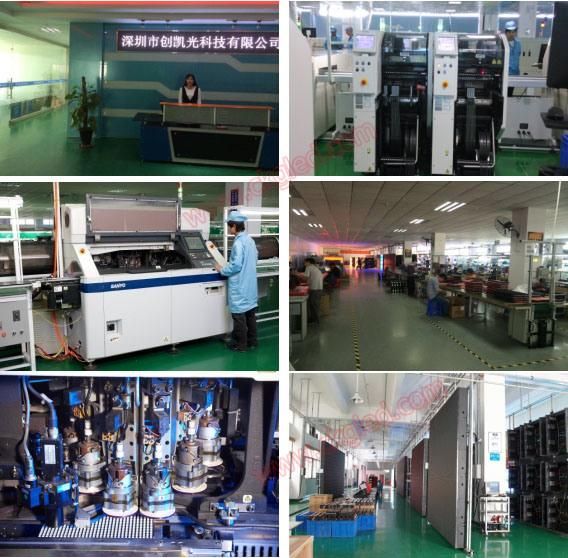

WORKSHOP:

P20mm Outdoor LED Screen Double-Colun for Fixed Advertising

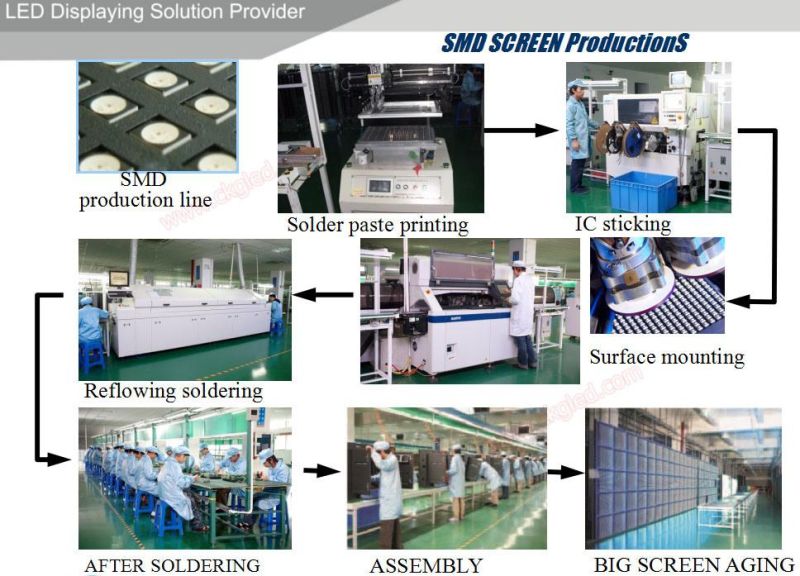

PROCESS:

P20mm Outdoor LED Screen Double-Colun for Fixed Advertising

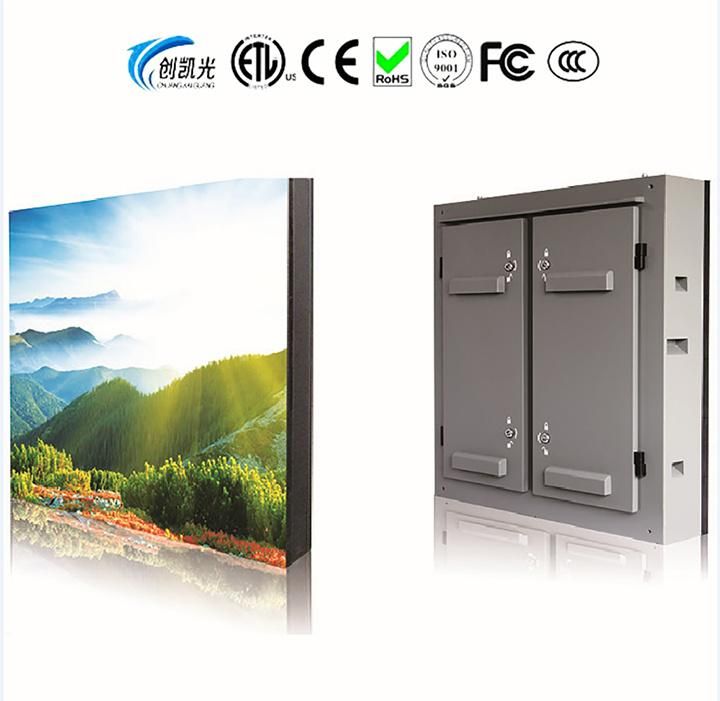

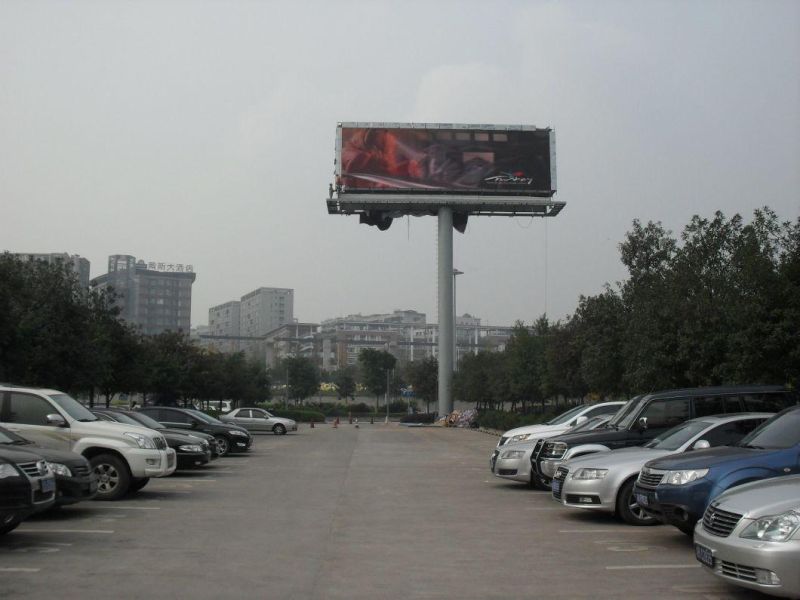

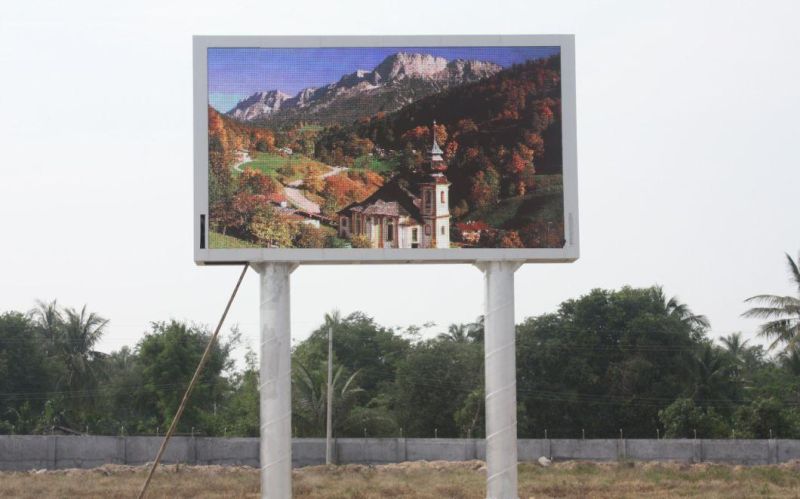

Product picture:


P20mm Outdoor LED Screen Double-Colun for Fixed Advertising
P20mm Outdoor LED Screen Double-Colun for Fixed Advertising
P20mm Outdoor LED Screen Double-Colun for Fixed Advertising
P20mm Outdoor LED Screen Double-Colun for Fixed Advertising

Certificates:

P20mm Outdoor LED Screen Double-Colun for Fixed Advertising

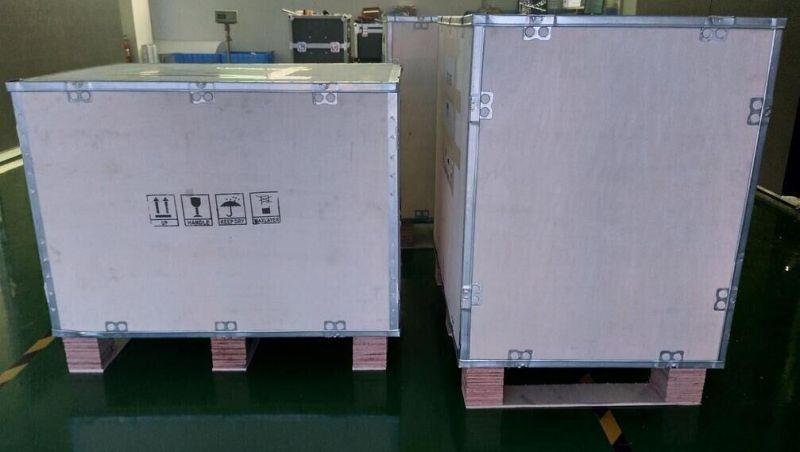

Package:

P20mm Outdoor LED Screen Double-Colun for Fixed Advertising


Our Services:

1.Provide free technology support by phone or email.

2.Training for 2 persons for installation and maintance in factory for 3 days.

3. Shipment must be arranged within 3months after order placed,otherwise, factory will have the right to resell the screen without  refunding the deposit, or there is warehouse safe-keeping fee of USD$100/day.
