Indoor High Resolution LED Screen for Meeting Room
Shenzhen Chuangkaiguang Co., Ltd.Base Info
Description
Basic Info.
Model NO. 2mm Pixel Configuration 1R,1G,1B Pixel Density 250000DOT/Per Sqm Scanning Mode 1/32 Scan System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL LED Module Size 240mmx240mm LED Cabinet Size 480mmx480mm Screen Resolution 250000 Dots/Sqm Drive Method 1/32 Scan LED Cabinet Material Die-Casting Aluminum Maintenance Rear / Front Access Refresh Rate 1920-3840Hz Ave. Power Consumption 220W / Per Square Meter Transport Package Wooden Case Specification 4pcs/6pcs/8pcs cabinet in one case Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/MonthProduct Description
Product FeaturesSeamless installation, high refresh rate led screen
High resolution led screen bring people better visual experience
Light weight so that easy to install led screen, save labor force and time
Product Detailed Specification Sheet
| NO. | PARAMETERS | SPECIFICATIONS |
| 1 | Model | K3-PRO2 |
| 2 | Pixel Pitch(mm) | 2 |
| 3 | LED | SMD1515 |
| 4 | Screen Resolution | 250000dots/sqm |
| 5 | Scan Method | 1/40 |
| 6 | Module size(mm) | 240*240 |
| 7 | Cabinet size(L*H*W mm) | 480*480*56 |
| 8 | Cabinet material | Die-casting Aluminum |
| 9 | Cabinet(Kg) | 9 |
| 10 | Viewing angle | H:160°/ V:160° |
| 11 | Grey Scale | 16bits |
| 12 | Refresh rate(Hz) | ≥3840 |
| 13 | Brightness(nits) | ≥1000 |
| 14 | Working Voltage(V) | AC 100~240V |
| 15 | AVE. power consumption (W/m2) | 220 |
| 16 | MAX. power consumption(W/m2) | 600 |
| 17 | IP grade | IP31 |
| 18 | controller | Novastar |
| 19 | Maintenance | Front service |
| 20 | Working humidity | 10~90%RH |
| 21 | Working temperature | -20ºC~50ºC |
| 22 | Certificate | RoHS / CE / CCC |

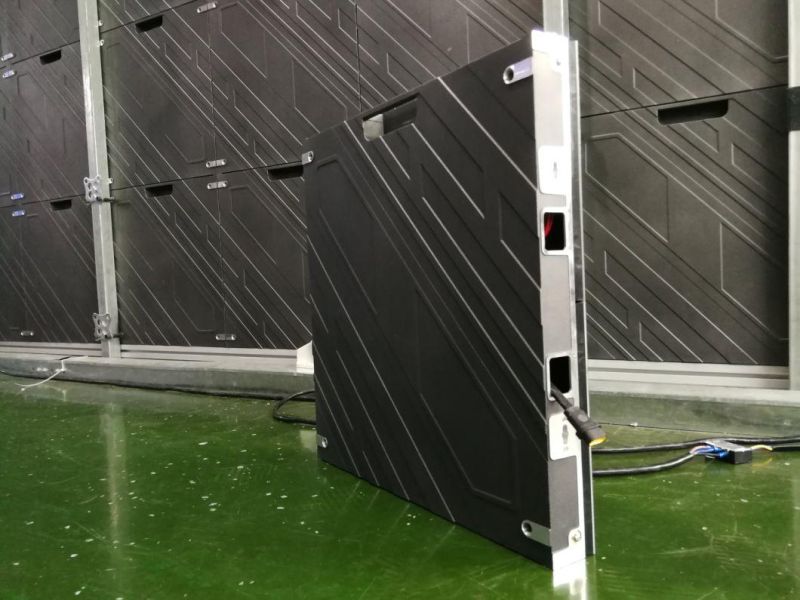

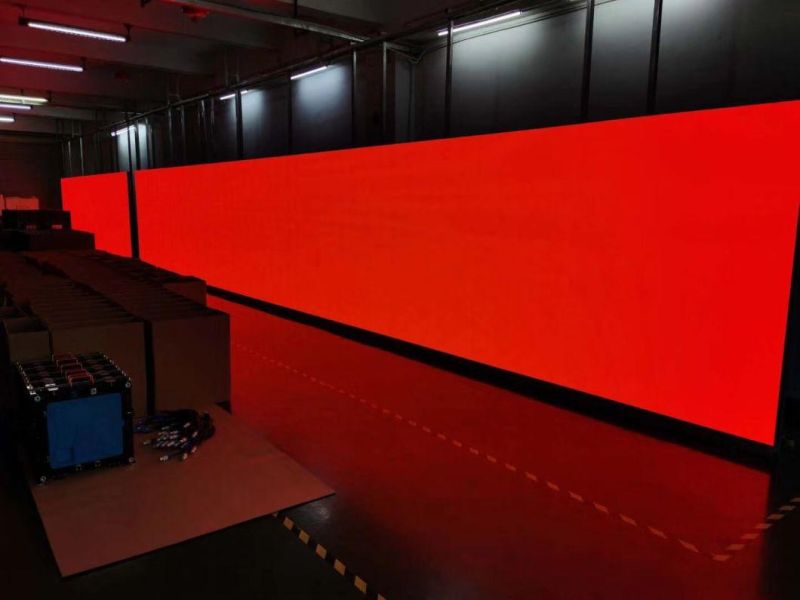

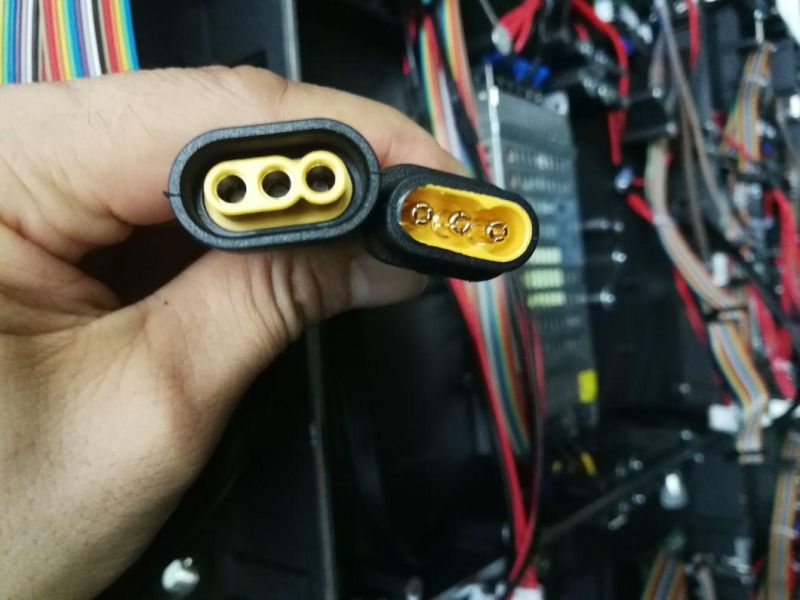

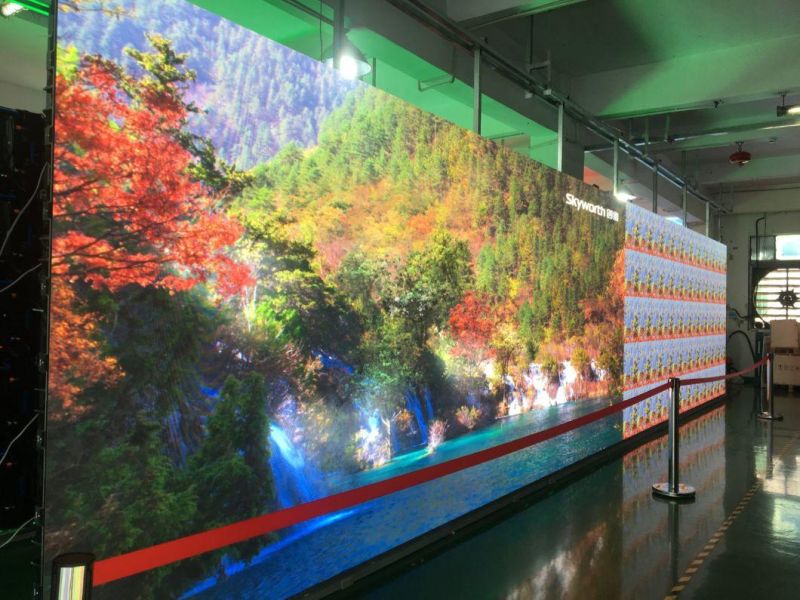

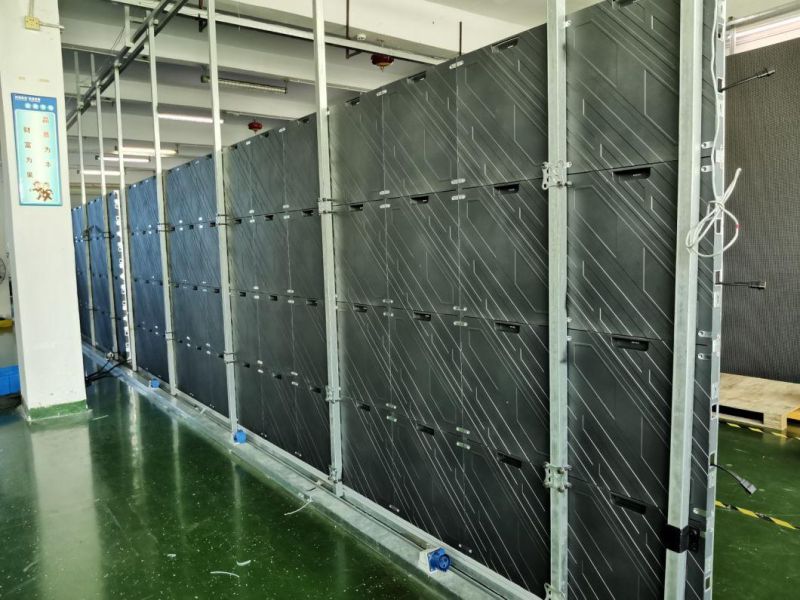

Products Photos:
