Basic Info.

Model NO. 2.6mm System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31/IP65 Certification CE, RoHS, UL, CCC, ETL Module Size 250mmx250mm Module Resolution 96X96dots Cabinet Size 500mmx500mm/500mmx1000mm Cabinet Resolution 192X192dots/192*3840dots Screen Brightness 1300nits Cabinet Material Die-Casting Aluminum Maintenance Rear Service/Front Service Compliance Ce / RoHS /CCC/FCC/ETL Screen Resolution 148225dots/Sqm Drive Method 1/32 Scan Grey Scale 14-16bit Adjustable Refresh Rate 1920-3840Hz Working Voltage AC 100V-240V Ave.Power Consumption 200W/Sqm Max.Power Consumption 600W/Sqm Transport Package Flight Case Specification 4pcs/6pcs/8pcs cabinet in one case Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:

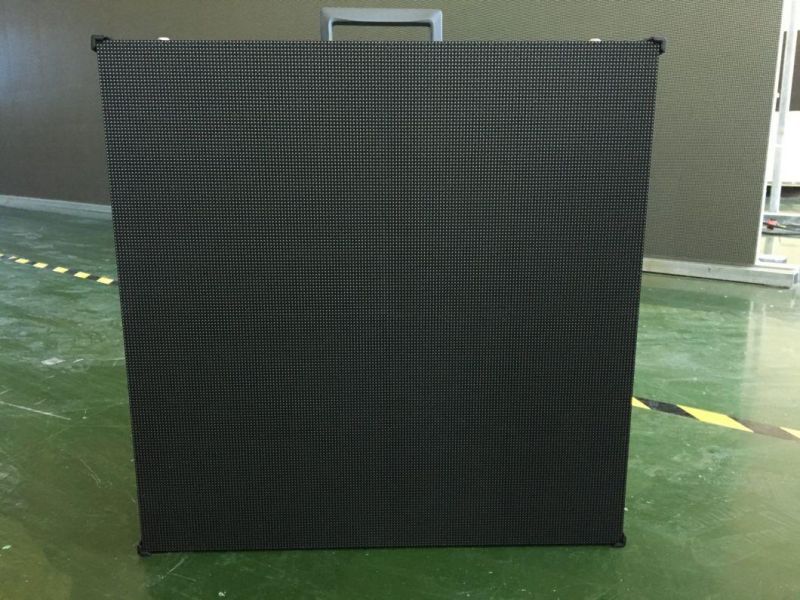

Cabinet Size: 500*500mm and 500*1000mm two sizes for option

The cabient each sides has 2 pcs flexible locks, it's easy to assemble a whole big led screen and save labor force and time.

Four corner protector, it's better to prevent the leds from damage.

Easy to maintain, rear access and front access

3840Hz high refresh rate

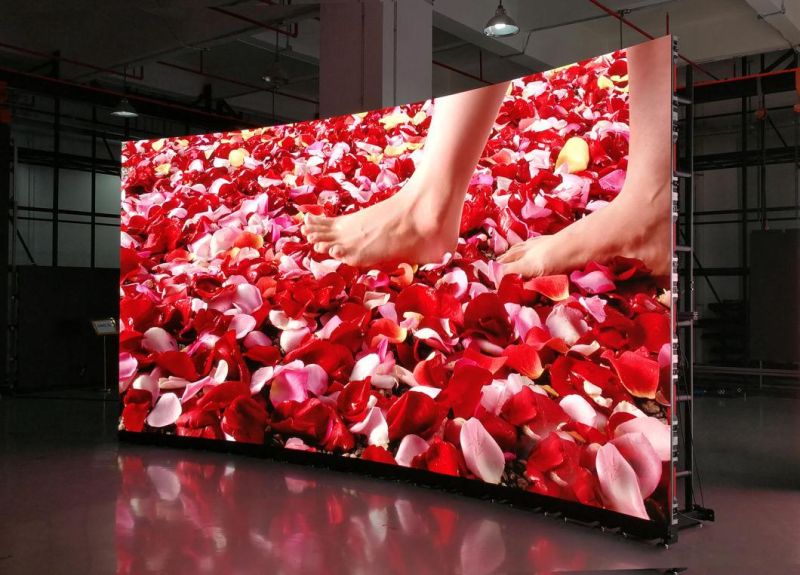

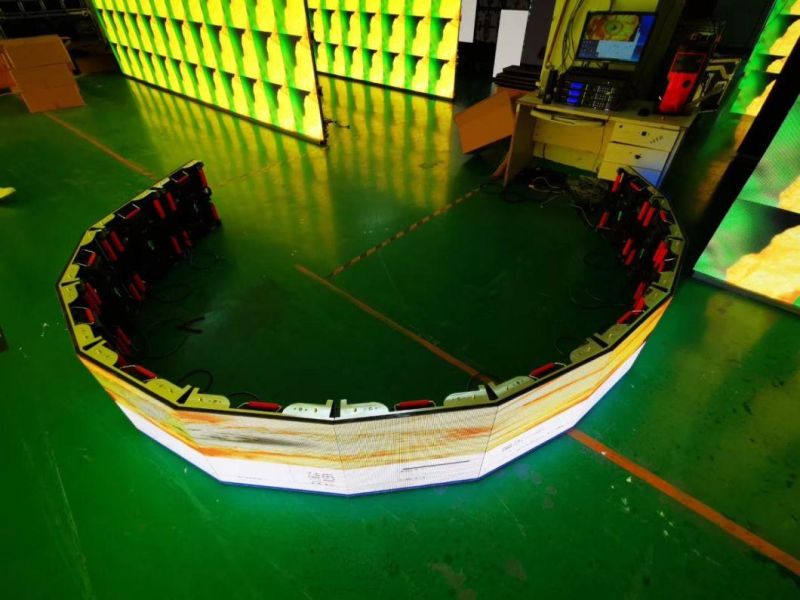

The cabinet also can do +-15 degree curved, satify your different project needs

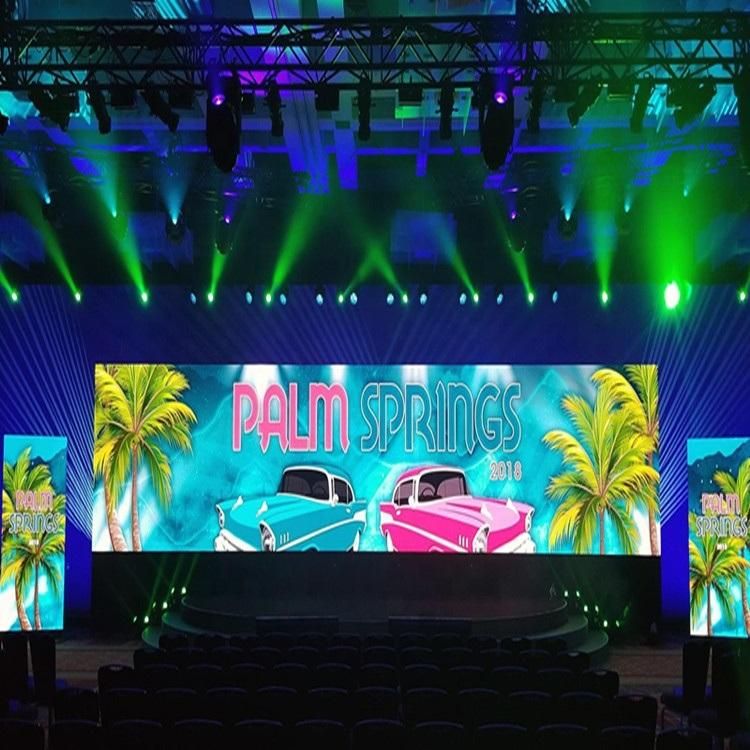

Application: Rental And Fixed Installation

T SERIES-P2.6MM TECHNICAL DATAS

NO.	Parameters	Specifications
1	Model	P2
2	Pixel Pitch(mm)	2.6
3	LED	SMD2020
4	Screen Resolution	147929dots/sqm
5	Scan Method	1/21
6	Module size(mm)	250*250
7	Cabinet size(L*H*W mm)	500x500x80
8	Cabinet material	Die-casting Aluminum
9	Cabinet(Kg)	7.3
10	Viewing angle	H:140°/  V:140°
11	Grey Scale	16bit
12	Refresh rate(Hz)	≥3840
13	Brightness(nits)	≥1300
14	Working Voltage(V)	AC 100~240V
15	AVE. power consumption (W/m2)	200
16	MAX. power consumption(W/m2)	600
17	IP grade	IP31
18	Controller	Novastar
19	Maintenance	Rear service
20	Working humidity	10~90%RH
21	Working temperature	-20ºC~50ºC

CKGLED FACTORY WORKSHOP:










In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.

(1) Every batch of LED will get a strict testing to exam its performance and quality.

Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance

(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.

Baking environment:
130ºC
2 hours

(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

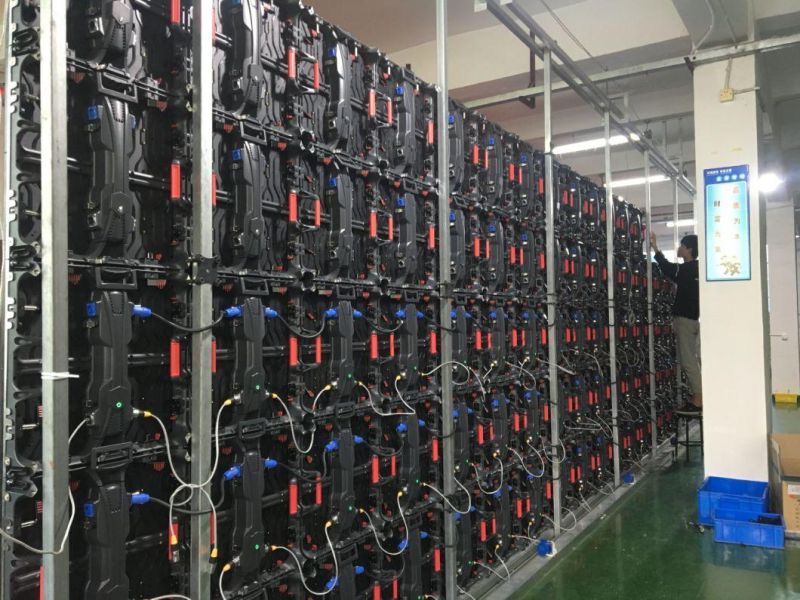

48 hours high brightness aging for the LED module and 72 hours aging  for finished displays,
in order to guarantee the final products steady performance and long MTBF.


Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
