Basic Info.

Model NO. 4mm System Operating Platform Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL Module Size 256X128mm Module Resolution 64X32dots Cabinet Size 512X512mm Cabinet Resolution 128X128dots Screen Brightness 7000nits Refresh Rate 1920Hz-3840Hz Compliance Ce / RoHS Maintenance Rear Service Controller Nova/ Linsn Frame Frequency 60Hz Transport Package Plywood Case Specification 512x512x88mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:



· Quiet fan design, excellent heat dissipation.,

· Sidelocks design for better consistency and seamless assembly.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

· High-performance metal plate cabinet, concise cable.

· The sealed-type back cover, effectively prevent wrong operations from the amateur.


PRODUCT SPECIFICATIONS:



NO.	Item	Parameters
1	Pixel Pitch (mm)	4
2	Physical Density (dot/m2)	62500
3	LED Configuration	1R1G1B
4	LED Type	SMD2525
5	Module Size (mm x mm)	256*128
6	Module Resolution (PX x PX)	64*32
7	Module Power Consumption (W)	26
8	Drive Mode	1/8 Constant Current Drive
9	Horizontal Viewing Angle (Deg)	140
10	Vertical Viewing Angle (Deg)	140
11	Brightness (cd/m2)	7000
12	Grey Scale	14
13	Refresh Rate (Hz)	≥1920
14	Cabinet Resolution (PX x PX)	192*192
15	Cabinet Max Power Consumption (W)	472
16	Cabinet Average Power Consumption (W)	160
17	Cabinet Size (mm x mm)	512*512
18	Cabinet Weight (Kg)	7.5
19	Cabinet Thickness (mm)	88
20	Cabinet Material	Die-Casting Aluminum
21	Color (M)	>16.7
22	Input Voltage (V)	AC 110V~220V+/-10%
23	Refresh Frame Frequency (Hz)	60
24	Protection Level	IP65
25	Working Environment	Outdoor
26	Working Temperature (ºC)	"-20°- +40°
27	Operation humidity (RH)	10%-90%
28	Certificates	CCC, CE,RoHS

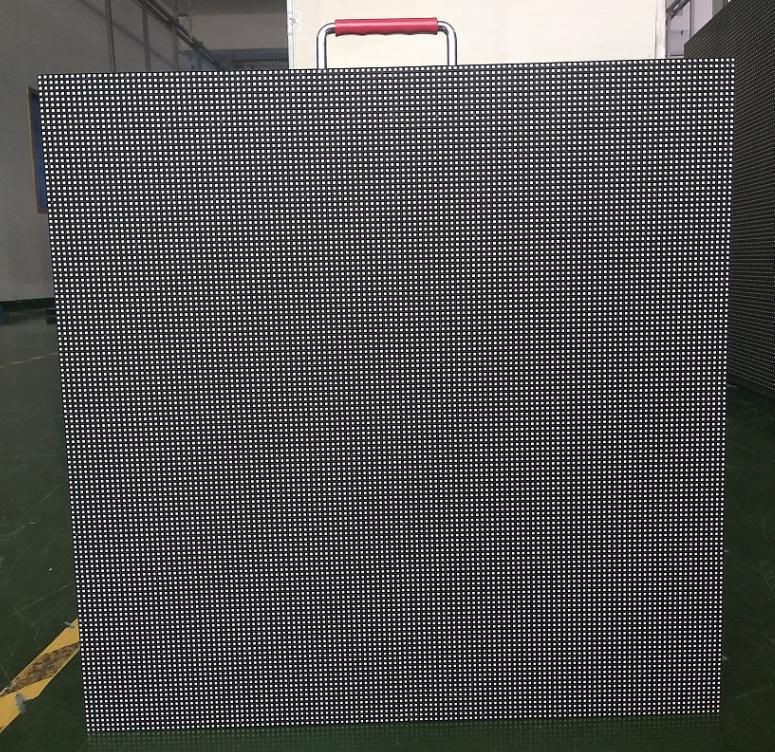

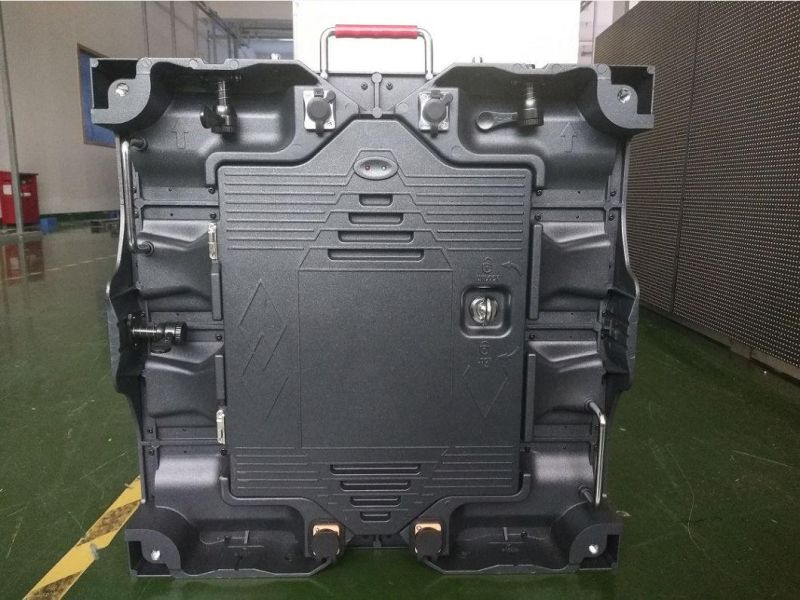

PRODUCT PHOTOS :











CERTIFICATES:

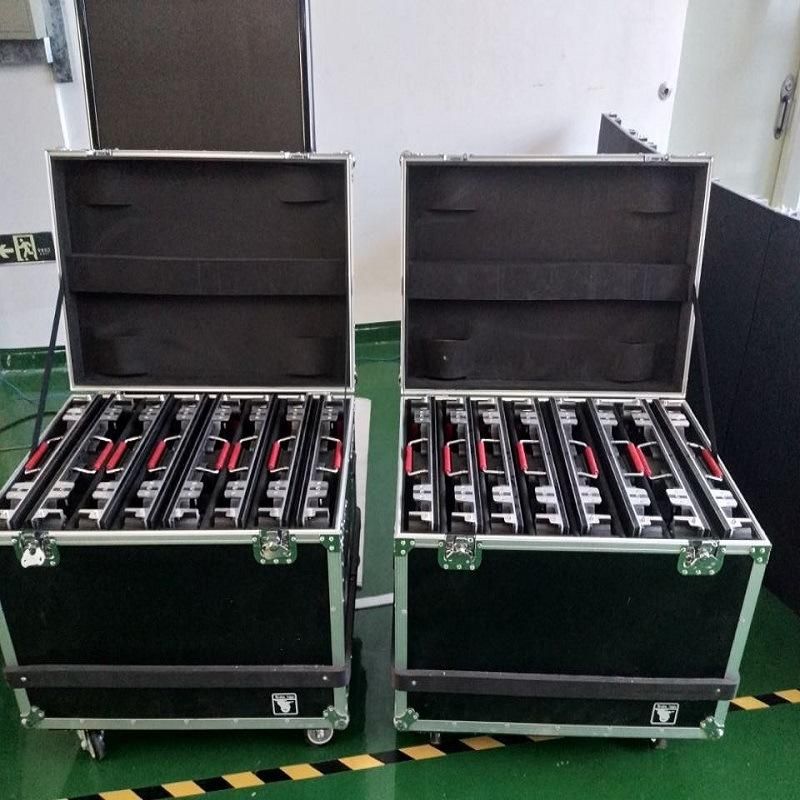

PACKAGE:

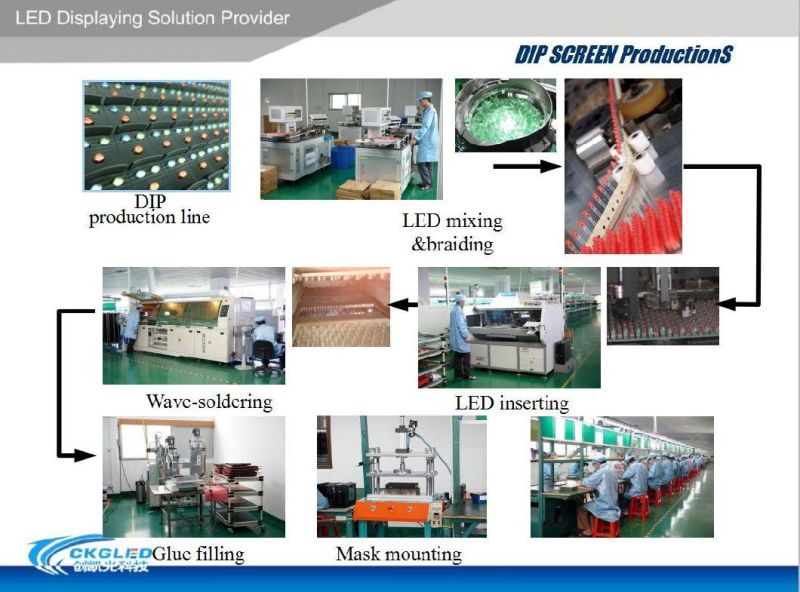

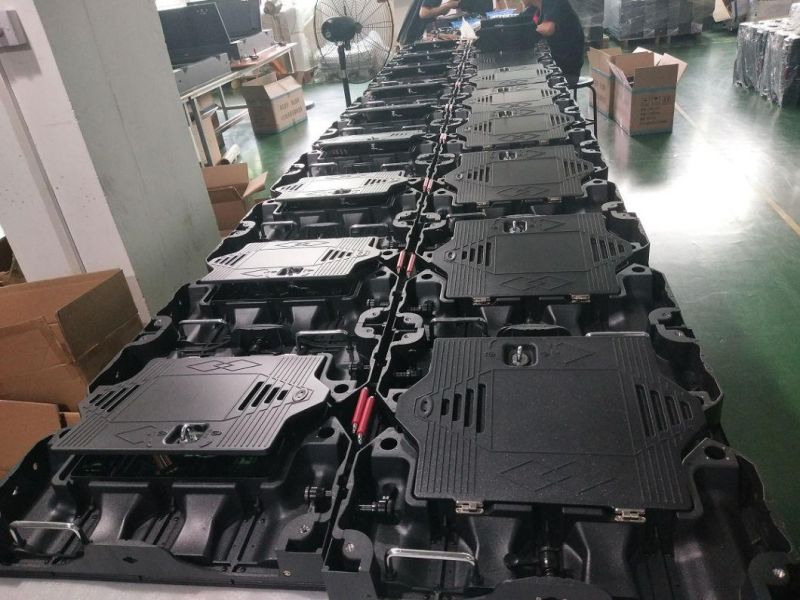

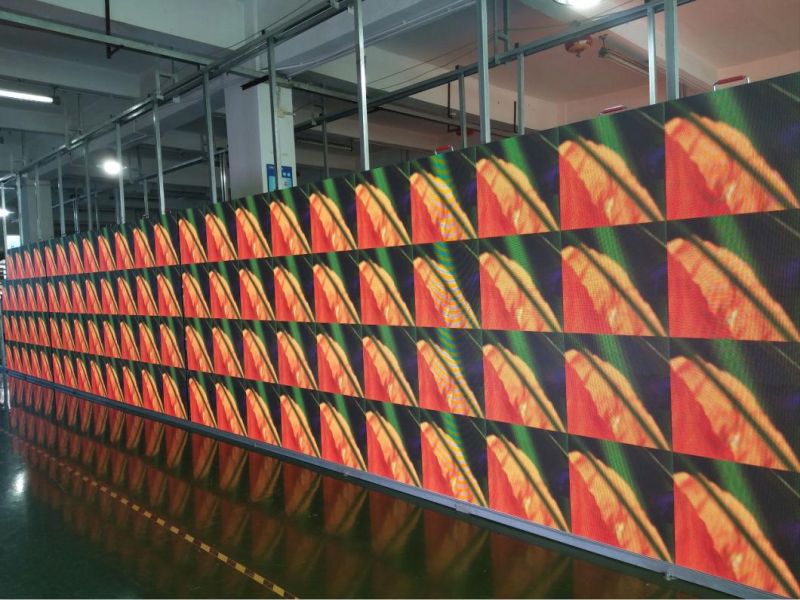

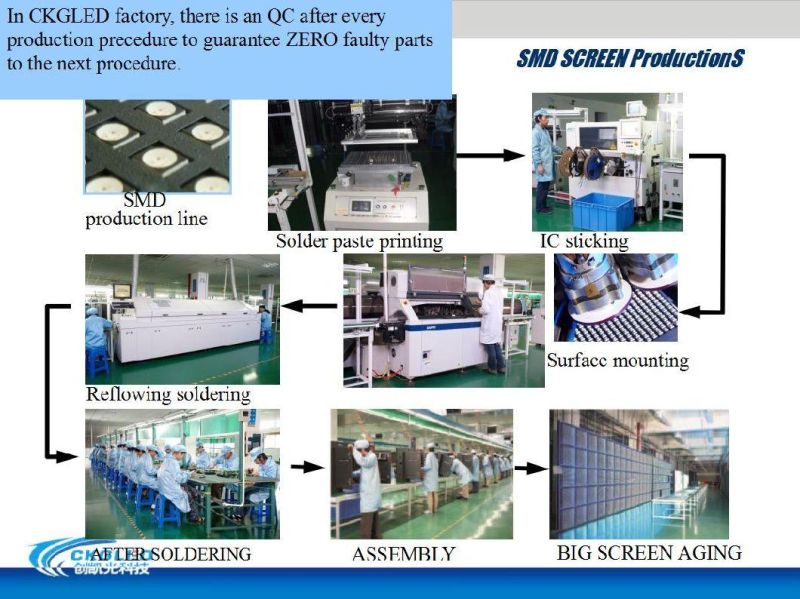

FACTORY WORKSHOP:

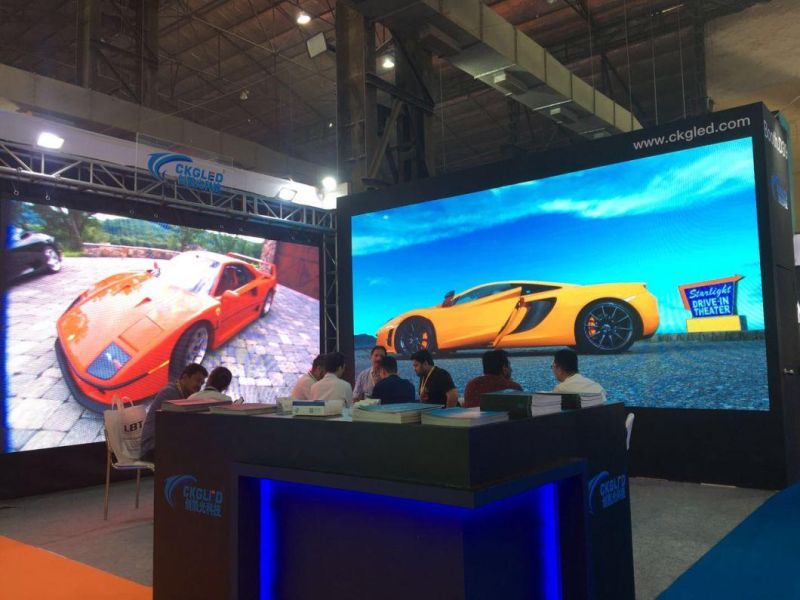

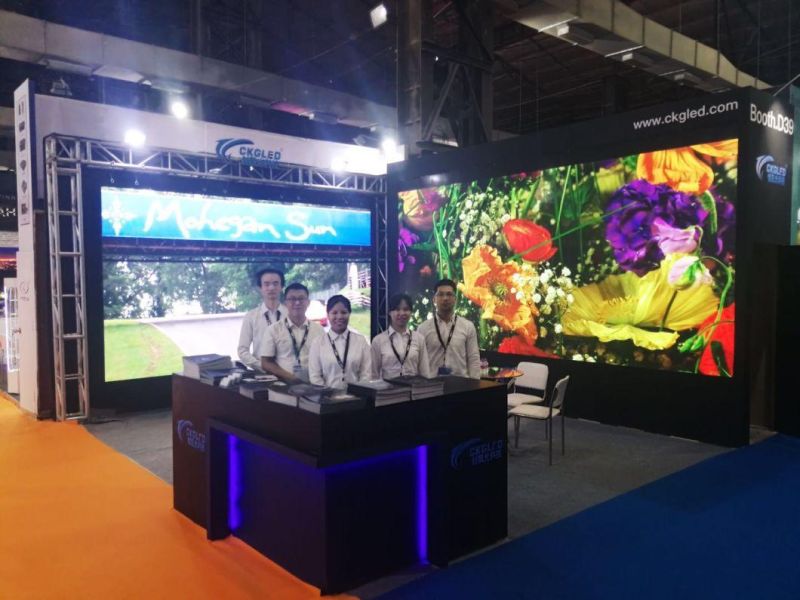

FORIGN EXHIBITION:








Our Service:

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


Trade Terms:


1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
