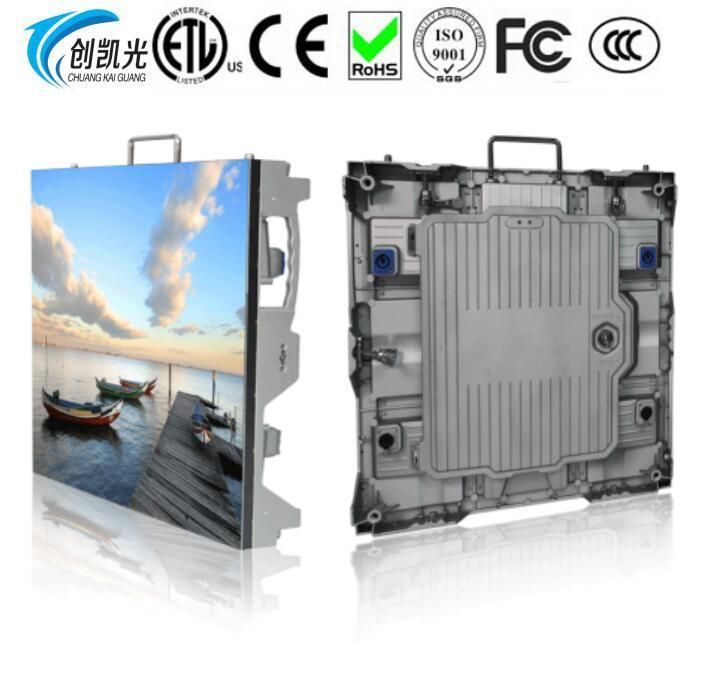

P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen

Shenzhen Chuangkaiguang Co., Ltd.

Base Info

Description

NO.ParameterSpecifications1ModelCA2.52Pixel Pitch(mm)2.53LEDSMD21214Screen Resolution160000dots/sqm5Scan Method1/326Cabinet size(L*H)480X480mmX85mm8Viewing angleH:160° V:160°9Grey Scale16bit10Refresh rate(HZ)≥384011Module size(mm)160*16012Brightness(nits)≥80013AVE. power consumption (W/m2)30014MAX. power consumption(W/m2)80015IP gradeIP3116controllerNovastar17Working humidity10~95%RH18Input VoltageAC 110V-220V +/-10%19Working temperature-30ºC~60ºC20ComplianceCCC / CE / RoHS

WARRANTY :

1. 2 years~5 years warranty

2. 1%  spares is free

3. Free training

4. Free replace/repair during warranty


P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen
P2.5mm Indoor Permanent Installation 1r1g1b Digital LED Display Screen

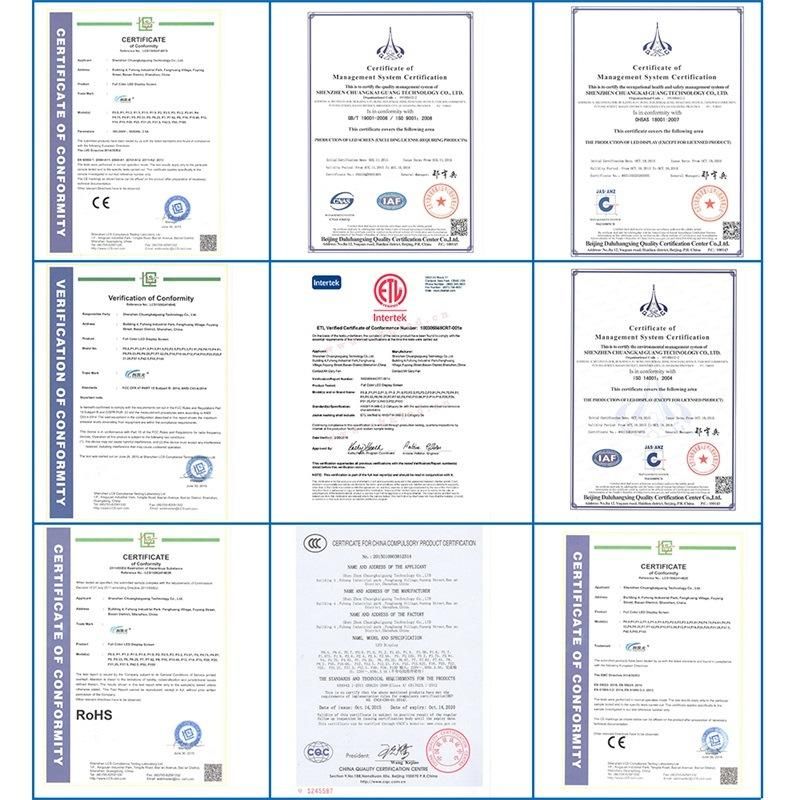

Certificate :
