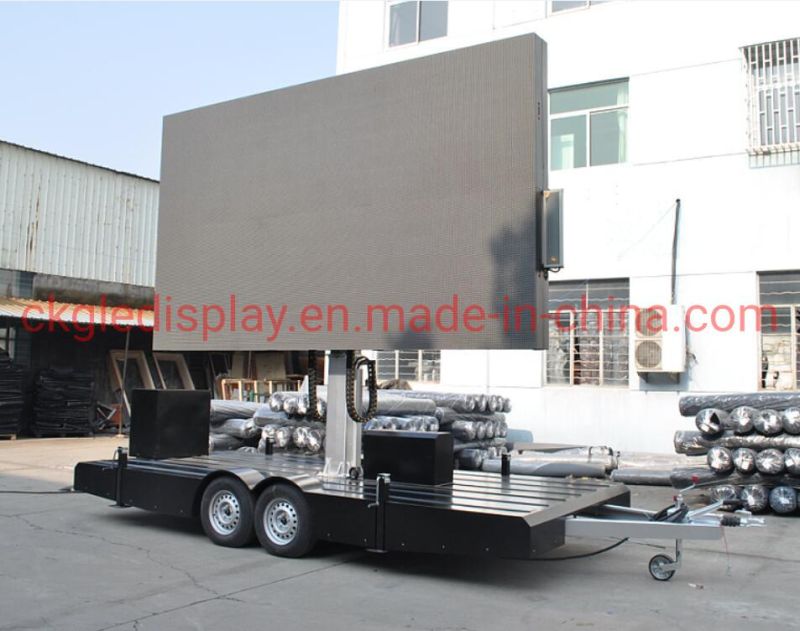

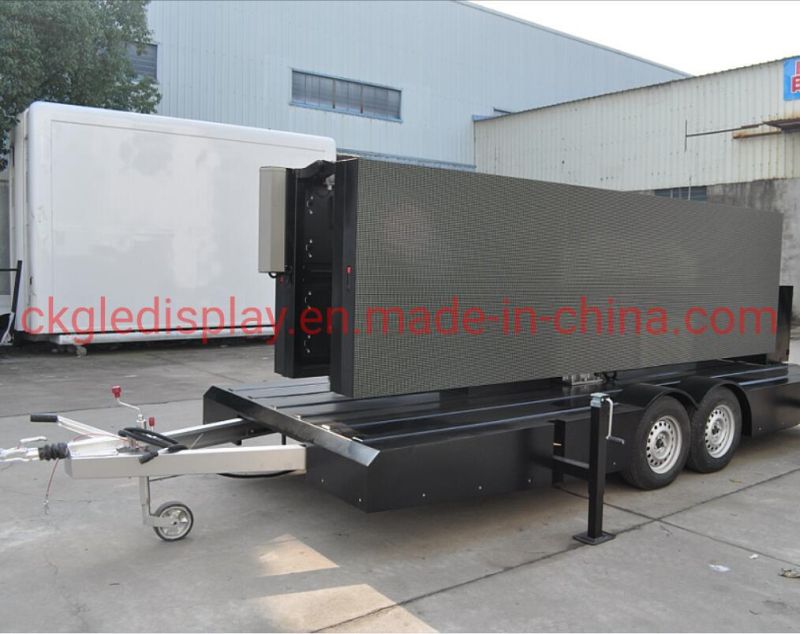

LED Factory P4/ P5/ P6 /P8 / P10 Outdoor LED Mobile Trailer Display Screen
Shenzhen Chuangkaiguang Co., Ltd.Base Info
Description
Pixel pitch6mmPixel configuration 1R1G1BModule size192*192mmPixel density27777dots/sqmModule pixel32*32dotsModule resolution1024pixelsDriving method1/8 constant driving

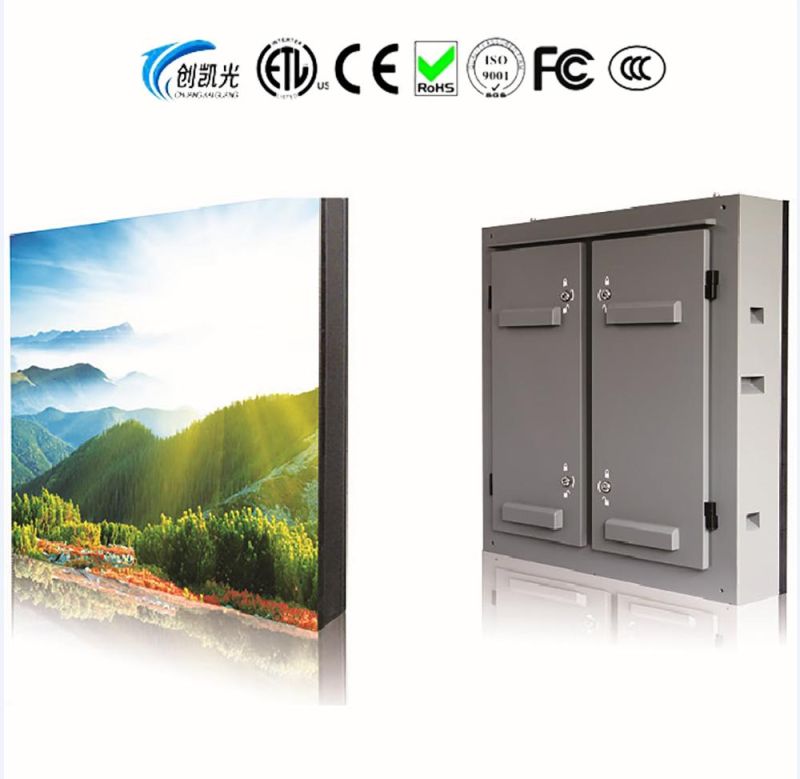

Cabinet specifications:Cabinet size1152mm*1152mm*150mmModule Qty36pcsCabinet resolution192*192dotsCabinet pixel36864dotsCabinet weight56kg power consumption(w/sqm)AVE.300 / MAX.900
Screen parameters:No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)140° / (V)140°5Brightness≥6000cd/sqm6Drive Method1/8 scanning7Driving ICMBI51248Grey scale14bits9Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤50kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption300W/sqm16Max. Power Consumption900W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours
PRODUCT DETAILS:
Cabinet specifications:Cabinet size1152mm*1152mm*150mmModule Qty36pcsCabinet resolution192*192dotsCabinet pixel36864dotsCabinet weight56kg power consumption(w/sqm)AVE.300 / MAX.900
Screen parameters:No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)140° / (V)140°5Brightness≥6000cd/sqm6Drive Method1/8 scanning7Driving ICMBI51248Grey scale14bits9Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤50kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption300W/sqm16Max. Power Consumption900W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours
