Basic Info.

Model NO. Full Color, Single Color, Dual Color Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS Delivery Time 20 Days LED Brand Epistar Warranty 2 Years Cabinet Size 1280mmx1280mm Brightness >6500nits Transport Package Woodcase Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

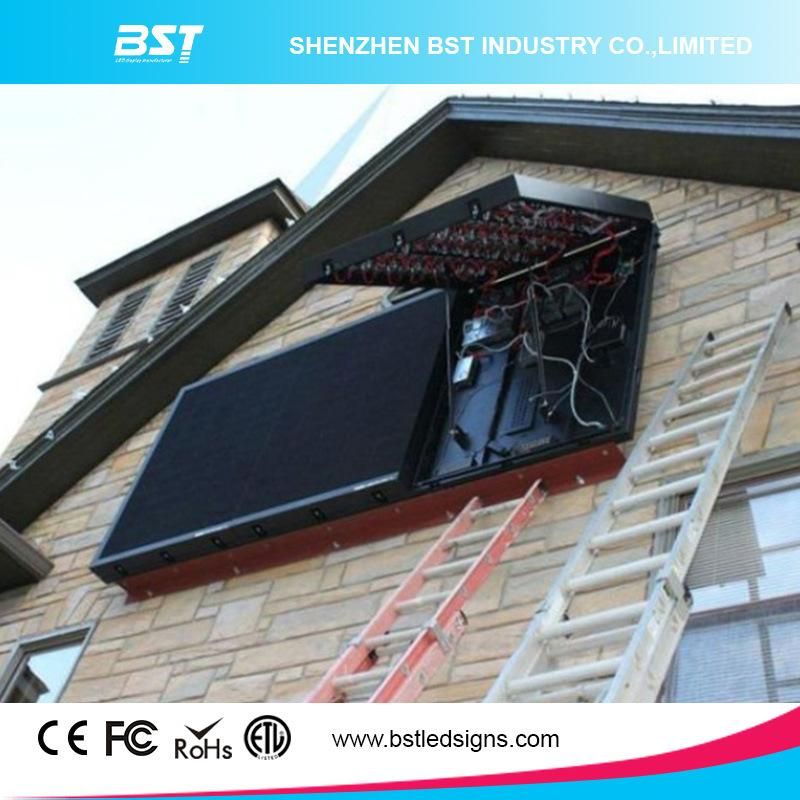

Front Access/Front Service Outdoor LED Sign Board P6,P8, P10, P16, P20 (Full Color or Single Color, Dual Color)



Key Benefits

1. Broad viewing angle LED Sign

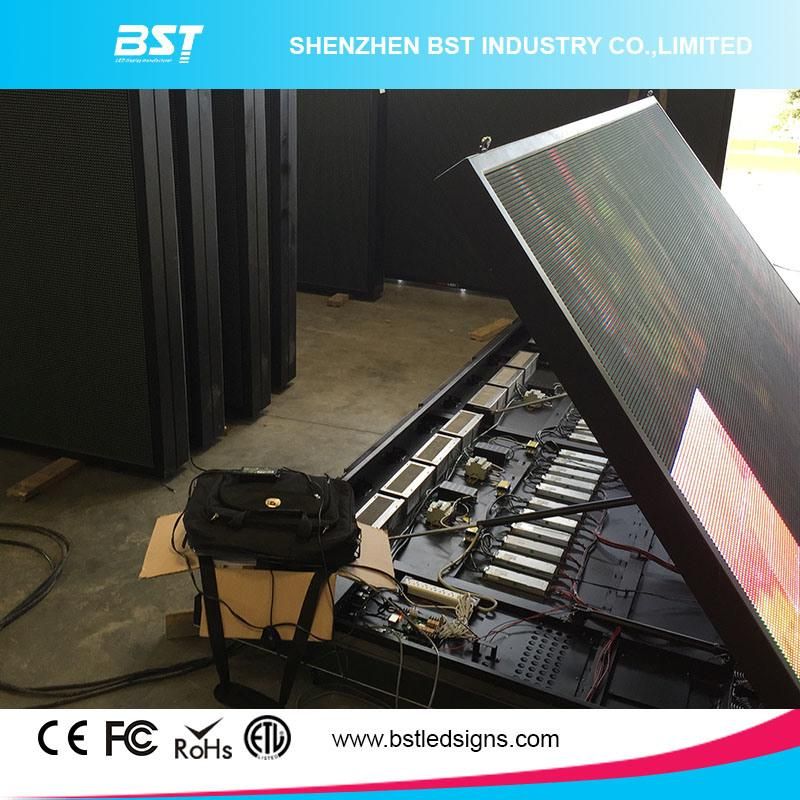

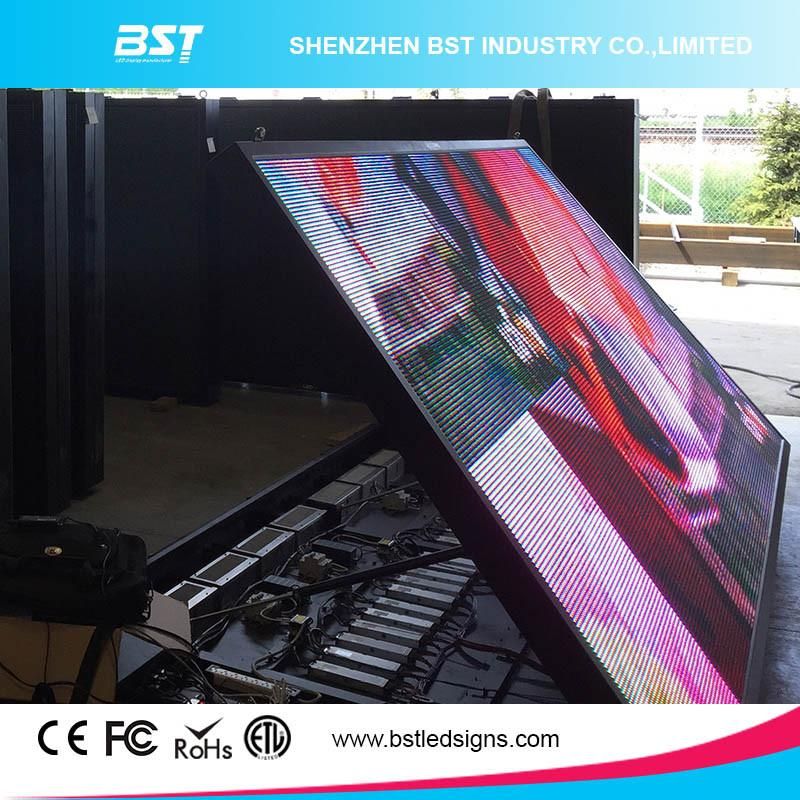

2. Front access/Front service LED Sign
3. High brightness, visible even with direct sunshine;
4. High water proof and dust proof, IP65 both front and rear side
5. Having good lightening accordance and no mosaic;
6. Getting vivid effect within any position of the viewing range;
7. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD

Model	PH10
Pixel  Pitch	10mm
LED  Type	SMD3535
Viewing  Angle	H140°   V140°
Application	Storage-40~60° C,     Working-20~50° C
Protection  Level	IP65
Driving	1/4
Frame  Refresh	≥ 60Hz
Data  Refresh  Rate	1, 200~4, 000Hz
Processing	16bit
Max    Brightness	5, 500-6, 500nits
Power  Supply	AC90-240V,   50~60Hz
MTBF	≥ 1, 000  Hours
Life  Span	≥ 50, 000  Hours
Pixel  Failure	< 0.0003
