Basic Info.

Model NO. led display p3-16s System Operating Platform Windows 7 / Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL Product Name P3-16s Indoor LED Display Driver IC Mbi5124 Bightness CD/Sqm 1800 Grey Scale 65536 Degree Life Time More 100, 000 Hours (50%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500k-9500k HD 1920Hz Transport Package Wooden Case Flight Case and Carton Specification ce 3c rohs fcc iso 9001 iso 14001 Trademark HONGKING Origin Shenzhen China HS Code 8528591090 Production Capacity 1000sqm/ Month

Product Description

Indoor SMD P3 576*576mm cabinet

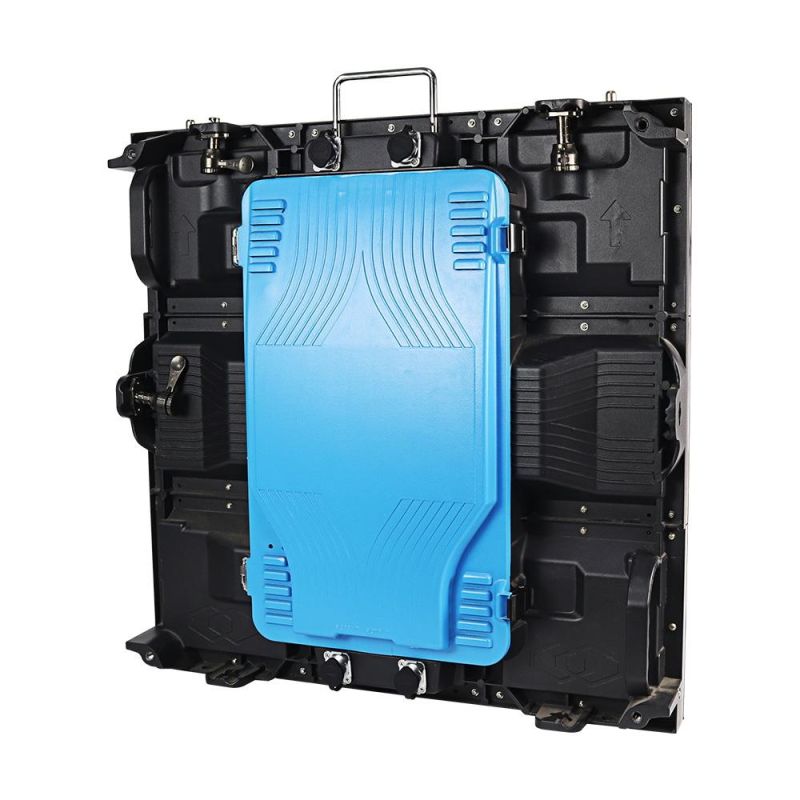

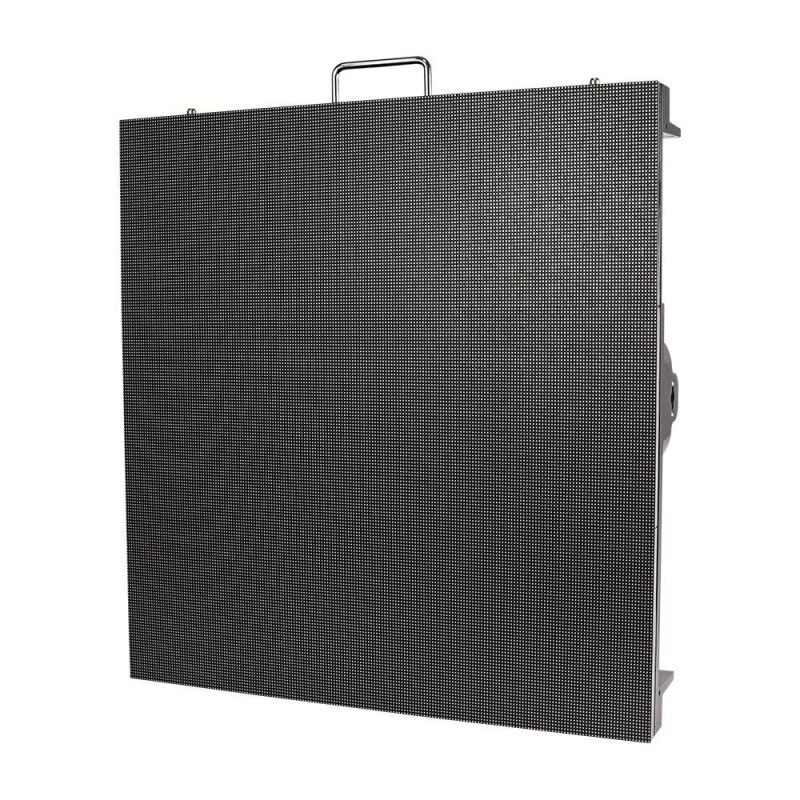

Cabinet Picture  :




Specification Sheet :


Product Model	Indoor Fixed F6	Indoor Fixed F5	Indoor Fixed F4	Indoor Fixed F3	Indoor Fixed F2.5
Pixel Pitch	6mm	5 mm	4 mm	3 mm	2.5mm
Module Size	192x192mm	160x160 mm	256x128 mm	192x192mm	160x160 mm
Module Resolution	32x32 pixels	32x32 pixels	64x32 pixels	64x64 pixels	64x64 pixels
LED	SMD3528	SMD3528	SMD2121	SMD2121	SMD2121
Standard Cabinet Size	960x960 mm	960x960 mm	768x768mm	576x576mm	480x480 mm
Standard Cabinet Resolution	160x160 pixels	192x192 pixels	192x192pixels	192x192pixels	192x192 pixels
Standard Cabinet	Iron	Iron	Iron	Iron	Iron
Physical Density	27777 Pixels/m2	40000 Pixels/m2	62500 Pixels/m2	62500 Pixels/m2	40000 Pixels/m2
White Balance Luminance	≥1500 nits	≥1500 nits	≥1200 nits	≥1200 nits	≥1200 nits
Gray Scale per Color	16384 level	16384 level	16384 level	16384 level	16384 level
Contrast	1000:01:00	1000:01:00	1000:01:00	1000:01:00	1000:01:00
Refresh Frequency	≥960 Hz	≥960Hz	≥960 Hz	≥960 Hz	≥960Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Max Power	600 W/m2	600 W/m2	650 W/m2	650 W/m2	700 W/m2
Average Power	200 W/m2	200 W/m2	220 W/m2	220 W/m2	250 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,D

FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
