Basic Info.

Model NO. P10 Scanning Mode 1/4 Scan System Operating Platform WIN XP Display Type LED Video Display Brightness 1800 CD/Square Certification CE, CCC Delivery 15-20 Day Warranty Period 2years Transport Package Carton Box Specification 650mm*340mm*350mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 2000PCS/Month

Product Description

P10 Semi-Outdoor LED Screens with High Quality

Item	Parameter
Pixel Pitch	10mm
Resolution of Module	32×16dots
Module Size	320×160mm
Led Package	DIP Oval 546 Lamp
Pixel Configuration	1W
Chip Brand of LEDs	San'an
Module Weight	0.59kgs/pcs
Pixel Density	10,000dots/sqm
Brightness (White Balance)	2000nits(cd/sq.m)
Scan Mode	1/4 Scan
The best viewing distance(m)	>=10M
The best viewing angle:	110deg.
Module Maximum Power	20W
Max. Power Consumption	400W/sq.m
Avg. Power Consumption	100-250W/sq.m
Working Voltage	5V
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	300Hz/S
Frame Rate	Hz/S≥ 60
Gray Scale	256 grade
Display Function	Texts
Input Signal	RS232/485, USB,Ethernet
Defective Dot Rate	<0.0001
Life Span	hours≥100,000
MTBF	hours≥5,000
Operating Temperature	-20°C~+60°C
Working Humidity	10%-90%RH
Control System	Asynchronous or Synchronous
Warranty	2 Year

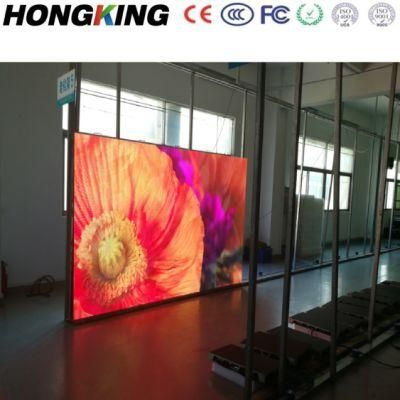

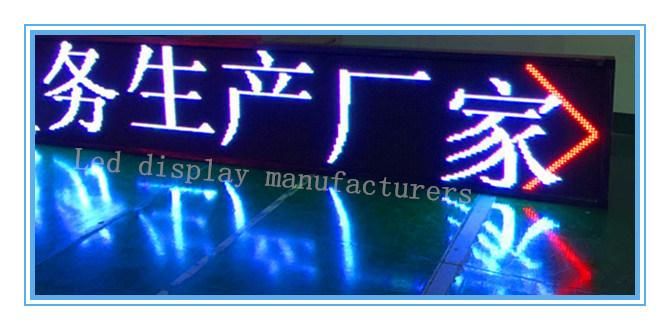

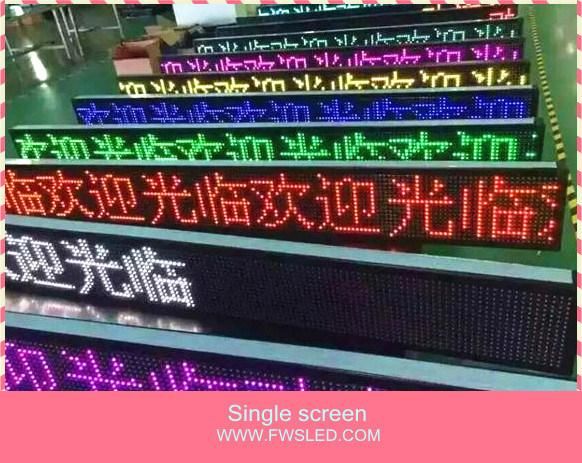

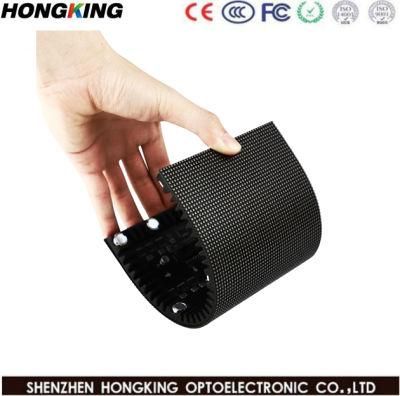

Product pictures




Advertising LED displays,  Stadium perimeter LED screen,  Mobile led display for mobile media, shopping mall LED billboard for logo showing , bank & stock exchange LED message signs for rates showing , train & bus station , airport ,  telecommunication LED video wall , Stage performances ect.
Packaging

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
