Basic Info.

Model NO. led display p5-16s System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP60 Certification CE, RoHS, CCC, ISO9001 Product Name P5-16s LED Display Driver IC Mbi5124 Brightness 5000CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500K-9500K Transport Package Wooden Case, Flight Case, and Carton Specification 320*160mm; 160*160MM Trademark HONGKING Origin China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

P5 Energy Saving Outdoor Display LED Billboard

WHAT RESOLUTION SHOULD I CHOOSE?
The resolution you need for an LED display depends on the viewing distance. From what distance will your audience be viewing the display? If you are close to a low-resolution LED display (far between the diodes), it will be difficult to see what's on the display.

There is typically a connection between display resolution and price. The higher the resolution, the more diodes there are per m2 - and therefore a higher m2 price.

If you are installing a digital sign by a main road or on a building facade, it will be seen from a certain distance. Here, a high-resolution display would be unnecessary - and unnecessarily expensive. If it is a display at floor level in the middle of a department store, the audience will get much closer to it. Here, a high-resolution display works best.




Specification details :


Product Model	Outdoor Fixed F10-2S	Outdoor Fixed F8-4S	Outdoor Fixed F6-8S	Outdoor Fixed F5-8S	Outdoor Fixed F4-8S
Pixel Pitch	10 mm	8 mm	6 mm	5 mm	4 mm
Module Size	320x160 mm	256x128 mm	192x192 mm	160x160 mm	256x128 mm
Module Resolution	32x16 pixels	32x16 pixels	32x32 pixels	32x32 pixels	64x32 pixels
LED	SMD3535	SMD3535	SMD3535 or SMD2727	SMD2727	SMD2525
Standard Cabinet Size	960x960 mm	1024x1024 mm	768x768 mm	960x960 mm	1024x1024 mm
Standard Cabinet Resolution	96x96 pixels	128x128 pixels	128x128 pixels	192x192 pixels	256x256 pixels
Standard Cabinet	Iron	Iron	Iron	Iron	Iron
Physical Density	10000 Pixels/m2	15625 Pixels/m2	27777 Pixels/m2	40000 Pixels/m2	62500 Pixels/m2
White Balance Luminance	≥6500 nits	≥7000 nits	≥6500 nits	≥6000 nits	≥6000 nits
Gray Scale per Color	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)
Contrast	5000:01:00	5000:01:00	5000:01:00	5000:01:00	5000:01:00
Refresh Frequency	≥1920 Hz	≥1920 Hz	≥1920 Hz	≥1920 Hz	≥1920 Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Max Power	600 W/m2	650 W/m2	900 W/m2	1000 W/m2	1000 W/m2
Average Power	200 W/m2	250 W/m2	300 W/m2	350 W/m2	350 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI, HDMI,SDI,DP	AV,Video,VGA, DVI,HDMI,SDI,DP	AV,Video,VGA ,DVI,HDMI,SDI,DP	AV,Video,VGA DVI,HDMI,SDI,DP

FAQ :
Request for LED Display Quote



Please provide the following information so we can offer best service for you . After this we will provide quote to you as soon as possible.


1,Is your LED Display located Indoor, Semi-Outdoor or Outdoor, Mobile or Trailer (required)
 ()Indoor  ()Semi-Outdoor  ()Outdoor  ()Mobile  ()Trailer

2,What is the Length of your LED Display requirement  (required)
(  )Metres


3,What is the Height of your LED display  requirement? (required)
(  )Metres

4,What is the Optimal distance viewing to the LED Display? (required)
(  )Metres


5,What will be displayed on the LED display? (required)
()Text  ()Pictures  ()Videos  ()TV/Camera


6,I will usually program the LED display with the following frequency:
 ()Daily/Weekly & Disconnect  ()Stream Content Continually Online

7,I would like to connect to the LED display using: (required)
 ()Computer Connection control
Please upload any images that may assist with an understanding of your led display requirement:
Upload Images()

Yours Details
Full Name (required)

Email Address (required)

Contact No (required)

---------------------------------------------------------------------
Thanks and best regards

Tom xie

Shenzhen hongking optoelectronic co.,ltd
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen



---------------------------------------------------------------------

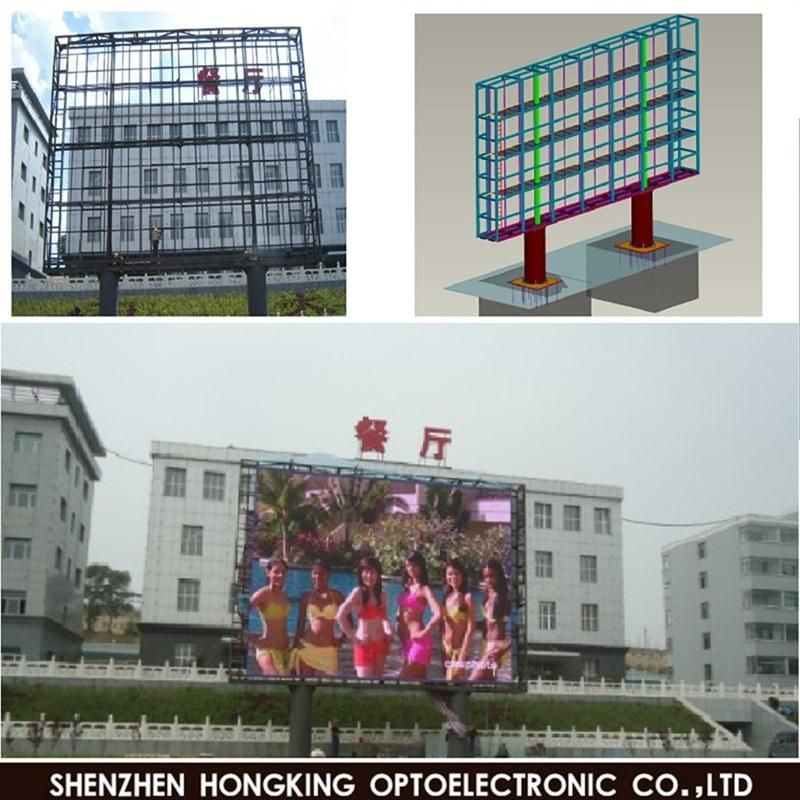

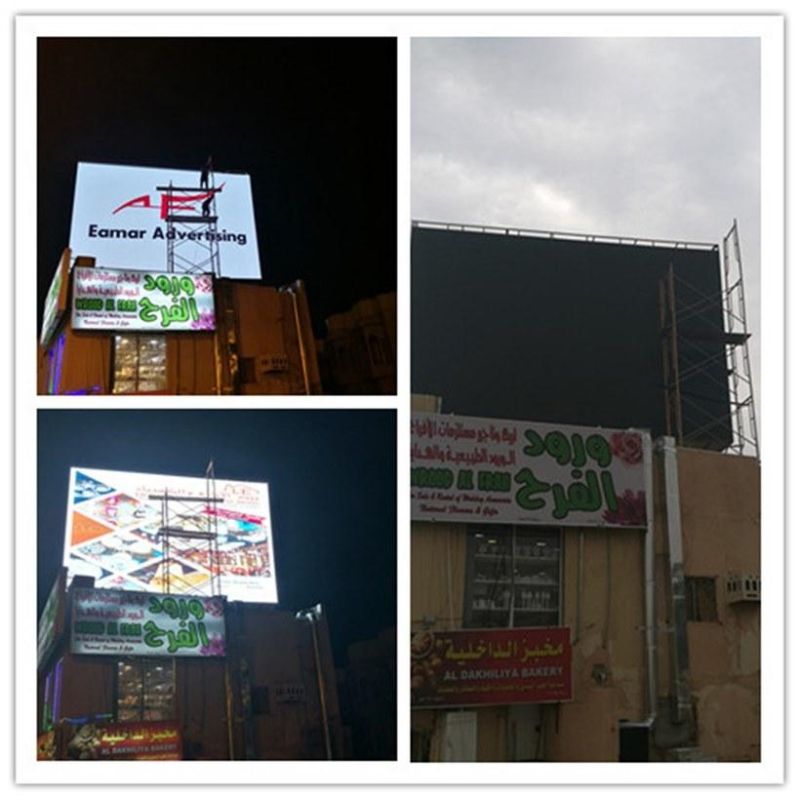

 about the installation commissioning ;
after project confirm ,we will provide detailed  construction install drawing
when we finished screen will aging tesing 72 hours ;
you can come and visit make sure quality then we can training
if you wont come we can provide remote control .
if necessary ,we can also appoint engineers to your site ;

Display the installation and debugging, not as difficult as you think;
After the factory production is completed, we will debug the product well,
Send connected pictures and drawings to you at the same time;
