ModelOR-6.25Pixel Pitch6.25mmPixel Density25600 pixels/m2LED TypeSMD3535LED Configuration1R1G1BCabinet Dimension500mmx500mmCabinet Resolution80*80pixelsCabinet Weight9kgCabinet Materialdie casting aluminumIngress Protection(front/rear)IP65/IP54Brightness>6500nitsViewing Angle(H/V)140°/140°Driving Method1/6 ScanFrame Refresh≥ 60HzData Refresh Rate>1500HzGray Scale16bitPower Consumption(avg.)300w/m2Input VoltageAC 110/220±10%,  50~60HzTemperature(operating/storage)-20~50°C / -40~60°CHumidity(operating/storage)10%~90%RH / 10%~85%RHMTBF≥1000hrsLife Span≥50000hrsPixel Failure<0.0003

 Methods for Quality Assurance
a.Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level

b.Vibration Testing
Condition: 3-5 mins up and down in 5mm range

 Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


Applications:

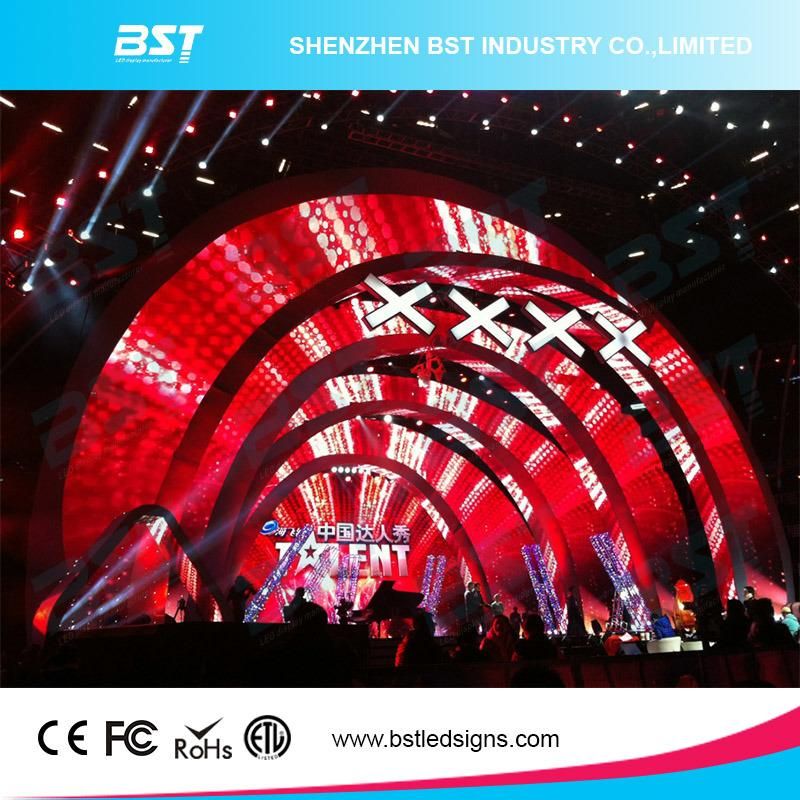

Suit for advertisement, stage, stadium, exhibition, TV Show, mansion video wall, shopping mall, banks, schools,
 bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.



Our Service

BST serve clients based on quality, honesty, morality and trust



Guidance service: We can guide on line if customers have questions about the installation and usage. For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, we can dispatch our engineer for on-site guidance.
Warranty period: 2 years after shipment.
Maintenance service:
Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, we will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free. After Maintenance period, only charge the material costs fees free of manual work fees.
