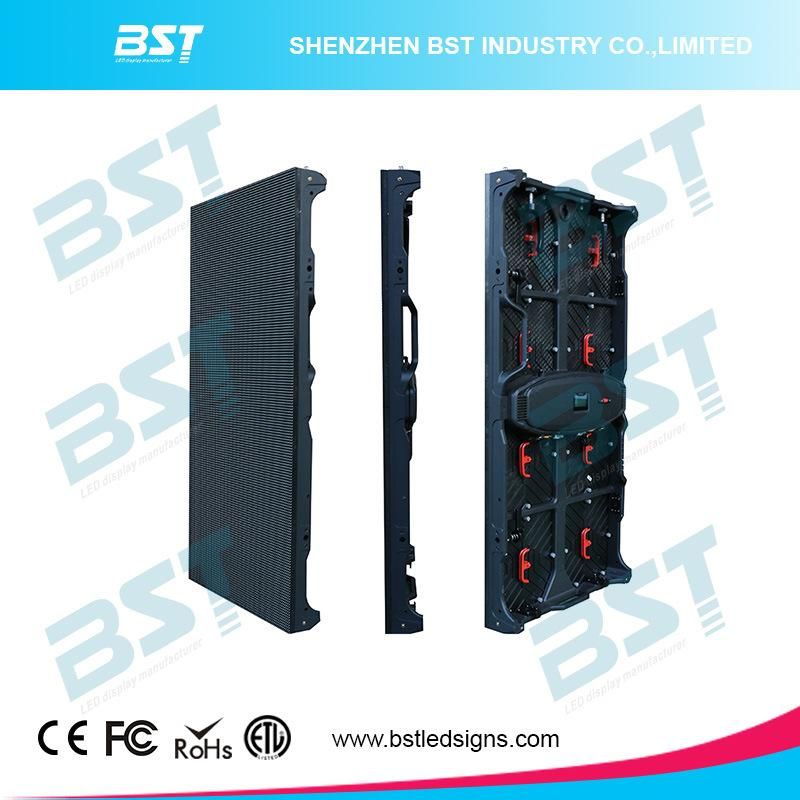

ModelOR-6.25Pixel Pitch6.25mmPixel Density25600 pixels/m2LED TypeSMD3535LED Configuration1R1G1BCabinet Dimension500mmx1000mmCabinet Resolution80*160pixelsCabinet Weight13kgCabinet Materialdie casting aluminumIngress Protection(front/rear)IP65/IP54Brightness>6500nitsViewing Angle(H/V)140°/140°Driving Method1/6 ScanFrame Refresh≥ 60HzData Refresh Rate>1500HzGray Scale16bitPower Consumption(avg.)300w/m2Input VoltageAC 110/220±10%,  50~60HzTemperature(operating/storage)-20~50°C / -40~60°CHumidity(operating/storage)10%~90%RH / 10%~85%RHMTBF≥1000hrsLife Span≥50000hrsPixel Failure<0.0003

Products series we offer
(1) Outdoor fix installation led screen:P10,P12,P14,P16,P20,P25 etc.
(2) Outdoor rental led screen P10,P12,P14,P16,P20,P25 etc.
(3) Indoor fix installation led screen:P6,P7.62,P8,P10 etc
(4) Indoor rental led screen P6,P7.62,P8,P10 etc
(5) Outdoor and indoor Perimeter LED Screen:P6,P7.62,P16,P20 etc
(6) LED Curtain:P31.25,P37.5,P40 etc
(7) LED Curve or Round,Column LED Screen: P6,P7.62,P8,P10, P12,P14,P16,P20,P25
(8) Dance floor led screen
(9) Stage led screen
(10) Single color or dual color for text and graphic

Outdoor Full Color LED Display Function:
1. Excellent visual effect, better viewing effect for text and graphic or video
2. Large viewing angle,both H/V can reach 140 degree;getting vivid effect within any position of the viewing range;
3. High contrast ratio and good evenness, high uniformity,without mosaic
4. Resist of the high temperature and antioxidative and anti-static;
5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintenance.
6. Long using life & MTBF
