Basic Info.

Model NO. p16 Pixel Density 3906 Pixels/M2 Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Repair Access Both Front Access and Rear Access Driver IC Mbi5124 Connector Lk/Nuetrick/Seetronic/Invisible Power Supply MW Brightness >7500 Nits Cabinet Steel/Aluminium LED Brand Nationstar/CREE LED Chip Epistar/CREE Refresh Rate >1920 Hz Grey Scale 16 Bits Transport Package Plywood Cases Specification 768x768 Trademark LEDventure Origin China HS Code 852859109 Production Capacity 4000m2/Month

Product Description

P16 DIP Outdoor Traffic LED Display

1.Main Features And Functions

1.1 To gather information
Responsible for the other modules or systems within the receiving system interface to send traffic volume, traffic congestion, traffic accidents and other traffic information.
1.2 Dealing with traffic information
Traffic information sorting, remove incorrect information effectively filter out the information.
1.3 Post traffic information
Effective traffic and related information, released the following information induced through the LED screen.

1. Direction of travel traffic status (icon or text);
2. Tip of the of meteorological state of traffic participants;
3. Road maintenance and construction information;
4. The road opening and closing;
5. Speed limit information (text);
6. Warning information (text or symbol);
7. Traffic Safety the terminology (text);
8. Animation display function .

1.4 The automatic induction Display:
Traffic control system based on traffic data, traffic congestion information automatically generated induced information passed to the induction system, and then sent to the induction show.
1.5 The artificial induction Show:
Artificial unexpected events, weather conditions and other information through the control system destined for outdoor induced. Can be set to display or set sent by the control system timing display immediately after sending.
1.6 General information:
General traffic information such as traffic laws, tagline, according to predetermined time, the number of information turns playing. Information content, and time can be changed through the system.
Will display the contents of the pre-stored to the local storage medium of the guidance screen, and in the case of communication disconnection, the guidance screen to be displayed according to the locally stored content.

2. Main Technical Specifications

PARAMETERS	DESCRIPTION
Brightness	≥10000 Nits
Viewing angle	H: 120°; V: 60°
Panel weight	30 kg
Panel size	W768mm x H768mm x D150mm
Panel material	Aluminum
Ingress protection	Front/Rear: IP65/IP54
Operating Temperature/Humidity	-25ºC - +50ºC/ 10-90%RH
Storage Temperature/Humidity	-40ºC - +60ºC/ 10-90%RH
Pixel configuration	1R1G1B
Pixel Pitch	16mm
Pixels per panel	48x48Dots
Physical density	3906 pixels / m 2
Recommended viewing distance	16M
Color	4.4 trillion
Gray scale	65536 levels per color
Brightness control	256 levels of each color(manually),8 levels of each color(automatically)
Contrast ratio	1000:1
Processing depth	16bits
Video frame rate	1920Hz
Input voltage	110-220VAC+-10%
Input power frequency	50-60Hz
Input power <max>	500watts
Input power <typical>	130watts
Life Time	≥100,000 Hours
LED Wavelength	R:620-625nm  G:520-523nm  B:470-473nm
Driving Method	1/1 scan
LED Encapsulation	DIP346
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION, etc
Certifications	CCC,CE,FCC,ETL,IP65,EMC

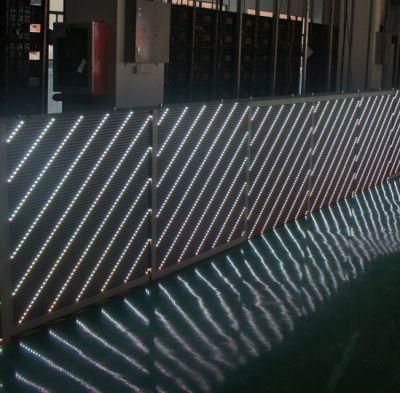

3.Aging Test Before Shipping

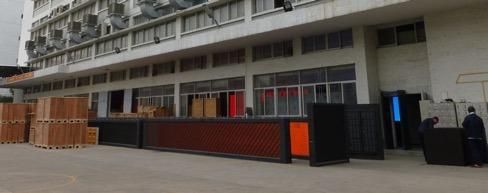

4.Waterproof Test


5. Application

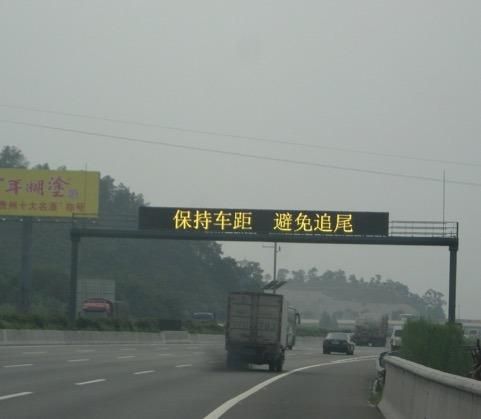

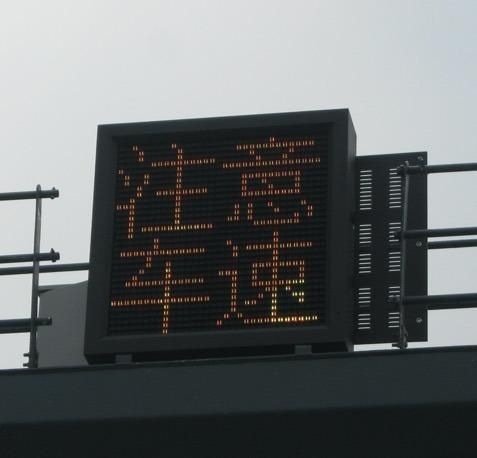

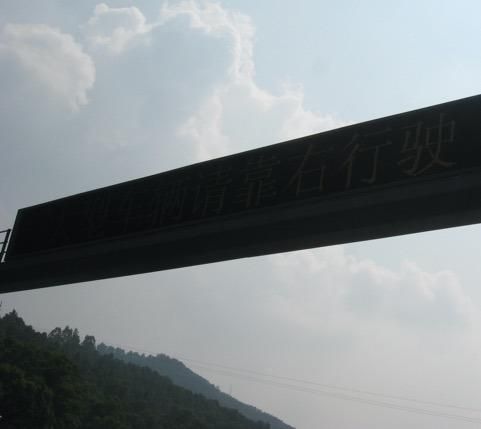

Outdoor LED display screen the led traffic lens display screen has the characteristics of more uniform light emission,better light mixing effect and more energy saving.Lens beads using patch technology,quality is more stable,light shape can be customized and other characteristics,mainly used in led variable message signs,led variable speed limited sign,Etc channel indicator,led construction guide card and other occasions.
