Basic Info.

Model NO. BST-M-P10R-SO Scanning Mode 1/4 Scan System Operating Platform Win XP, Win7, Win8, Win8.1 Display Type LED Dot Matrix Display Brightness 4500 cd / m² Certification CE, UL, CCC Size 1280X640mm Delivery Time 10 Working Days Warranty 2 Years Customize Yes Transport Package Woodcase Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 2000PCS/Month

Product Description

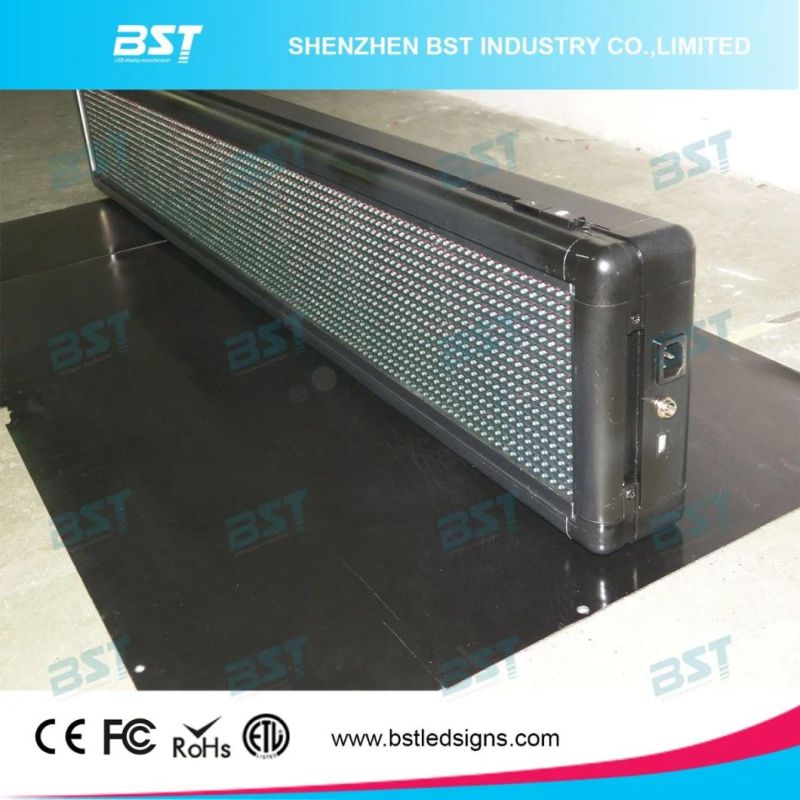

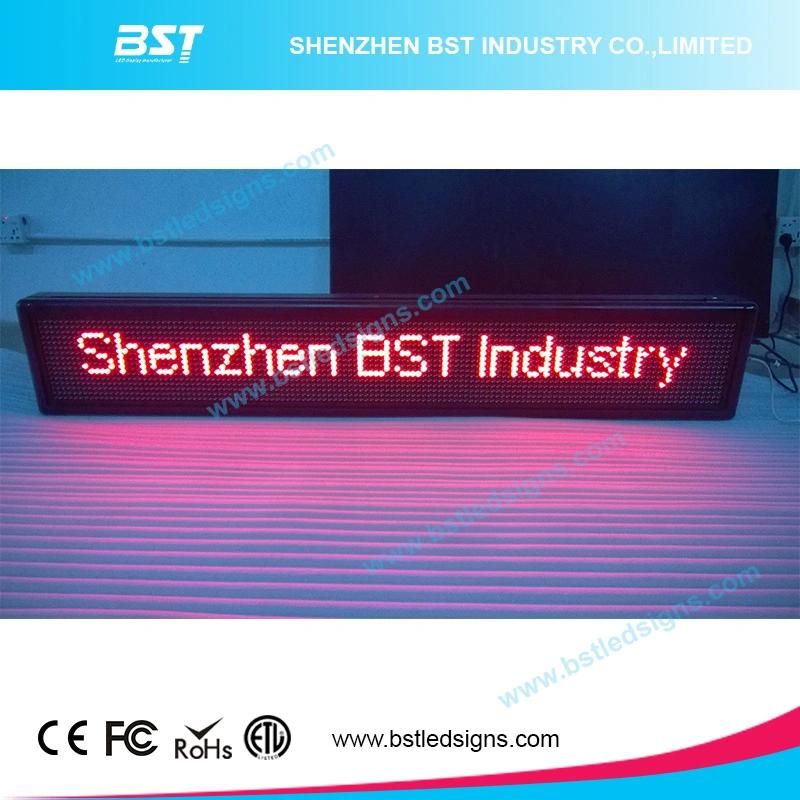

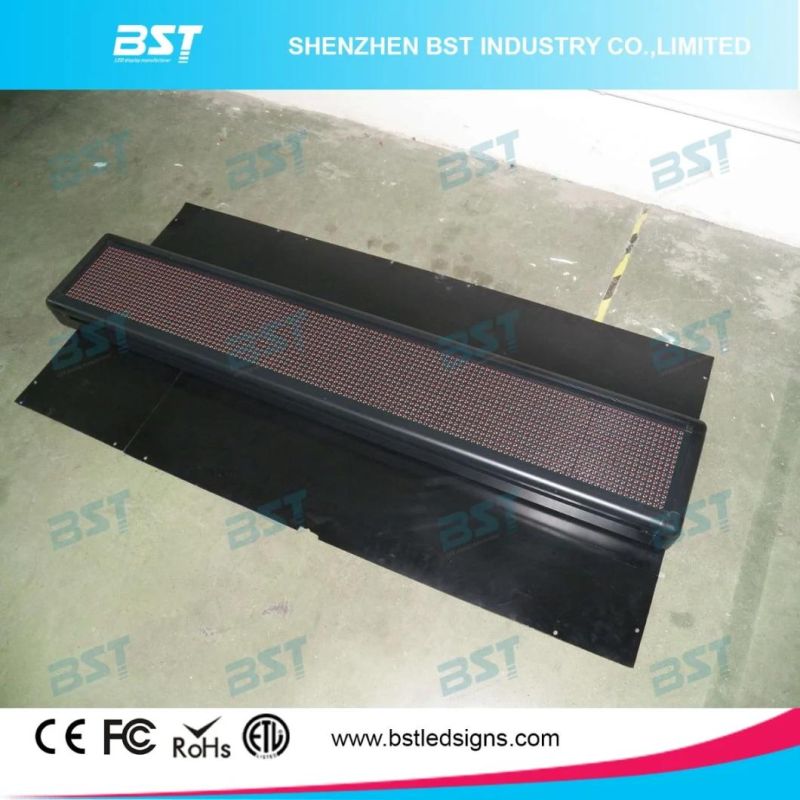

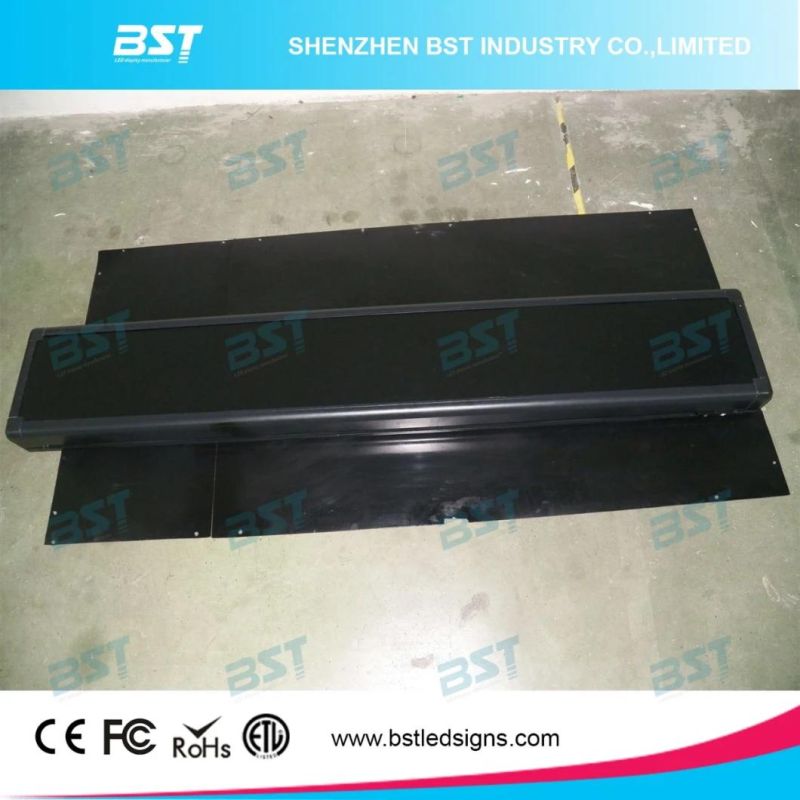

P10 DIP346 Red Color High Brightness Semi-outdoor LED Moving Sign for Message Display (Programmable)

P10 LED Moving Sign's Key Feature

1. Long viewing distance and wide viewing angle
2. Hight Brightness>4500 cd/sqm
3. Long lifespan> 50000hrs
4. Low power consumption and low maintenance cost
5. Full language support
6. Real time clock and calendar
7. Auto power on/off function
8 Multiple fonts and moving effects








This LED Moving sign have many communication methods for option: RS232, USB, RJ45, GSM, GPRS, etc.

Model	BST-M10
Pixel Pitch	10mm
Pixel Composition	R/RG/RGB
Pixel Density	10000 pixels/sqm
Module Size	320*160mm
Module Resolution	32*16
Driving Method	1/4 scan
Brightness	>4500cd/sqm
Viewing Angle	120degree
Best Visual Distance	10~50m
Input Voltage	AC 110~240V or DC 9V~36V
Power Consumption(Max.)	200w/sqm~800w/sqm
Working Temperature	-40~85
Working Humidity	10%~90%
Lifespan	100,000hrs
Communication Interface	RS232/RS485/RS422/RJ45/Wireless IR/USB/GSM/GPRS
Control Method	PC Software/ IR remote control/ USB disk/ SMS
