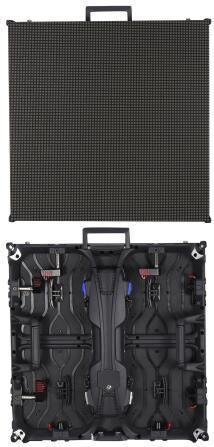

Pixel Pitch2.6mm (1R1G1B)LEDs TypeSMD1515 KINGLIGHTItemBrandLuminous IntensityWavelength     Red LED ChipKINGLIGHT40~60 mcd620~625 nmGreen LED ChipKINGLIGHT110~180 mcd514~535 nmBlue LED ChipKINGLIGHT25~45 mcd460~470 nmPixel Density(pixel/sqm)147456Brightness(cd/sqm)1000  Module Dimension (mm)250*250Module Resolution (pixels)96*96Cabinet Dimension(mm)500*500*80Cabinet Resolution(pixels)192*192Cabinet MaterialDie cast aluminumCabinet weight(kg)7Refresh rate(HZ)1920Scanning Method1/22Protection grade(fromt/back)IP30/IP30Max power consumption (W/sqm)424Grey Level14 bitAve. power consumption(W/sqm)168Viewing angleH:160 V:120Best Viewing Distance(m)3.25~8.7
Aftersale Service1) Two years warranty.
2) 24 hours online service, lifetime, free.
3) Depot repair service: during warranty, the Buyer only bear shipping cost back to factory. Out off warranty, the Buyer bear all shipping cost+raw material cost, free labor cost.
4) Experienced engineer service: during warranty, Buyer bear flight cost+accommodation. Out off warranty, Buyer bear flight cost+accommotation+engineer labor cost($200.00/day)+raw material cost.



About Us
We are an original factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.

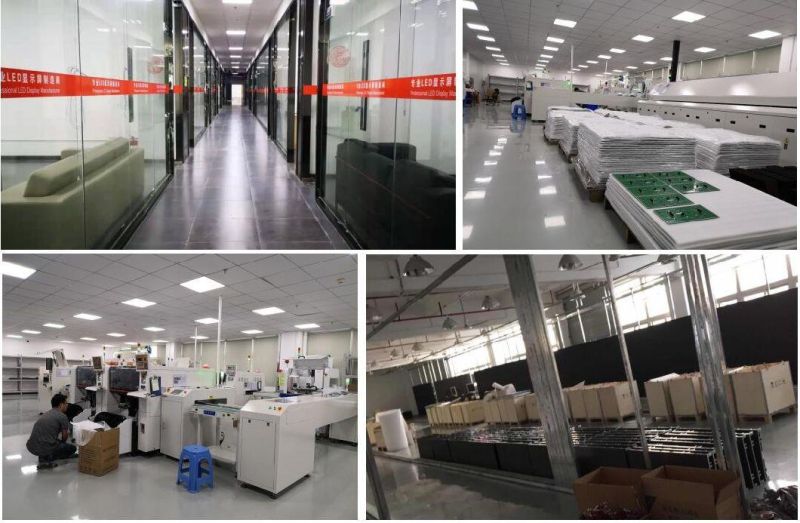

Factory
1) The offices, the corridor.               2) The SMD room.
3) The machines in SMD room.        4) The assembly room.

Product Certificates
Our products have passed through CE, CE-EMC Class-A/B, RoHS, ETL, ISO9001:2015, FCC and BIS.


 Exibition
