BST LED Display

BST-IR-3

BST-IR-4

    BST-IR-5

Pixel Pitch(mm)

3

4

            5

Pixel Density(dots/m²)

111111

62500

        40000Avr Power Consumption (W/M²)              ≤500              ≤500         ≤500

Brightness Max(cd/m²)

≥1000

≥1200

         ≥1500

Color Temperature(after calibration)K

6500

6500

          6500

Cabinet Material

Aluminum

Aluminum

        Aluminum

Weight(kg/Panel⁾

8

7.5

              7      Working Humidity          10%-95%         10%-95%        10%-95%      Driving Method             1/16             1/16           1/16 or 1/8

LED Type

SMD2121

SMD2121

          SMD2121

Horizontal/Vertical Viewing Angle(º)

H140º/V140º

H140º/V140º

        H140º/V140º

Recommended Viewing Distance(m)

1--100

1-100

            1--100

Power Supply

Single power

Single power

        Single power

Refresh Rate(Hz)

≥1920

≥1920

            ≥1920         Weight(kg/m²)             28            28           28

Grey Scale(bit)

R'G'B 16bit

R'G'B 16bit

           R'G'B 16bit

Frame Rate(Hz)

50/60

50/60

           50/60

Life Time(H)

≥100000

≥100000

            ≥100000

Protection

Indoor

Indoor

            Indoor        LED Chip           Epistar          Epistar           Epistar      Contrast            4000:1           4000:1         2000:1ProtectionIP40IP40IP40

Max Power Consumption(W/M²)

800

800

             800

Working Temperature

-20C°/40C°

-20C°/40C°

            -20C°/40C°

Module Size(W*H)(mm)

192x192

128x128

            160x160        Driving Chip        MBI5124       MBI5124       MBI5124

Control Input

DVI/HDMI/HDSDI

DVI/HDMI/HDSDI

     DVI/HDMI/HDSDI

Max Hanging(Vertical)

≥200kg

≥200kg

             ≥200kg

Application:

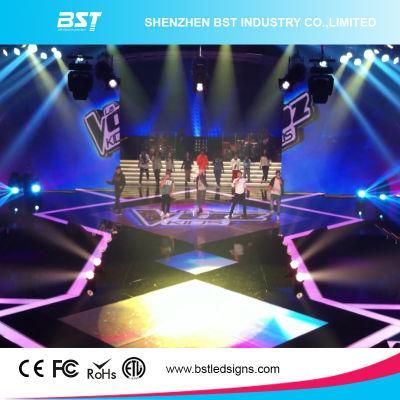

BST-SIGN's Full Color Rental Indoor LED Screen Panel can widely used in Art Exhibition, TV show, Tradeshow, Car show, theater, shopping mall, press conference and other events.
