• Model NO.：RPLT-6800
• Lifetime of Lamp：5000 Hours
• Type of Lamp：Metal Halide Lamp
• Auxiliary Sockets：2
• Fuel Consumption：2.0L,H
• Transport Package：Plywood Pallet , Plywood Case , Cartons
• Specification：ISO9001: 2000. CE
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：250sets,Month

Basic Info.

Model NO. RPLT-6800 Lifetime of Lamp 5000 Hours Type of Lamp Metal Halide Lamp Auxiliary Sockets 2 Fuel Consumption 2.0L/H Transport Package Plywood Pallet / Plywood Case / Cartons Specification ISO9001: 2000. CE Trademark Robust Power Origin China HS Code 94054090 Production Capacity 250sets/Month

Product Description

• Kubota origin D1105 Engine
• Full hydraulic tower lift
• 4*1000w Metal Halide lamps / 4*480w LED lamps
•LED lights 3 years warranty
• 100L plastic fuel tank against rust
• consumption 2L/h (up to 7 day runtime, based on 7 hour shifts)
• Control panel - state of the art
• maunal rotation
• optional 4 hydraulic stabilizer legs
• Emergency stop
• Auxiliary Sokets

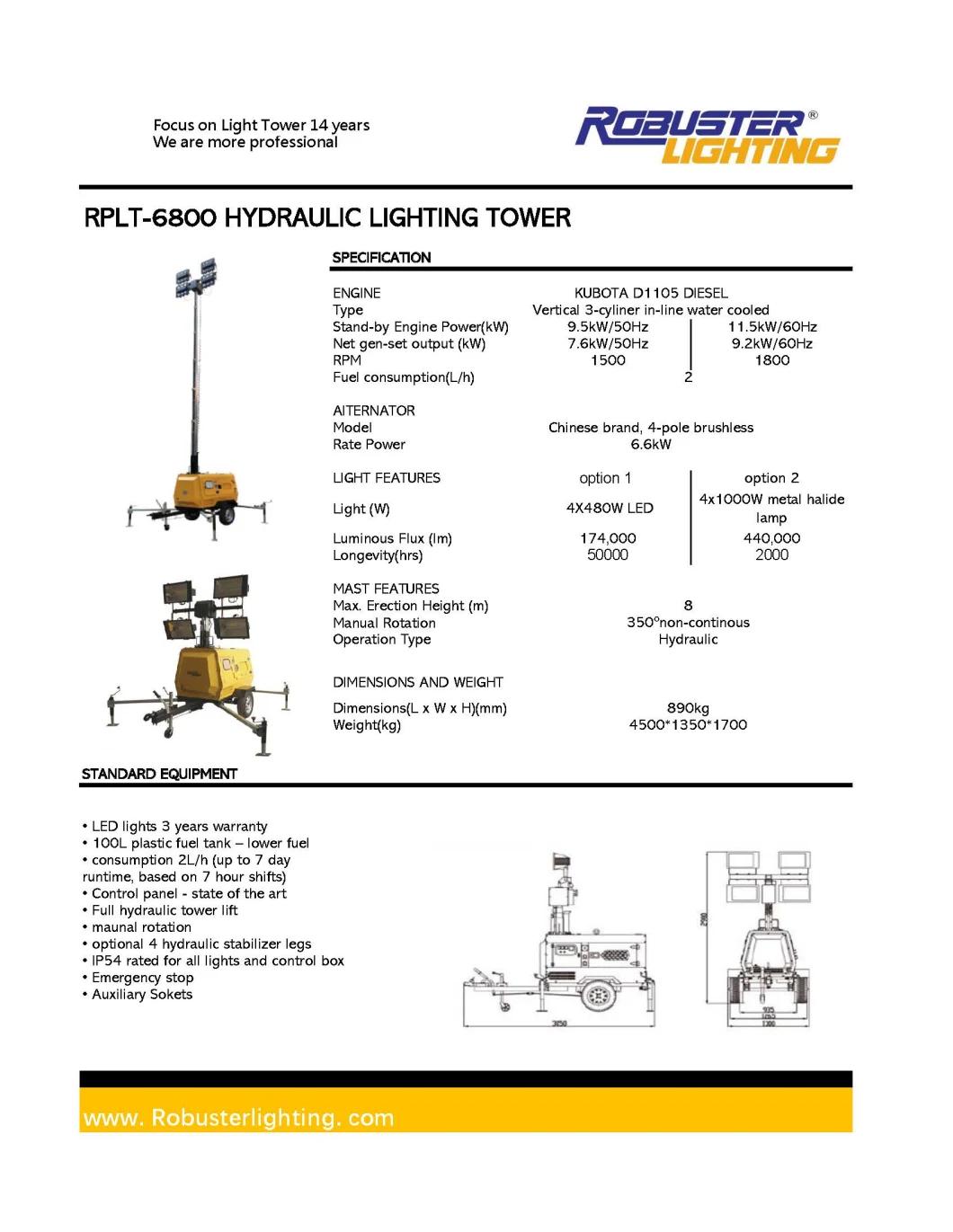

Model	RPLT6800K
Maximum  extension  of  mast	8  m
Raising/lowing  mast	Hydraulic
Turning  angle  of  light  bar	360  degrees
Power  of  lamps	4× 1000  watts
Type  of  lamps	Metal  halide  lamps
Generator  model	RD-10K
Engine  model	KUBOTA  D1105-BG  Diesel
Engine  type	3  cylinder, in-line, water-cooled
Engine  Aspiration	Natural
Alternator  type	4-pole, brushless, self-excitation
Rated  power	6.7 KW/50HZ    8.4 KW/60 HZ
Maximum  power	7.4 KW/50HZ    9.2 KW/60 HZ
Frequency	50 / 60 HZ
Phase	Single
Starting  system	12VDC
Fuel  tank  capacity	100  L
Continuous  operating  time	60  hours
Retracted  dimension	2560× 1300× 2450  (L× W× H  mm)
Net  weight	850  kg
Container  load  quantity	6  units  /  20ft    12  units  /  40ft
Options
Alternator	Leroysomer  or  Stamford
Engine	Kubota
Trailer	AL-KO(Germany)

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
