Basic Info.

Model NO. HM24V-SMD505030 Specification 10mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Features

High Quality products with full range of colors from 1800K-6500K; Provide 1BIN/2BIN, SDCM<3/ SDCM<5; CRI80, CRI90, CRI95+Branded 3M Tape for installation.


Product Dimension

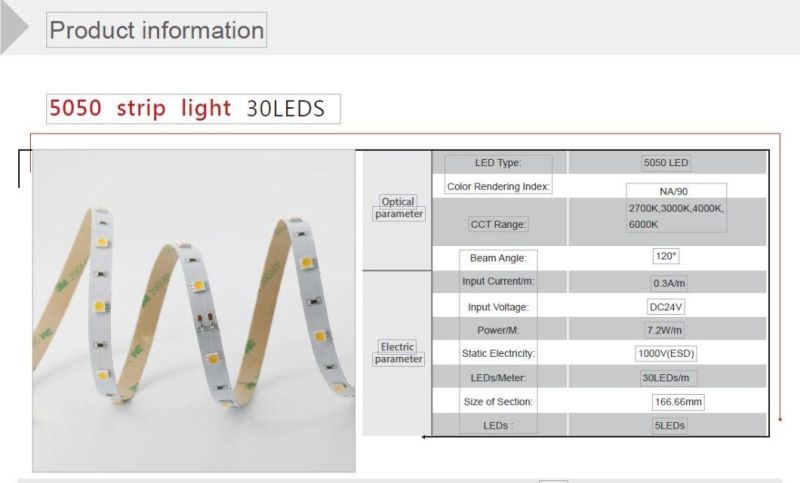

Optical parameter
LED Type: SMD5050
Color Rendering Index: 80
CCT Range:  2700K, 3000K, 4000K, 6000K
Beam Angle: 120°
Light Efficiency: 90.3/94.4/97.2/98.6Lm/w
Lumen Output/meter: 650Lm/m (217Lm/ft)
                                   680Lm/m (227Lm/ft)
                                   700Lm/m (233Lm/ft)
                                   710Lm/m (237Lm/ft)



Electric parameter

Input Current/m: 0.3A/m
Input Voltage: DC24V
Power/M: 7.2W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 30LEDs/m
Size of Section:  166.66mm
LEDs of Section: 5 LEDs

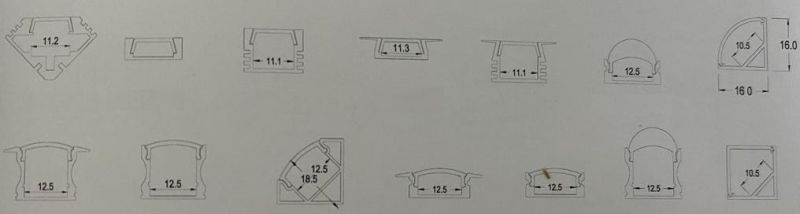

Recommended Profiles
