Basic Info.

Model NO. P2.6 System Operating Platform WIN98 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL Module Size 250X250mm Module Resolution 96X96dots Cabinet Size 500X500dots Cabinet Resolution 192X192mm Screen Brightness 1200nits Refresh Rate 1920Hz-3840Hz Compliance Ce/CCC/FCC/RoHS/ETL Maintenance Front/ Rear Service Controller Nova/ Linsn Frame Frequency 60Hz Transport Package Flight Case Specification 500x500mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

V SERIES PRODUCT FEATURES:

. Quiet fan design, excellent heat dissipation.

. Sidelocks design for better consistency and seamless assembly.

. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

. High-performance metal plate cabinet, concise cable.

. The sealed-type back cover, effectively prevent wrong operations from the amateur.



PRODUCT SPECIFICATIONS:

NO.	Item	Parameters
1	Model	V02
2	Pixel Pitch (mm)	2.6
3	Physical Density (dot/m2)	147456
4	LED Configuration	1R1G1B
5	LED Type	SMD2020
6	Module Size (mm x mm)	250x250
7	Module Resolution (PX x PX)	96*96
8	Module Power Consumption (W)	19
9	Drive Mode	1/21 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	160
11	Vertical Viewing Angle (Deg)	160
12	Brightness (cd/m2)	1500
13	Grey Scale	16
14	Refresh Rate (Hz)	≥1920
15	Cabinet Resolution (PX x PX)	192*192
16	Cabinet Max Power Consumption (W)	250
17	Cabinet Average Power Consumption (W)	500
18	Cabinet Size (mm x mm)	500*500*88mm
19	Cabinet Weight (Kg)	7
20	Cabinet Thickness (mm)	88
21	Cabinet Material	Die-casting aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP33
26	Working Environment	Indoor
27	Working Temperature (ºC)	"-20°- +40°
28	Operation humidity (RH)	10%-90%
29	Certificates	CCC, CE,RoHS

Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

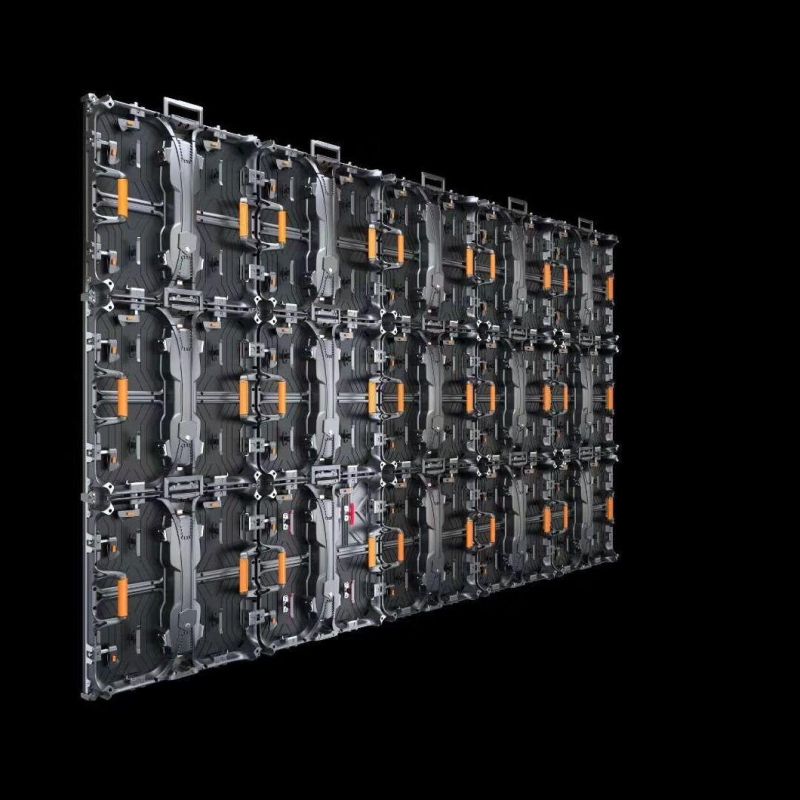

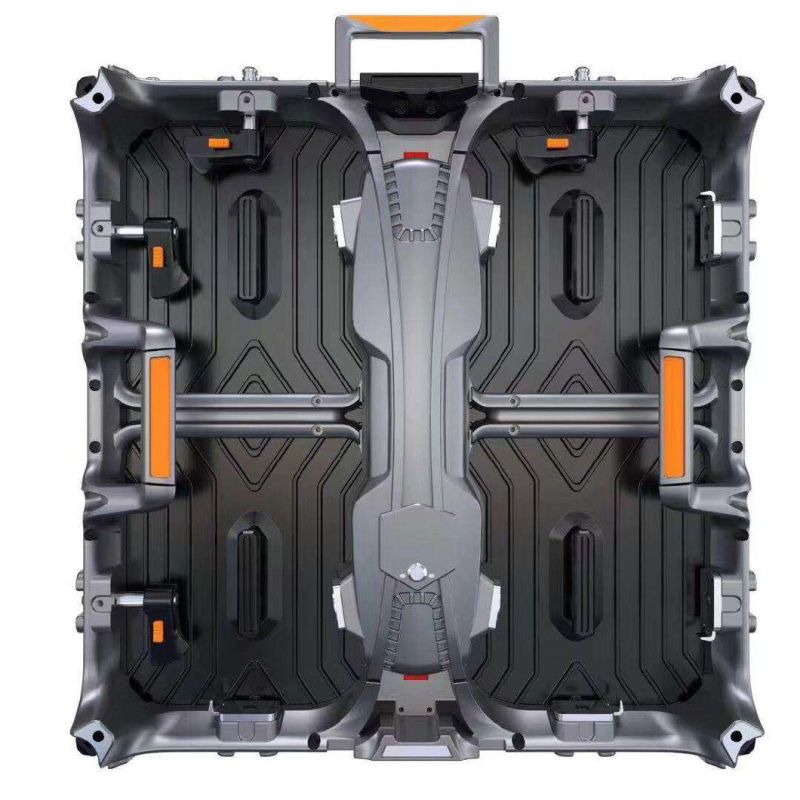

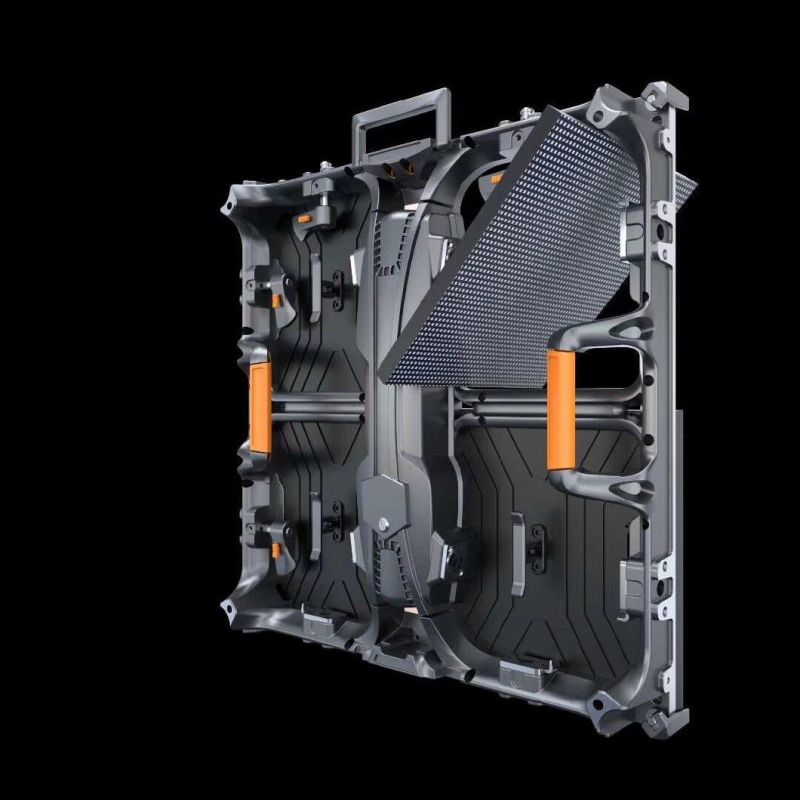

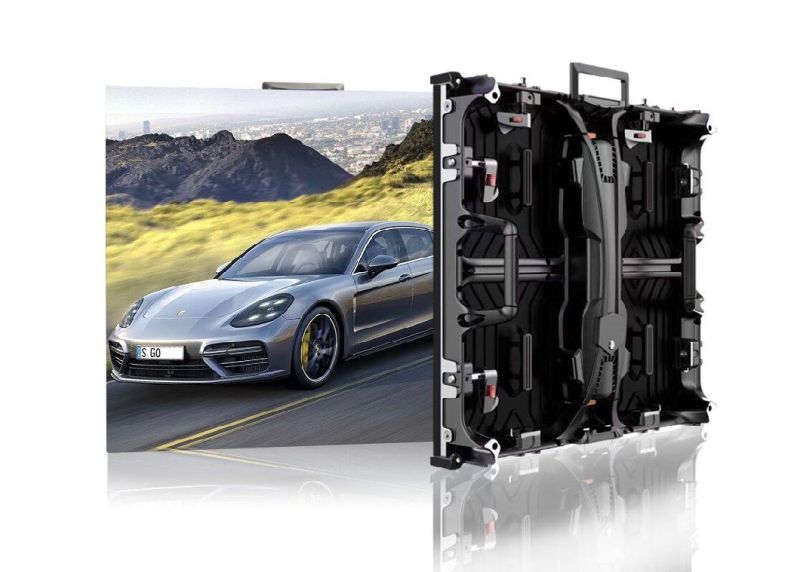

LED display products :

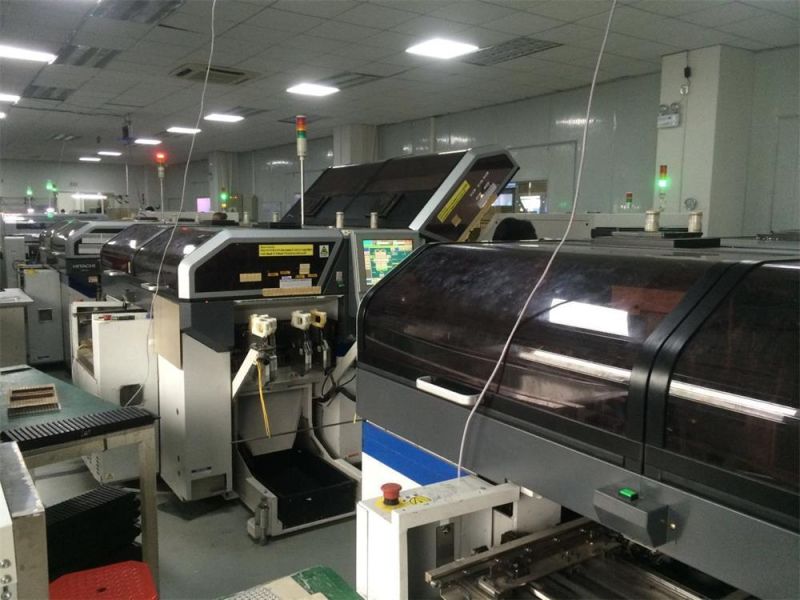

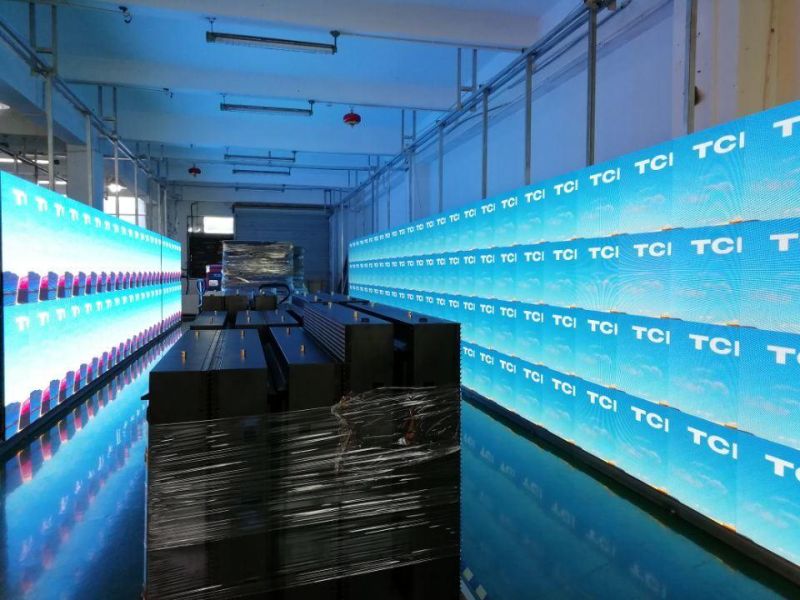

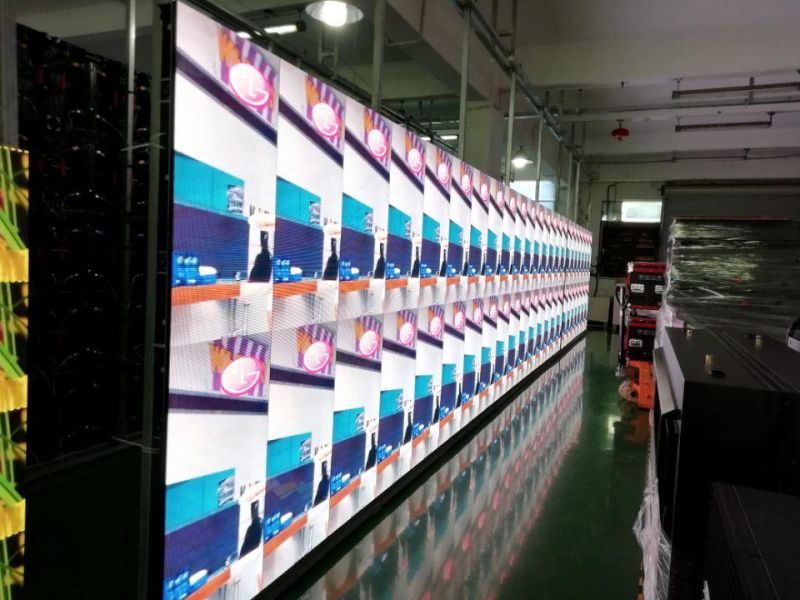

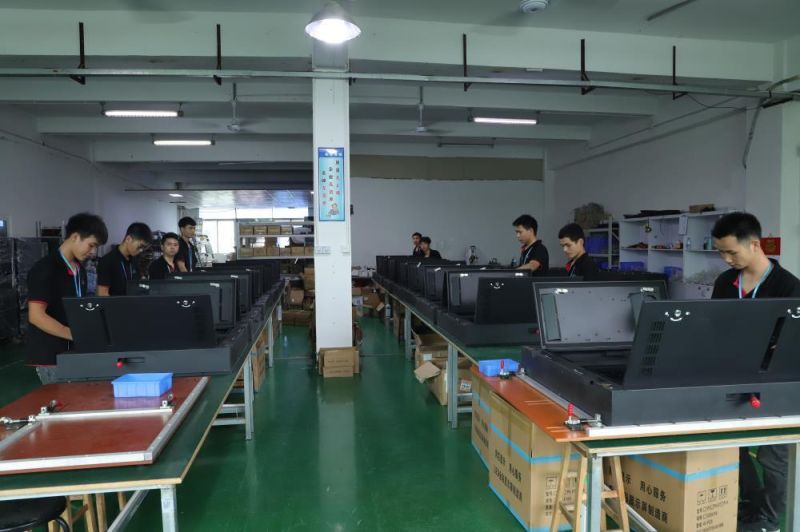

Factory Photos :

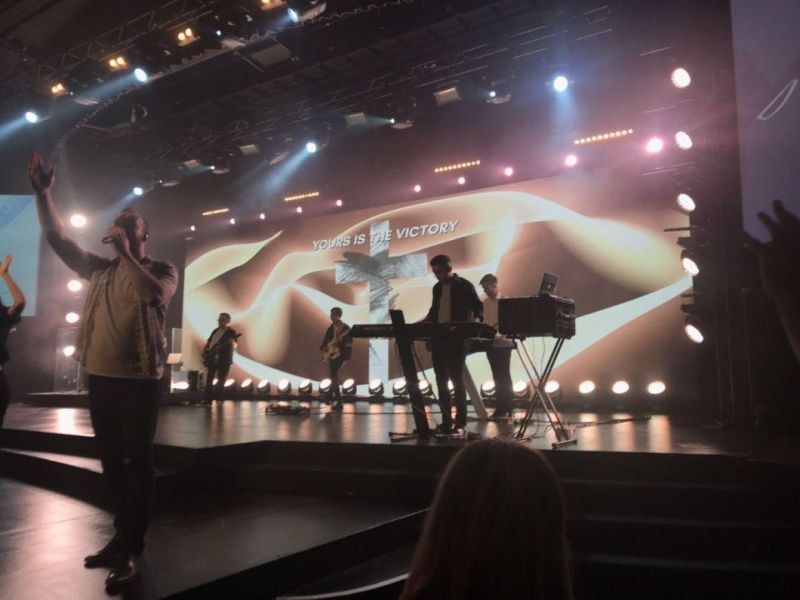

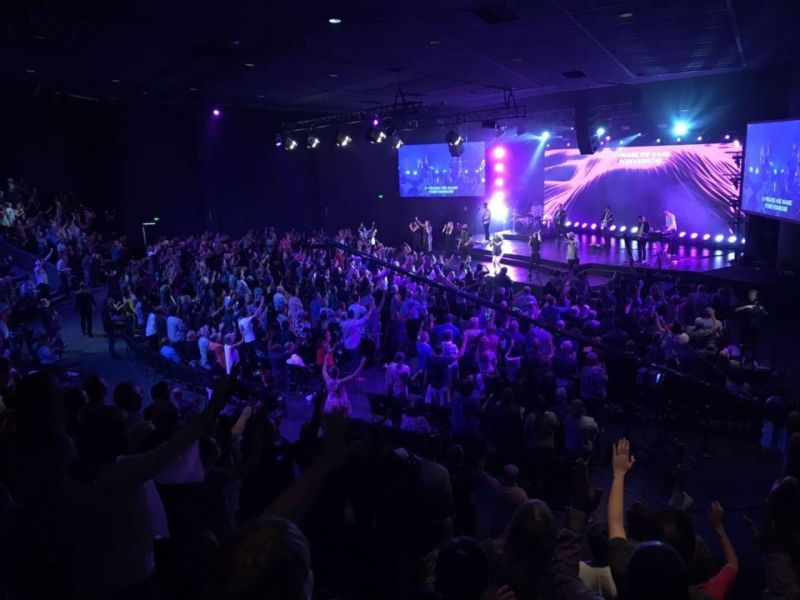

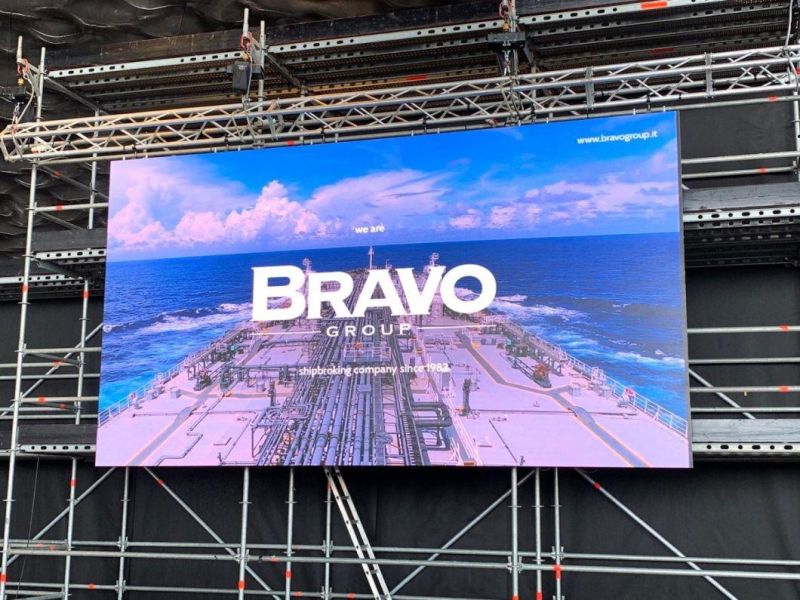

Different applications :





Certificates:
