Basic Info.

Model NO. P3mm System Operating Platform WIN98 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL Module Size 160X160mm Module Resolution 32X32dots Cabinet Size 960X960dots Cabinet Resolution 192X192mm Screen Brightness 6000nits Refresh Rate 1920Hz-3840Hz Compliance Ce/CCC/FCC/RoHS/ETL Maintenance Front/ Rear Service Controller Nova/ Linsn Frame Frequency 60Hz Transport Package Wooden Case Specification 960x960mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

V SERIES PRODUCT FEATURES:

. Quiet fan design, excellent heat dissipation.

. Sidelocks design for better consistency and seamless assembly.

. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

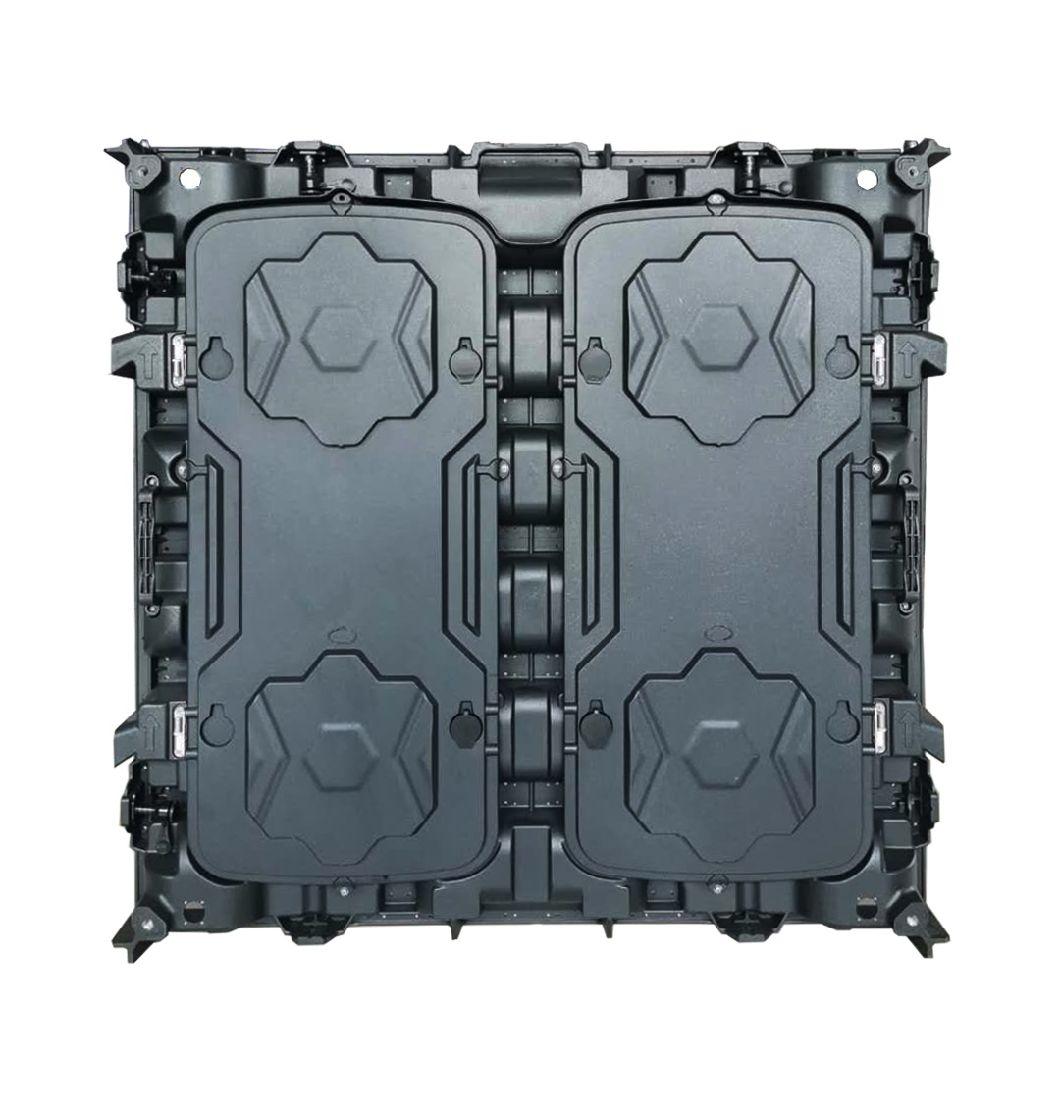

. High-performance metal plate cabinet, concise cable.

. The sealed-type back cover, effectively prevent wrong operations from the amateur.



PRODUCT SPECIFICATIONS:

NO.	Item	Parameters
1	Model	V05
2	Pixel Pitch (mm)	5
3	Physical Density (dot/m2)	40000
4	LED Configuration	1R1G1B
5	LED Type	SMD3535
6	Module Size (mm x mm)	192x192
7	Module Resolution (PX x PX)	64*64
8	Module Power Consumption (W)	19
9	Drive Mode	1/32 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	160
11	Vertical Viewing Angle (Deg)	160
12	Brightness (cd/m2)	1200
13	Grey Scale	14
14	Refresh Rate (Hz)	≥1920
15	Cabinet Resolution (PX x PX)	192*192
16	Cabinet Max Power Consumption (W)	530
17	Cabinet Average Power Consumption (W)	177
18	Cabinet Size (mm x mm)	960*960*88
19	Cabinet Weight (Kg)	26
20	Cabinet Thickness (mm)	120
21	Cabinet Material	Die-casting aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP65
26	Working Environment	Outdoor
27	Working Temperature (ºC)	"-20°- +40°
28	Operation humidity (RH)	10%-90%
29	Certificates	CCC, CE,RoHS

Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

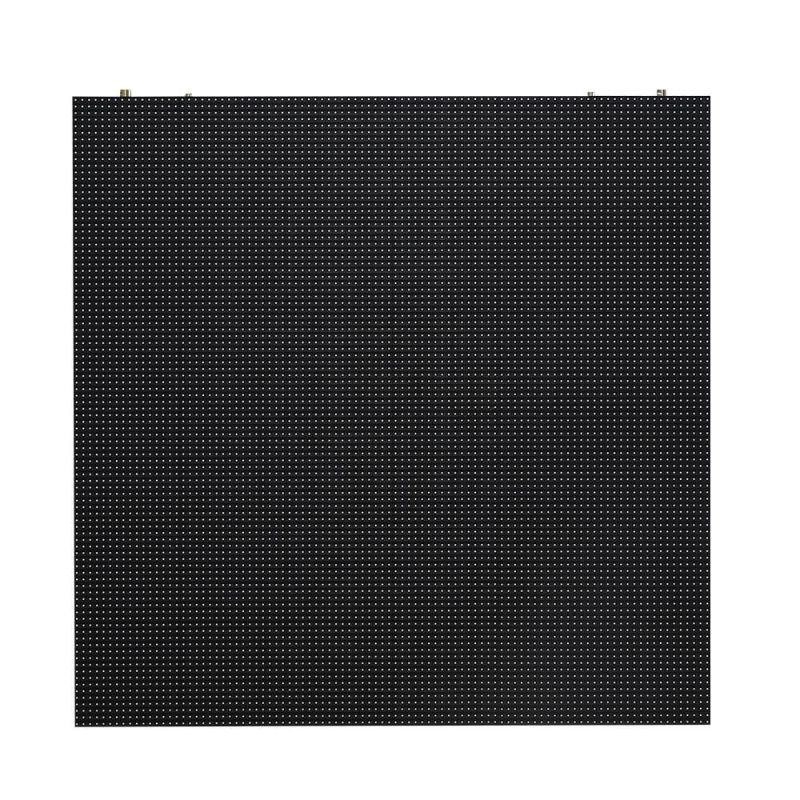

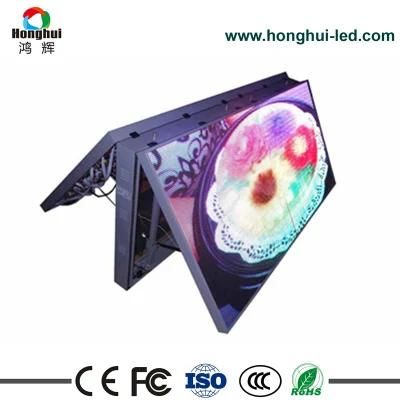

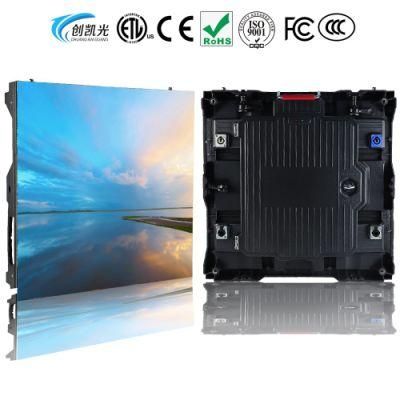

LED display panels :

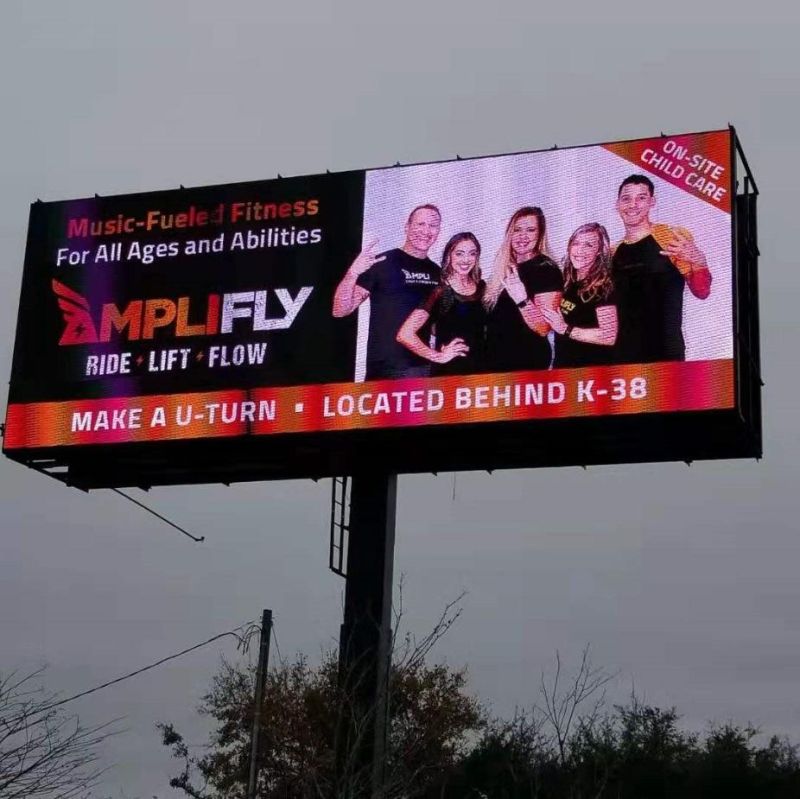

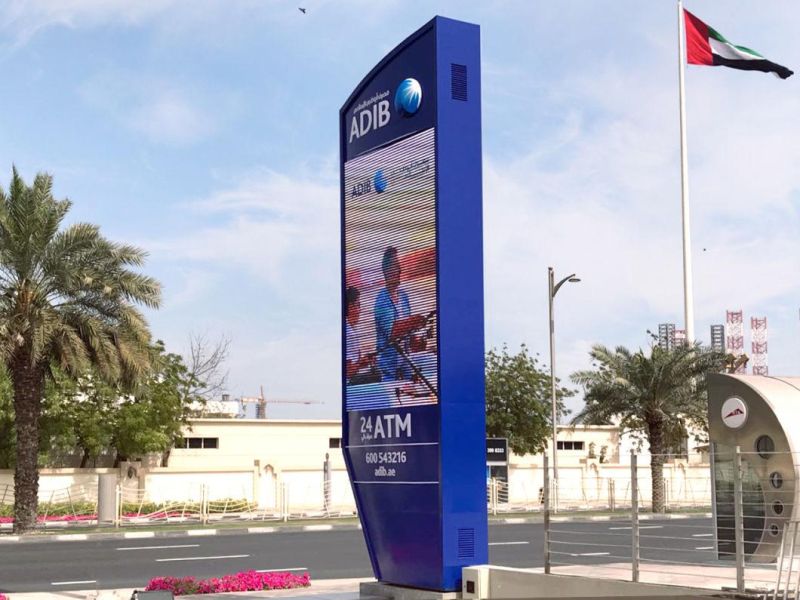

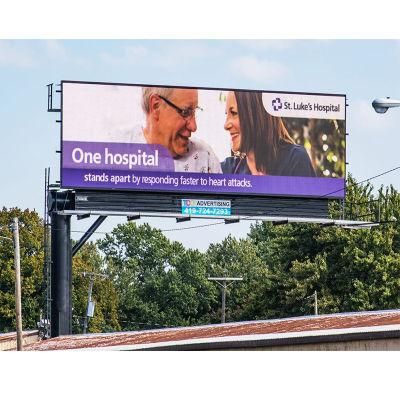

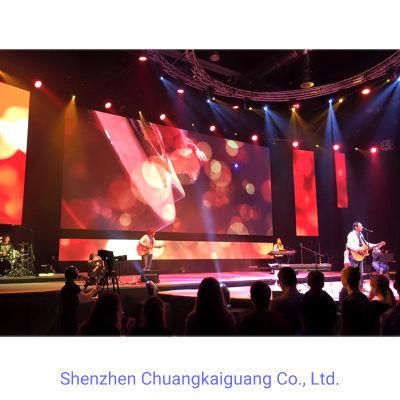

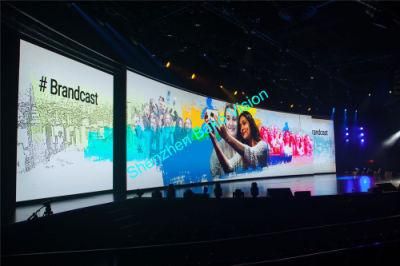

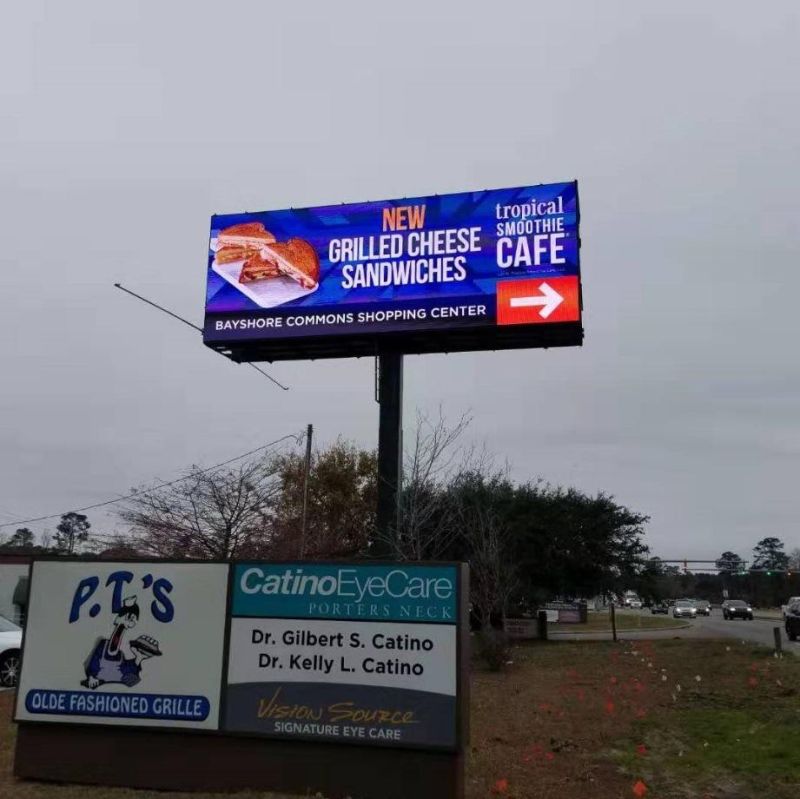

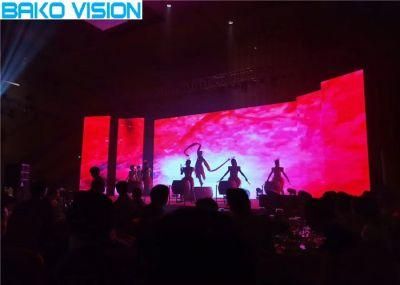

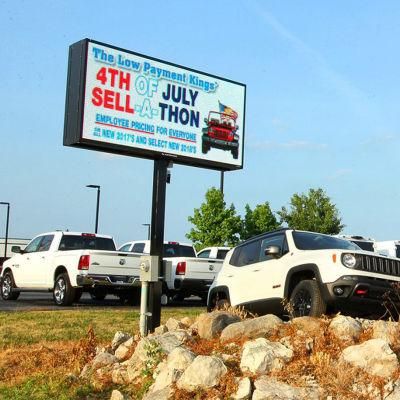

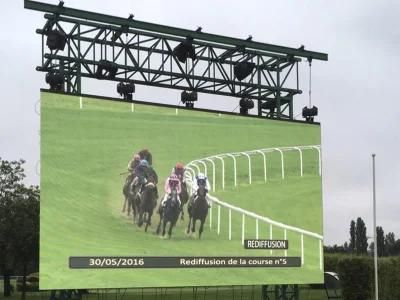

LED display screens:

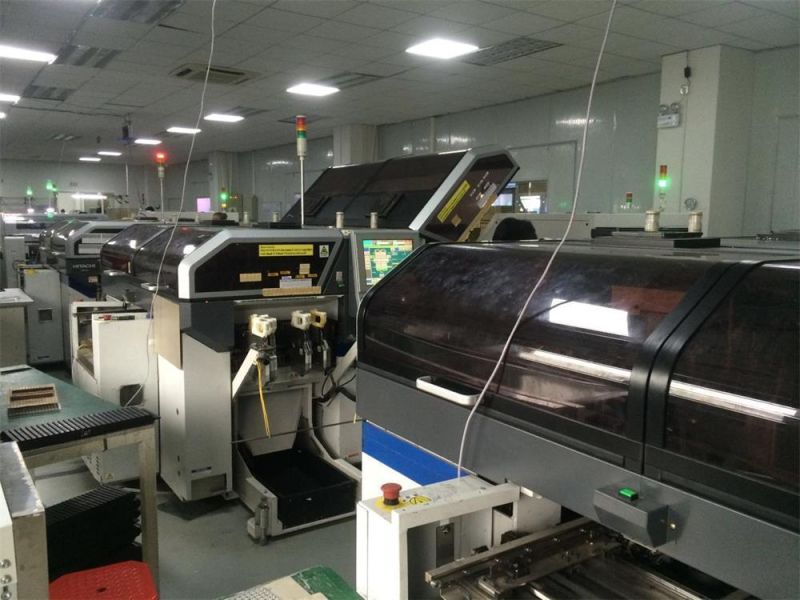

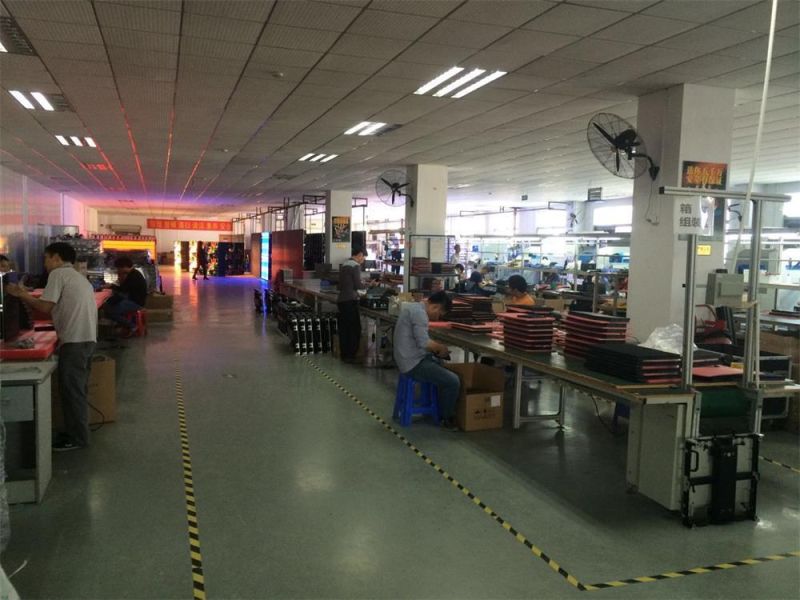

Factory photos

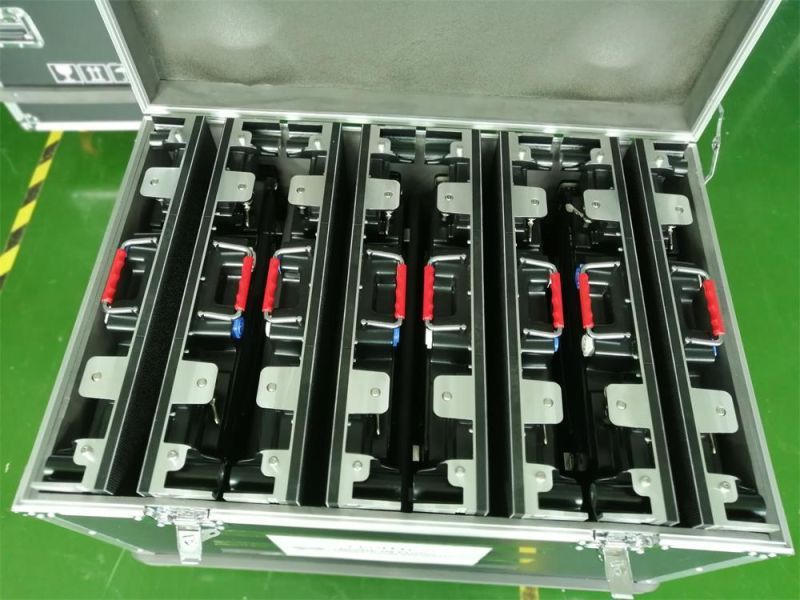

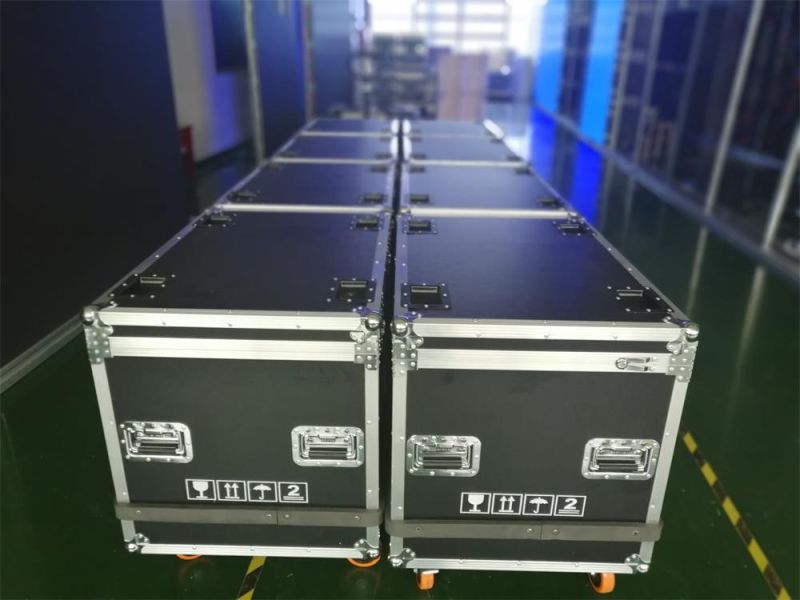

Flight case Package:








Certificates:
