Seamless P3.91 HD Indoor Rental LED Display with 50X100cm Panel
Shenzhen Bako Vision Technology Co., Ltd.Base Info
Description
Basic Info.
Model NO. P3.91 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP40 Certification CE, RoHS, CCC, ETL Pixel Configuration SMD2121 Panel Dimension 500X500X80mm or 500X1000X80mm Panel Material Die-Casting Aluminum Processing 16bit Contrast Ratio 4000:1 Refresh Rate >1920Hz Expected Lifetime 100000 Hours Servicing Front/Rear Power Supply Meanwell Warranty 2 Years LEDs Nationstar or Kinglight Module Size 250X250mm Brightness >1200 Nits Transport Package Flight Case or Plywood Case Specification 50x100cm Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 10, 000sqm/MonthProduct Description
Seamless P3.91 HD Indoor Rental Led Display with 50x100cm Panel
P3.91 HD Indoor Rental Led Display Description

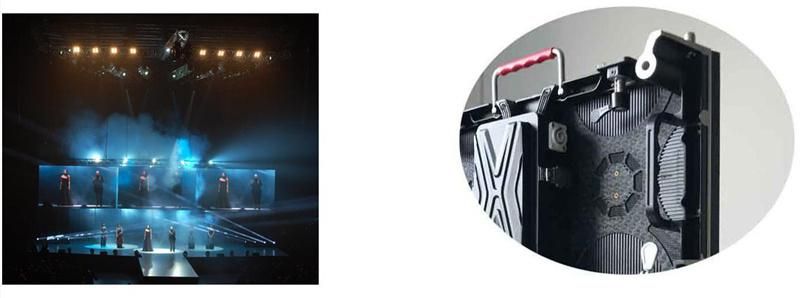

User-Friendly, Indoor Rental LED Display
Lightweight Large Format Cabinet
Standard Cabinet Size: 500x500x80(mm) or 500x1000x80(mm)
Standard Module Size: 250x2520mm, Modules can be interchanged
Curvilinear, Concave, Convex
P3.91 HD Indoor Rental Led Display Feature
Unsurpassed Color Uniformity Fast Installation and Easy Maintenance
Unique color calibration process Hanging and stacking are available
Tight bin selection for LED wavelength Cable-less between modules
Deep black levels, contrast ratio 4000:1 Front and rear access, Tools free installation
Slim, Light Weight and Quiet Smart Concave and Convex
500mmx500mm or 500mmx1000mm cabinet Cabinets are arc-able
80mm thickness, 7 KG per cabinet 0°-10° concave and convex degree
Fanless design
1 person job
| BIR-II-3 | |
| Physical Pitch(mm) | 3.91mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 65.536 pixels/sqm |
| Module Dimensions (W × H) (mm) | 250x250 |
| Panel Dimensions (mm) | 500x500x80/500x1000x80 |
| No. of Modules Per Panel (W × H) | 2x2/2x4 |
| Physical Resolution of Module (W x H) | 64x64 |
| Physical Resolution of Panel (W x H) | 128x128/128x256 |
| Panel Material | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg / panel |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 325 W / sqm |
| Max Power Consumption | 780 W / sqm |
| Operating Temp/Humidity | -10°-60ºC/10%-60% |
| Storage Temp/Humidity | -30°-60ºC/10%-60% |
| Refresh Rate | >1,920 Hz |
| Brightness | ≥1,200nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |

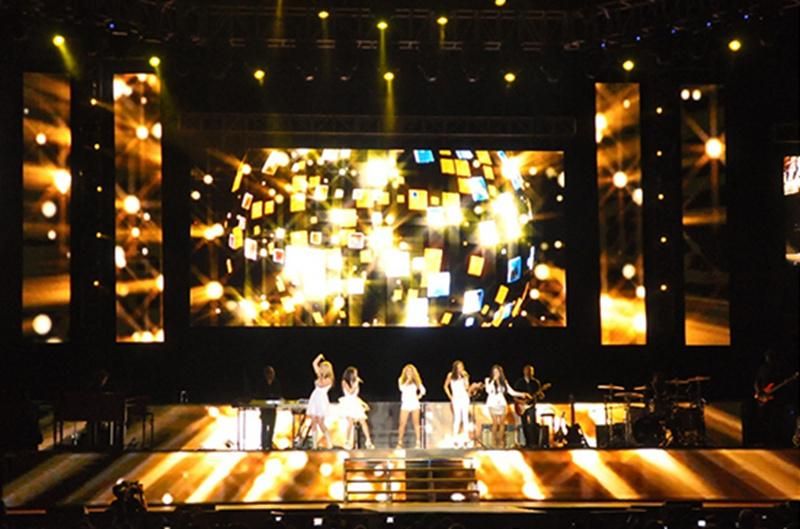

Case
Project Accomplished: June 12, 2016
Location: US, American Idol Show
Screen Dimension: 256m²
Product Model: BIRI-3, P3.91 Rental Led Display
FAQ:
Q1. Are you a trading company or manufacturer?

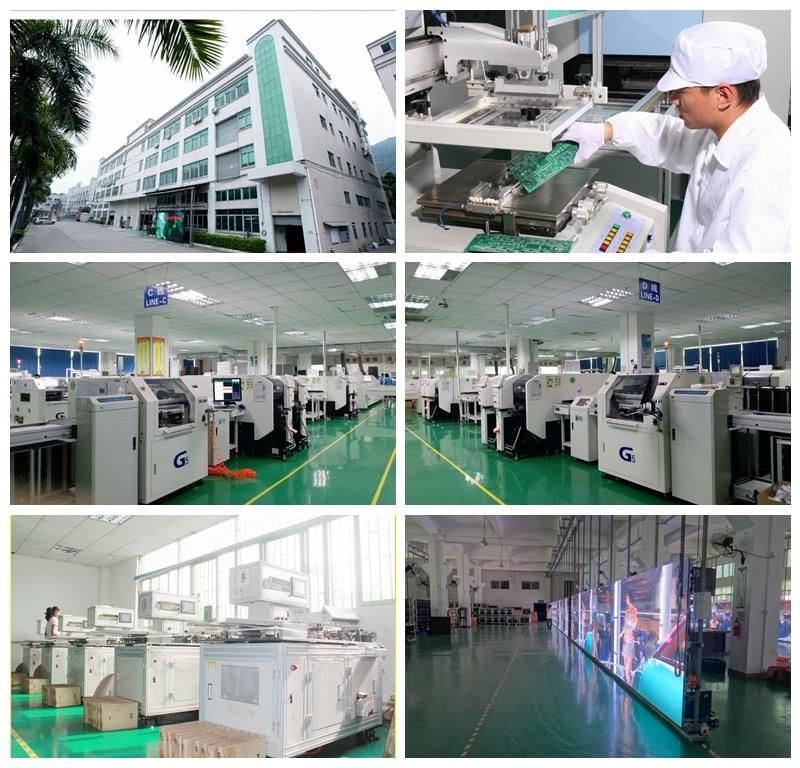

A: We are a professional led display manufacturer OVER FOURTEEN YEARS.
Q2. What's your payment term?
A: T/T, L/C, Western Union or others
Q3. Do you provide samples ? is it free?
A: We can provide the sample if we have ready parts in stock, but the customers need to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 working days for batch order
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
