Outdoor P10 DIP Full Color LED Display Screen/Display Panel

Shenzhen Chuangkaiguang Co., Ltd.

Base Info

Description

Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving method1/4 constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots

 Cabinet specifications:
 Cabinet size960mm*960mm*150mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.202 / MAX.599

Screen parameters:
 No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness≥7500cd/sqm6Drive Method1/4 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption220W/sqm16Max. Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)23Storage Temp/Humidity-40ºC~60ºC, 10~95%RH24Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV25MTBF≥10000hours26Lifetime(Normal Temp)≥100,000Hours

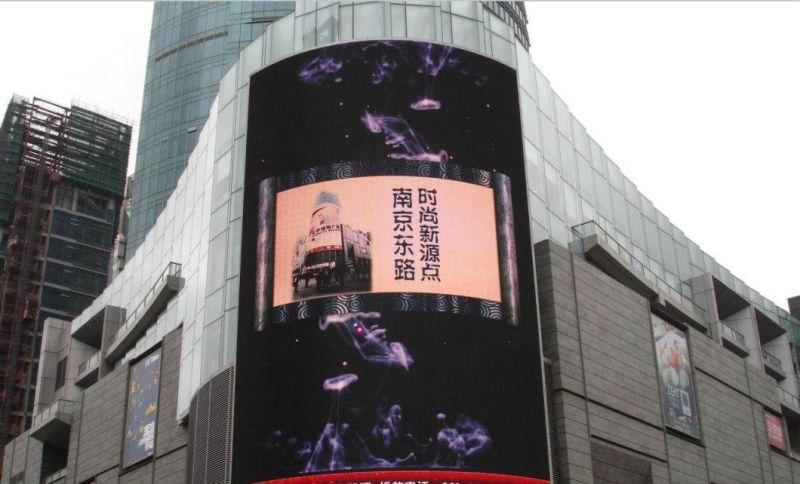

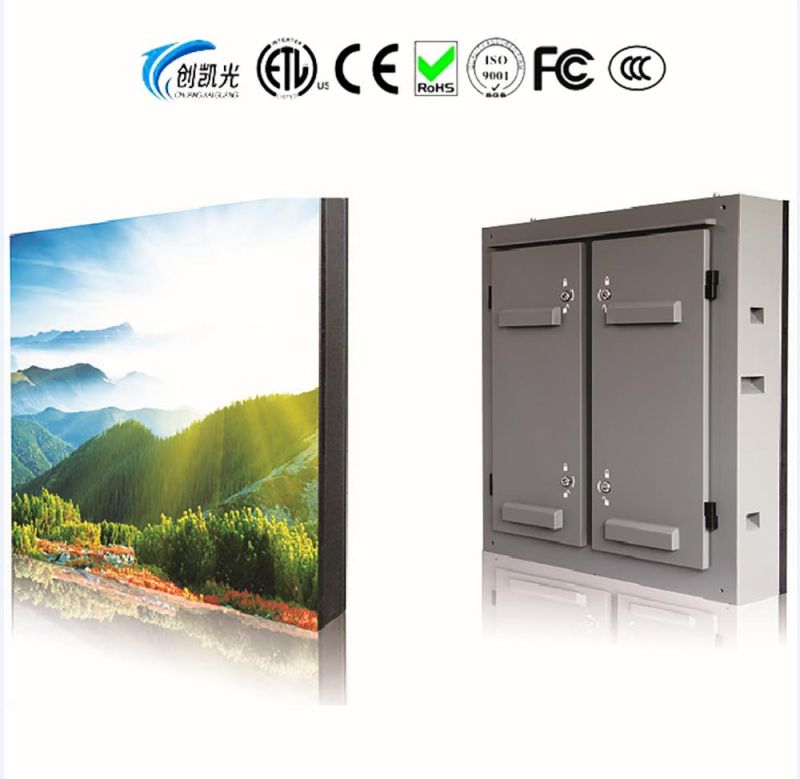

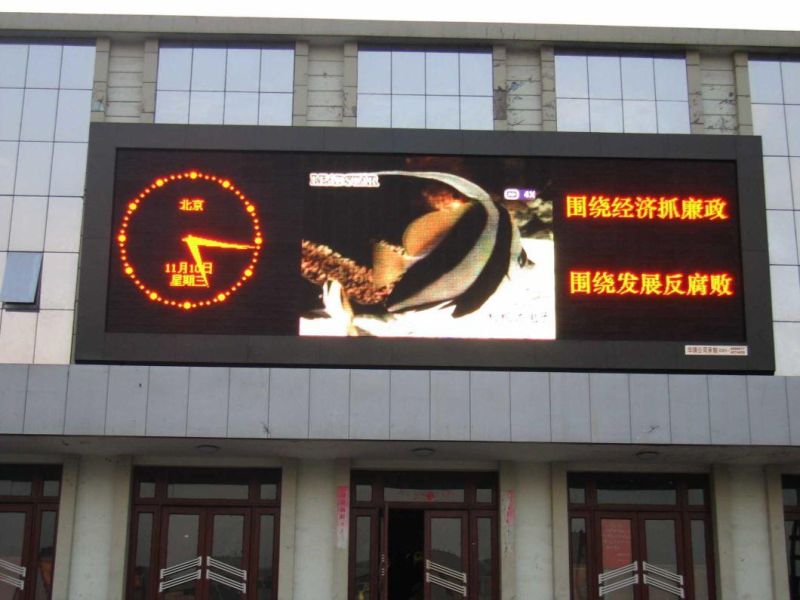

Product Pictures:

Outdoor P10 DIP Full Color LED Display Screen/Display Panel
Outdoor P10 DIP Full Color LED Display Screen/Display Panel
Outdoor P10 DIP Full Color LED Display Screen/Display Panel
Outdoor P10 DIP Full Color LED Display Screen/Display Panel

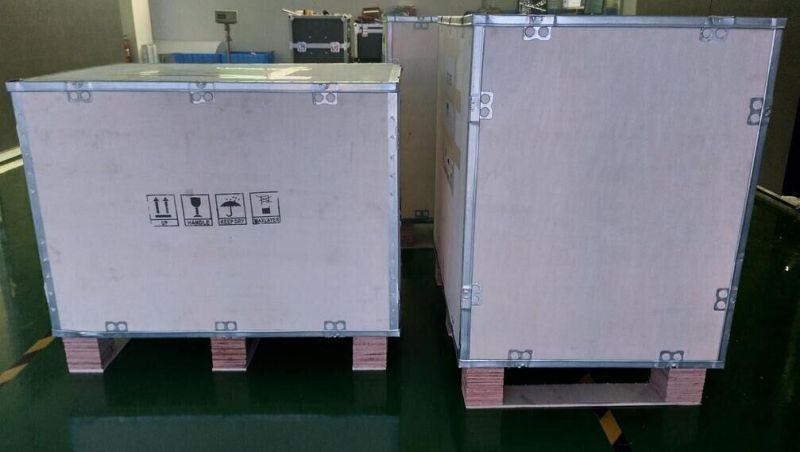

Package:

Outdoor P10 DIP Full Color LED Display Screen/Display Panel

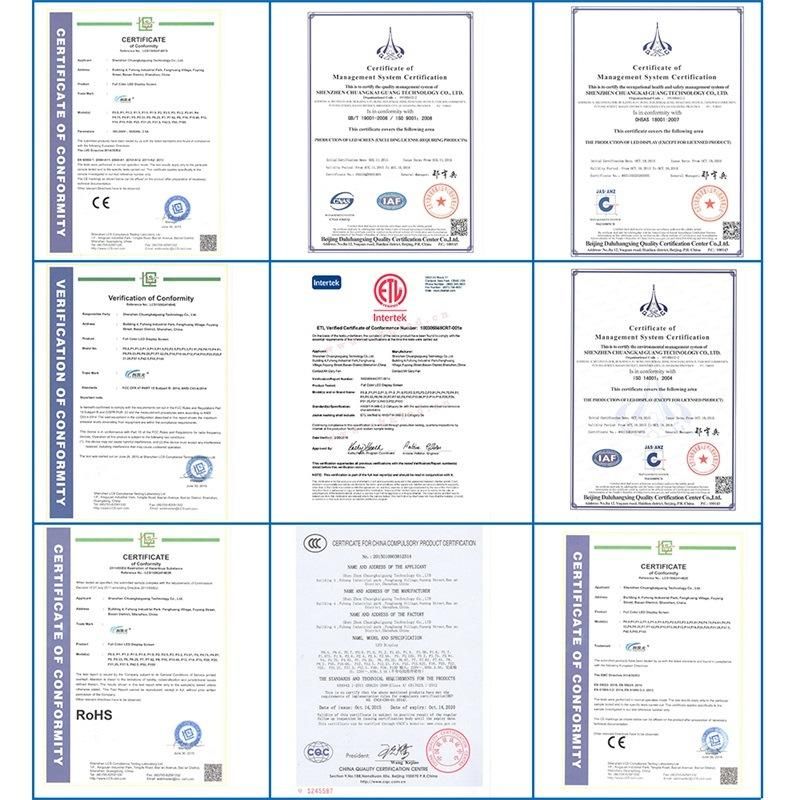

Certificates:

Outdoor P10 DIP Full Color LED Display Screen/Display Panel
