Parameters

Drive Mode:

1/32 Constant Current Drive

Horizontal Viewing Angle (Deg):

140

Vertical Viewing Angle (Deg):

140

Brightness (cd/m2):

1200

Grey Scale:

14

Refresh Rate (Hz):

≥1920

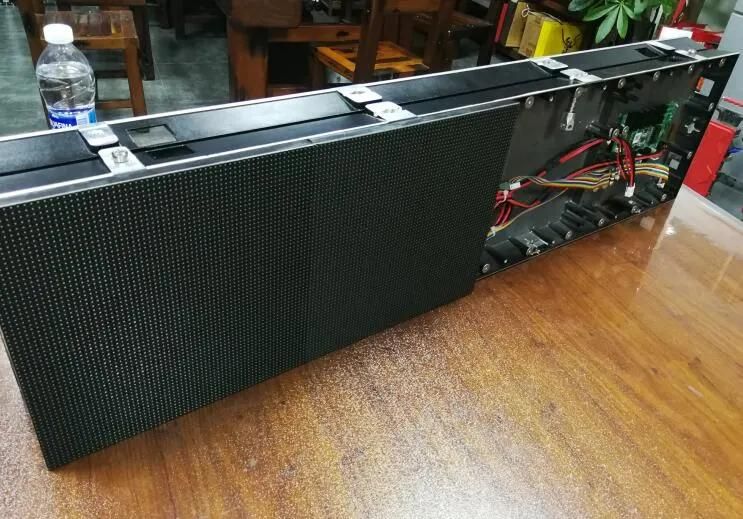

Cabinet Resolution (PX x PX):

100*400

Cabinet Max Power Consumption (W):

600

Cabinet Average Power Consumption (W):

200

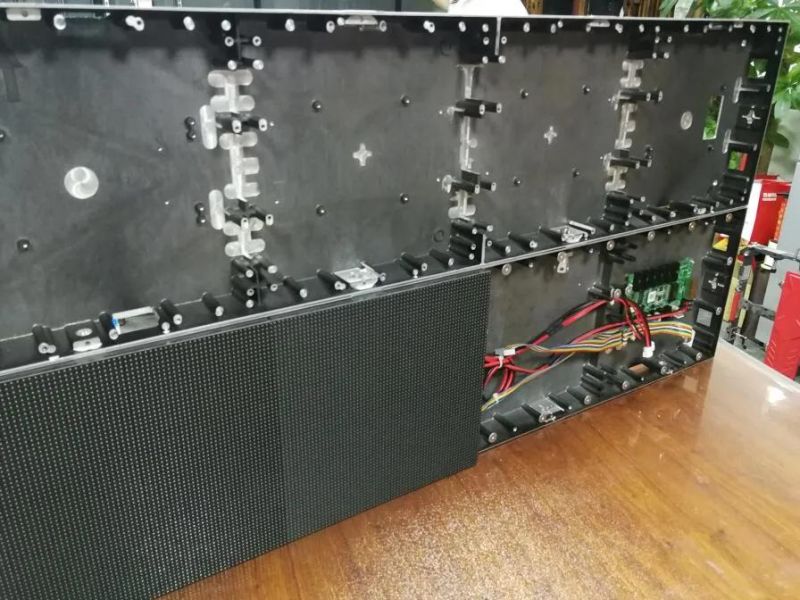

Cabinet Size (mm x mm):

250*500/250*750/250*1000

Cabinet Weight (Kg):

6

Cabinet Thickness (mm):

120

Cabinet Material:

Die-casting Aluminum

Color (M):

>16.7

Input Voltage (V):

AC 110V~220V+/-10%

Refresh Frame Frequency (Hz):

60

Protection Level:

IP31

Working Environment:

Indoor

Working Temperature (ºC):

"-20°- +40°

Operation humidity (RH):

10%-90%

Certificates:

CCC, CE,RoHS

CKGLED FACTORY WORKSHOP:

In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.

(1) Every batch of LED will get a strict testing to exam its performance and quality.

Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance

(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.

Baking environment:
130ºC
2 hours

(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality




48 hours high brightness aging for the LED module and 72 hours aging  for finished displays,
in order to guarantee the final products steady performance and long MTBF.
