Basic Info.

Model NO. HM24V-SMD505060-RGB+W Specification 12mm Width Trademark OEM Origin China Production Capacity 50000meters/Year

Product Description

Feature: You can choose between 16 million color combinations through your RGB controller or your RGB software and make a bright uniform lighting.

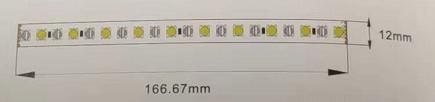

Product Dimension



Optical parameter

LED Type: 5050RGB
Color Rendering Index: NA
CCT Color:   Red: 620nm-625nm
                     Green: 520nm-525nm
                     Blue: 460nm-470nm

Beam Angle: 120°



Electric parameter

Input Current/m: 0.15/0.58A/m
Input Voltage: DC24V
Power/M: 2.4/7.2/14.4W/m
Static Electricity: 1000V(ESD)
LEDs/Meter: 60LEDs/m
Size of Section:  166.67mm
LEDs of Section: 10 LEDs

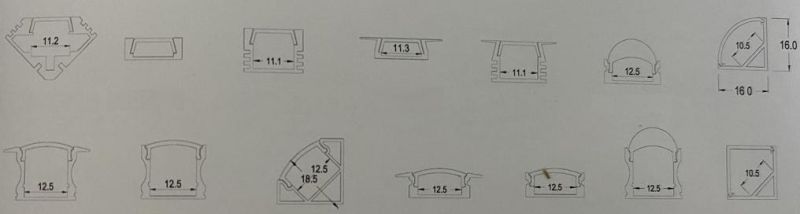

Recommended Profiles

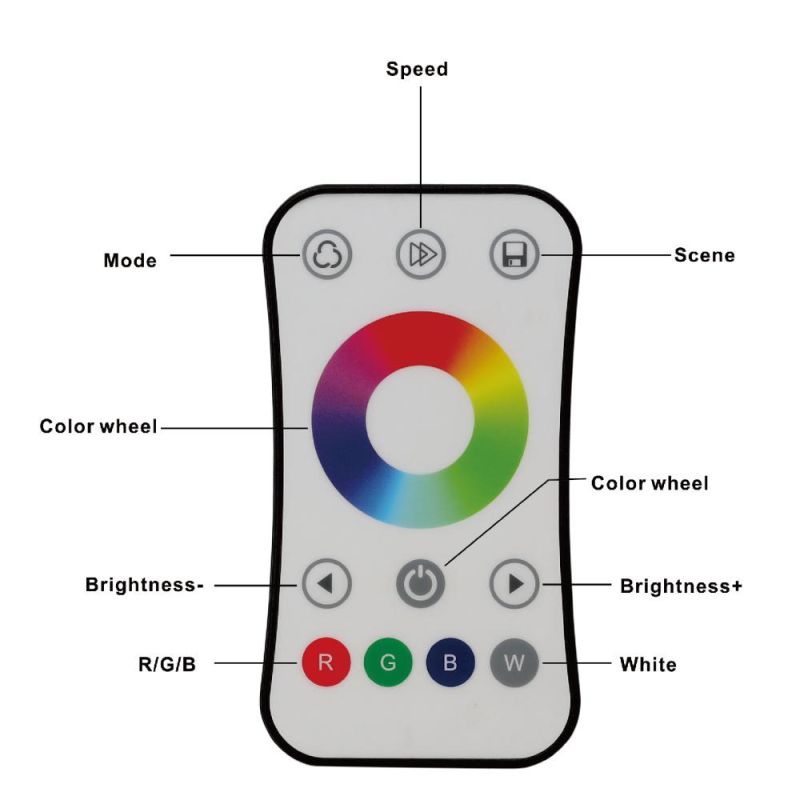

RGB Controller Recommended
