Basic Info.

Model NO. p20-Outdoor Pixel Density 2500dots/M2 Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, SGS Warranty 3 Years Module Size 160*320mm Best Viewing Distance 16-300m IP Grade IP 65 LED Chip Episar From Taiwan Life Span 100,000hours Mtbf 10000hours Refresh Frequendcy 350Hz Frame Frequency 60Hz Transport Package Anti-Shaking Wooden Case or Air Flight Case Specification CE, RoHS, UL, SGS Trademark FOXGOLDEN Origin Guangdong, China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

P20 Full Color Waterproof Outdoor LED Display

1. Excellent visual effect
2. Best factory price
3. CE, RoHS, UL certification
4. 5 years warranty
5. Good service
A. Good quality, the brightness is adjustability
B. Wide viewing angle
C. Pure white balance, good consistency
D. More than 100, 000hours life span
E. Easy learn and operate
F. Our engineers are free to help installing and adjusting display

Basic data:
There is DIP, SMD, and Dotmatrix LED display for customer choosing.

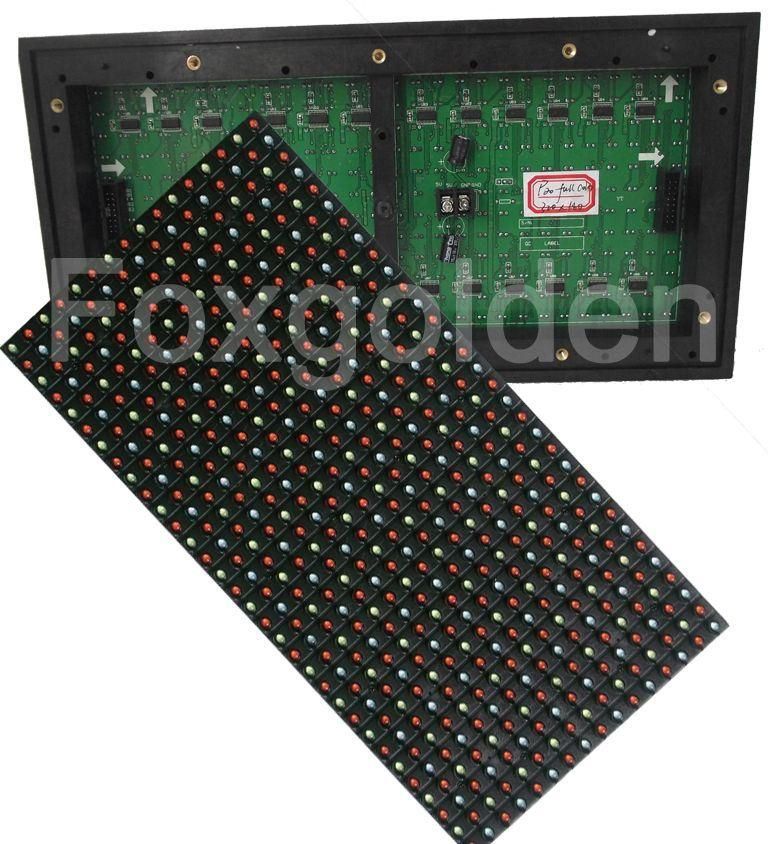

This module can be change into Pixels as followed to cater for various needs: P4, P4.75, P6, P7.62, P10, P12, P14, P16, P20, P25, P31.5, P40, P80.

Numbers	Technical indexes	Specification
1	Pixel pitch	20mm
2	Module size	160mm× 320mm
3	Module resolution	8× 16
4	Module density	2500dots/sqm
5	Pixel configuration	2R1G1B
6	Red wavelength	625± 2nm
7	Green wavelength	525± 2nm
8	Blue wavelength	470± 2nm
9	Colors	16777216
10	Best viewing distance	16m---300m
11	Horizontal viewing angle	140°
12	Vertical viewing angle	70°
13	Maximum power consumption	≤ 1200W/m2
14	Brightness	≥ 10000cd/m2
15	Gray scale	16bits of per color
16	Color temperature	8600K

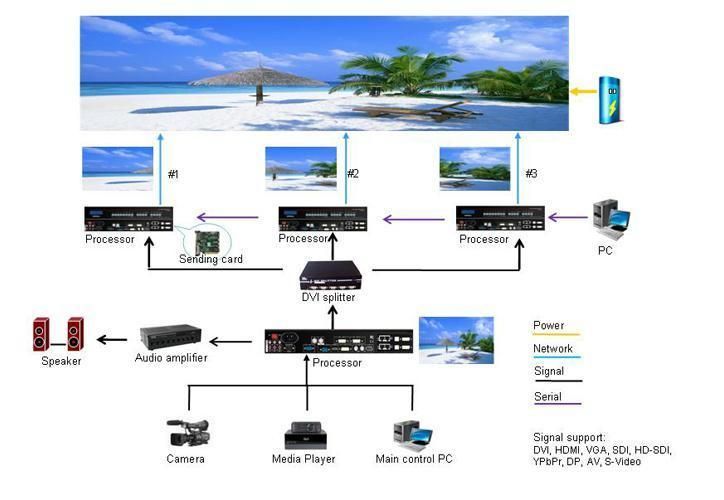

17	Control method	Synchronization or Asynchronization
18	Driving method	Constant scanning
19	Frame frequency	60Hz
20	Refresh frequency	≥ 300 Hz
21	Working voltage	AC220V/110V± 10%
22	IP grade	IP67
23	Working temperature	-20° C~80° C
24	MTBF	More than 10, 000 hours
25	Life span	More than 100, 000hours
