Basic Info.

Model NO. UHD-1.2 System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Shopping Guide IP Rating IP40 Certification CE, RoHS, UL, CCC, ETL Shipment by Sea/Air/Land Carriage LED Type SMD 0909 Brightness >1200 Nits Colors 281 Trillion Refresh Rate >1920 Hz Lift Span >10000 Hours Transport Package Wooden Crate or Flight Case Origin China HS Code 8528591090 Production Capacity 6000m2/Month

Product Description

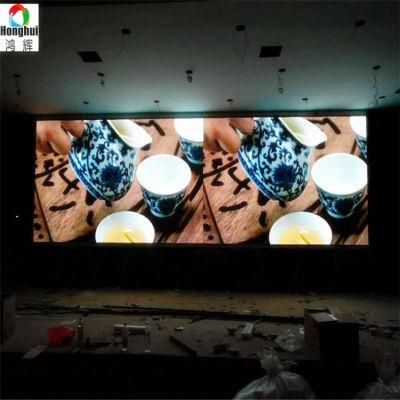

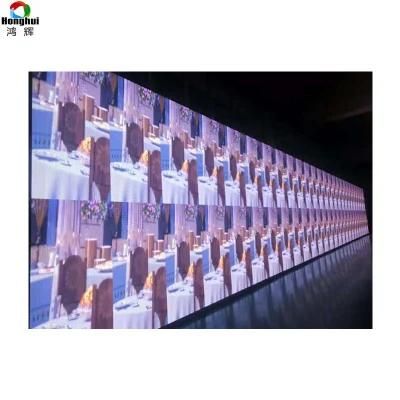

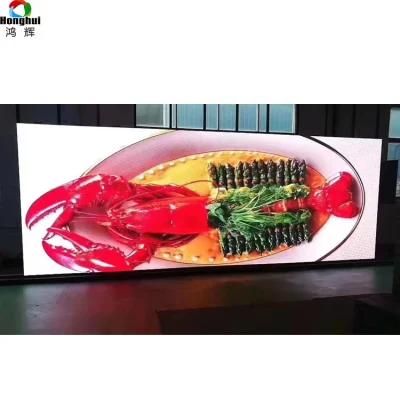

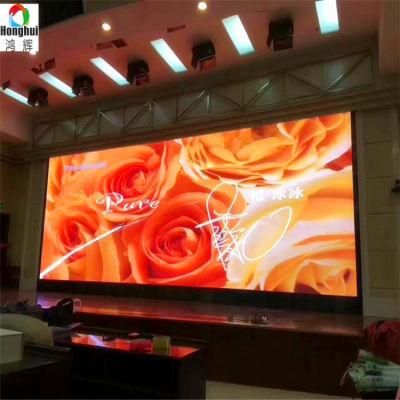

High Gray Scale Without Flickering Fixed UHD Indoor LED Display

Ultra HD Indoor LED Display Features

1. Suitable for indoor, commercial applications, banking, financial securities, post office, ferry,    shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.

2. Modularization design make it easier for the installation. User just mounts iron sheet or magnetic product on the surface which convenient for maintenance.

3. Lower power consumption and longer lifespan time about 50,000 hours.

4. The LED Display can change the shape by your needs, such as arc screen.

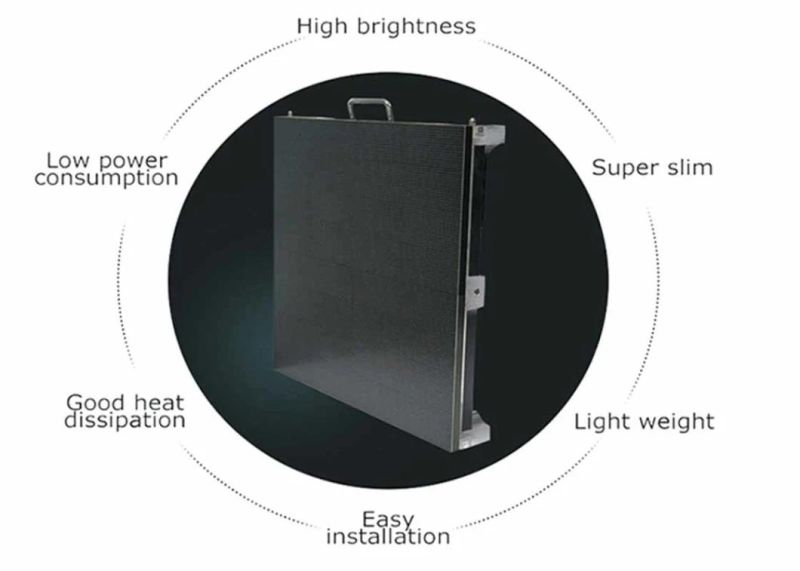

5. Super thin and super light cabinet, convenient for transportation and installation.Due to its wide application range, there are different ways to install,which owns a flexible installation

6. The HD series owns high definition and it is made of die-casting aluminum, through CNC precision processing.Then the error is controlled within +/-0.05 mm, it can achieve seamless connection.









Details

Model	IU-1.2
Pixel Pitch	1.25mm
Pixel Density	640,000px/m²
LED Type	SMD0909
LED Configuration	1R1G1B
Cabinet Dimension	400*300
Cabinet Resolution	320*240
Cabinet Weight	4.6kg/panel
Cabinet Material	die-casting
Ingress Protection(front/rear)	IP430
Brightness	>800nits
Contrast ratio	4000:1
Colours	281 trillion

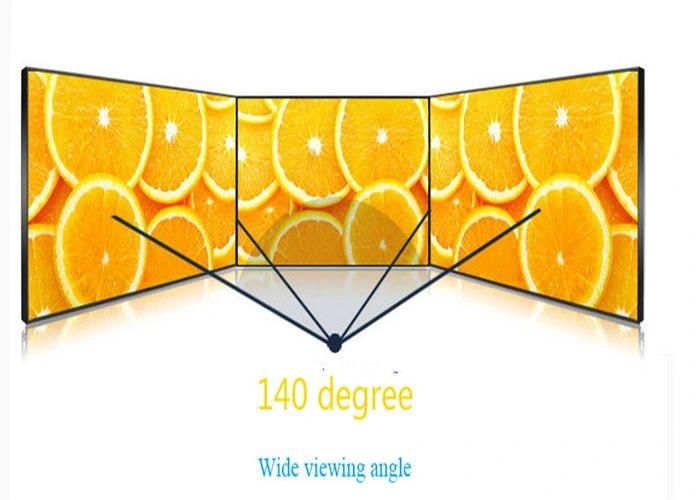

Viewing Angle(H/V)	140°/140°
Driving Method	1/30 Scan
Power Consumption(avg.)	220w/m²
Power Consumption(max.)	800w/m²
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz
Gray Scale	16bit
Power Supply	AC 110/220±10%/50~60Hz
Temperature(operating/storage)	-20~50°C/-40~60°C
Humidity(operating/storage)	10%~90%RH/10%~85%RH
MTBF	≥1000 Hours
Life Span	≥50000 Hours

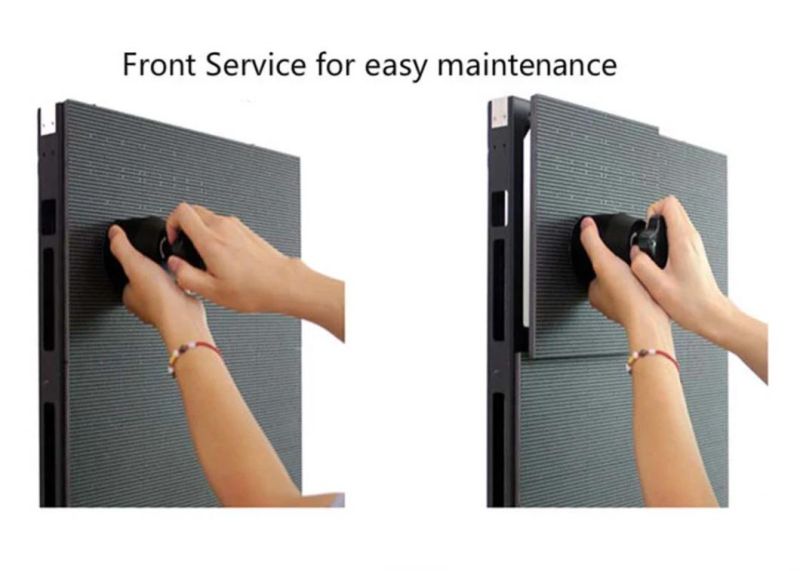

Service	Front/Rear
Certification	CCC,TUV-CE,ETL

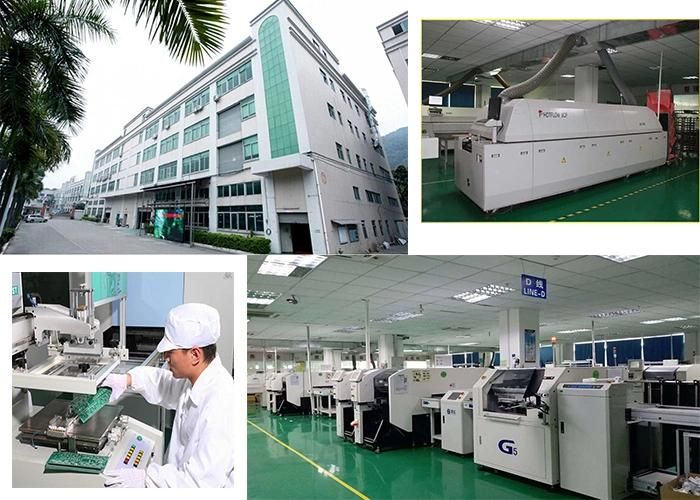

Factory
1.Regarding the production of products, from raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.

2.At the same time, before leaving the factory,we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.

Tips

1. Payment:We accept the L/C,T/T,Western Union.
2. Shipment: We will ship within 20-25 working days after you placed the order, but the specific delivered time  will  be affected by the shipping company and shipping details.
3. Package:We usually pack the product in a wooden box or flight case.



FAQ
Q1: How to choose a proper led screen for need?
A: You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?

Q2:May I know the shipment?
A: Yes, we will ship with 20-25 working days after we received your deposit.

Q3. How about your package?
A: Well, we usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choose.
