Basic Info.

Model NO. P3.91 Pixel Density 65536 Pixels/M2 Scanning Mode 1/16 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, CCC, ETL Panel Dimeniosn 500X500X80mm or 500X1000X80mm Contrast Ratio 4000:1 Refresh Rate >1920Hz Panel Material Die-Casting Aluminum Warranty 2 Years IC Mbi5124 Power Supply Meanwell Processing 16bit LEDs Nationstar Expected Lifetime 100000 Hours Module Size 250X250mm Transport Package Flight Case or Plywood Case Specification 50x100cm Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 10, 000sqm/Month

Product Description

Quick installation P3.91 outdoor rental led display with Nationstar leds
High Brightness, High Definition
Slim and Large Format Cabinet
High Definition Indoor Display

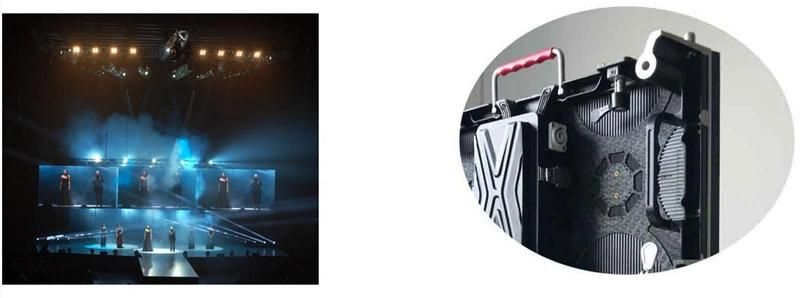

Curvilinear, Concave, Convex

P3.91 outdoor rental led display Features:

Unsurpassed Color Uniformity                                                          Fast Installation and Easy Maintenance
Unique color calibration process                                                               Hanging and stacking  are available
Tight bin selection for LED wavelength                                                    Cable-less between modules
Deep black levels, contrast ratio 4000:1                                               Front and rear access, Tools free installation


Slim, Light Weight and Quiet                                                                      Smart Concave and Convex
500mmx500mm or 500mmx1000mm cabinet                                                Cabinets are arc-able
80mm thickness, 7 KG per cabinet                                                                0°-10° concave and convex degree
Fanless design
1 person job



P3.91 outdoor rental led display specs

	BIR-II-3
Physical Pitch(mm)	3.91mm
Pixel Configuration	SMD2121
Pixel Density	65.536 pixels/sqm
Module Dimensions (W × H) (mm)	250x250

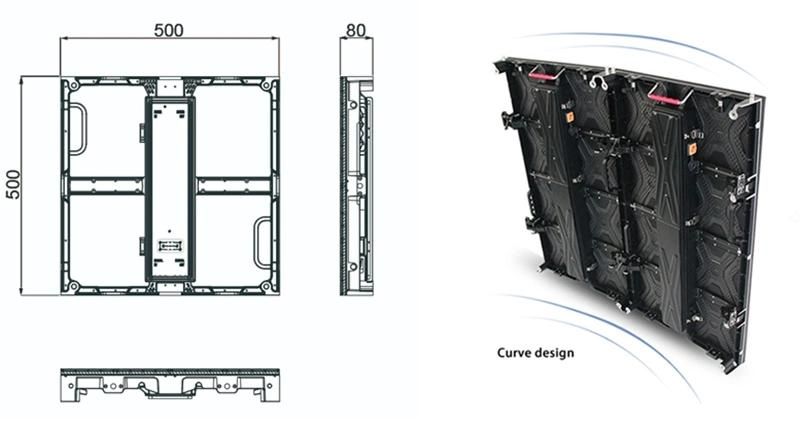

Panel Dimensions (mm)	500x500x80/500x1000x80
No. of Modules Per Panel (W × H)	2x2/2x4
Physical Resolution of Module (W x H)	64x64
Physical Resolution of Panel (W x H)	128x128/128x256
Panel Material	Die-casting Aluminum
Single Cabinet Weight	8/14 kg / panel
Gray Scale	16 bit
Colours	281 trillion
Contrast Ratio	4,000:1
Average Power Consumption	325 W / sqm
Max Power    Consumption	780 W / sqm
Operating Temp/Humidity	-10°-60ºC/10%-60%
Storage Temp/Humidity	-30°-60ºC/10%-60%
Refresh Rate	>1,920 Hz
Brightness	≥1,200nits
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Expected Lifetime	100,000 Hrs

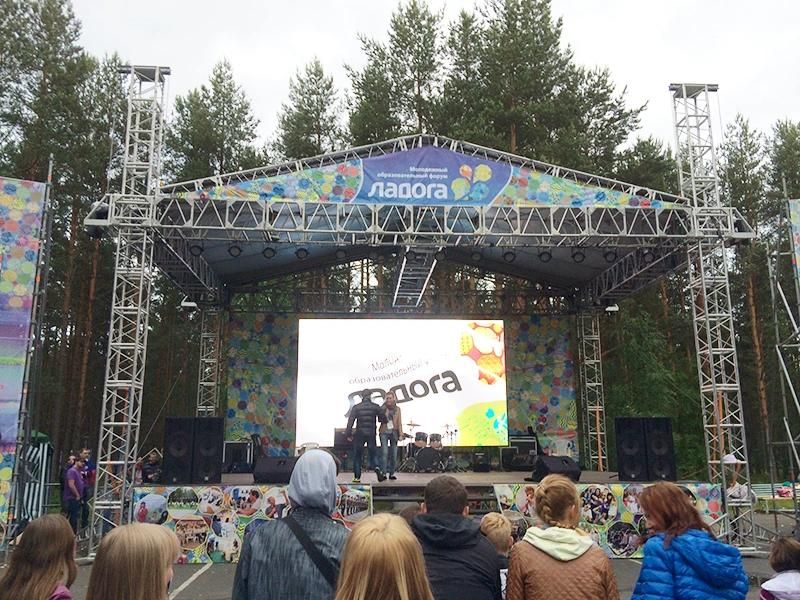

Case

    Location: Russia

   Screen Dimension: 46m²

   Product Model: BOR-6, pixel pitch 6.25mm
