No.ParameterSpecification1Pixel Pitch7.8-12.5mm 10.4mm 15.625mm25mm 2Cabinet size 500*1000mm500*1000mm500*1000mm 500*1000mm 3Cabinet resolution (dots)64*8048*96 32*64 20*404Pixel Density1024dots/sqm 9216dots/sqm 4096 dots/sqm1600dots/sqm 5LED TypeSMD2727 SMD2727 DIP346DIP3466Viewing Angle(H)140°,(V)140°(H)140°,(V)140°(H)140°,(V)140°(H)140 , (v)1407Brightness≥6000cd/sqm ≥8000cd/sqm ≥8000cd/sqm≥7000cd/sqm8Drive Methodstatic scan static scan static scan static scan  9Driving ICMBI5120MBI5120MBI5120MBI512010Refresh Rate≥1920 HZ≥1920 HZ≥1920 HZ 1920HZ11Frame Rate≥60Hz≥60Hz≥60Hz≥60HZ12Brightness AdjustmentAuto controlAuto controlAuto controlAuto control 13Cabinet Weight≤20kg/sqm≤20kg/sqm≤20kg/sqm≤20kg/sqm 14VoltageAC 220/110V±10%,50HzAC 220/110V±10%,50HzAC 220/110V±10%,50HzAC 220/110V  10%, 60HZ 15Avg. Power Consumption220W/sqm220W/sqm220W/sqm220W/sqm 16Max. Power Consumption650W/sqm650W/sqm650W/sqm650W/sqm 18Service AccessFront/Rear maintenanceFront/Rear maintenanceFront/Rear maintenanceFront/ Rear maintenance 19Protection GradeFront IP65,Rear IP54Front IP65,Rear IP54Front IP65,Rear IP54Front IP65 , Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH-30ºC~60ºC, 10~95%RH-30ºC~60ºC, 10~95%RH-30 ~60 , 10~95%RH 21Control modesynchronization with PC or asychronous synchronization with PC or asychronous synchronization with PCsynchronization with PC
 22Operating SystemWINDOWS(98/2000/XP/Vista)WINDOWS(98/2000/XP/Vista)WINDOWS(98/2000/XP/Vista)WINDOWS(98/2000/XP/Vista )23Storage Temp/Humidity-40ºC~60ºC, 10~95%RH-40ºC~60ºC, 10~95%RH-40ºC~60ºC, 10~95%RH -40ºC~60ºC, 10~95%RH24Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TVVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TVVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TVVGA,DVI,RGB HV ,PbpPr ,(HDTV) , Composite ,S-video ,TV 25Lifetime(Normal Temp)≥100,000Hours≥100,000Hours≥100,000Hours 100,000hours

Project cases samples which use our products have done in different countries

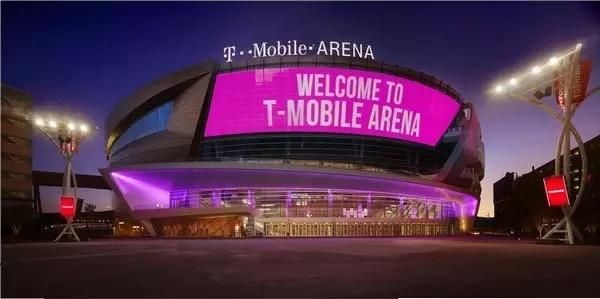

Project in USA

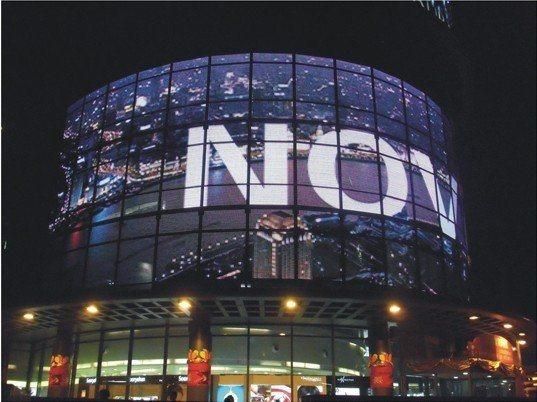

In Singapore



Company introduction
Shenzhen Chuangkaiguang Co., LTD (known as CKGLED), a professional LED display factory who specializes in R&D / DESIGN / PRODUCTION / SALES, was established in 2012 with a registered capital of more than $ 12 Million. CKGLED product ranks are indoor/outdoor rental led displays, Ultra small pixel pitch led displays, indoor/outdoor fixed installation led displays, sports /stadium led displays, traffic led displays, etc. The company has developed a long-term development strategy plan, adhere to the "Thanksgiving, integrity, innovation, focus" business management philosophy, to create the world's largest LED photoelectric display products integrated manufacturing service provider for the goal, we work together for common development.

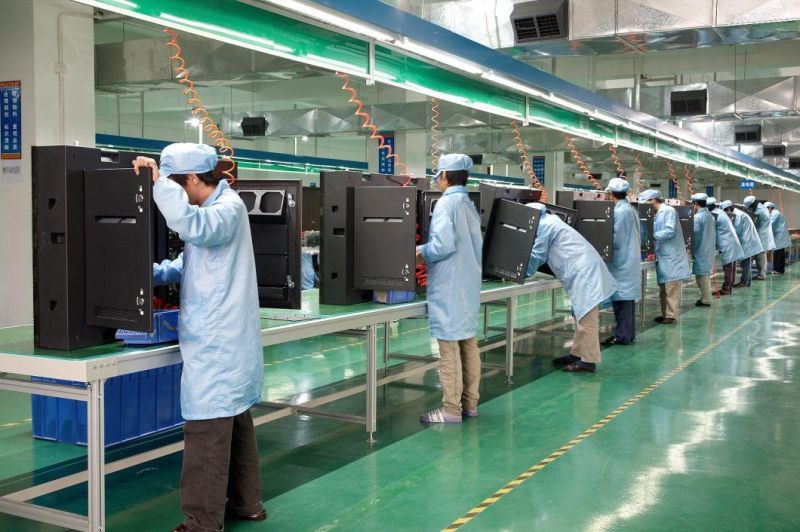

Workshop

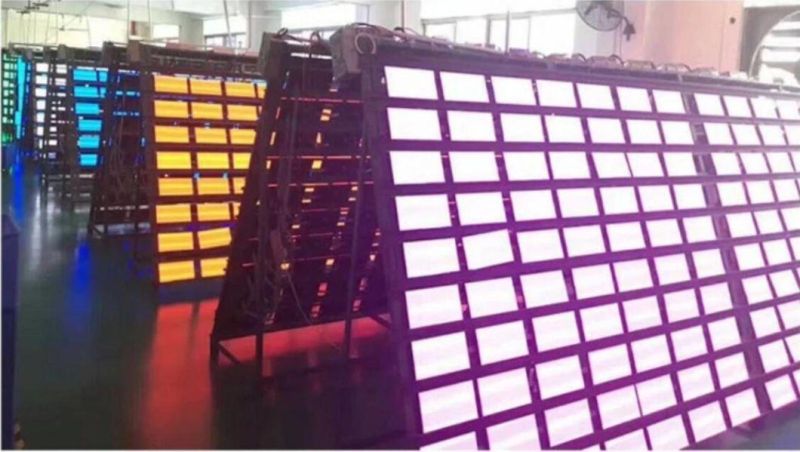

Aging test
In every step of manufacturing , we have sound quality control system , there is a QC to inspect all details during process .
Every order we manufactured , we have to test 72 hours to ensure no faculty problem and ship to our customers .




Certificates

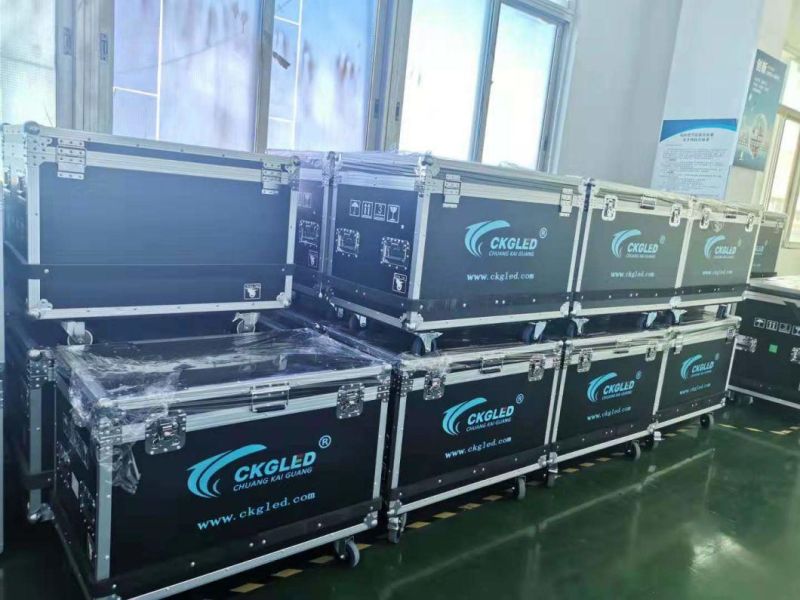

Package




Service

Pre-sales
Provide details about the production procedure
Assign engineers installation and testing

Sales

Customized solution designs
Product rendering and steel structure drawing
CKGLED'S successful project  cases and visit our production and R&D department


After-sales service

Two-year warranty with lifelong maintenance .

Free-guarantee repair including labor and material :free repair service during warranty period and resonable charge for spare parts and maintaining service .

After quality warranty period , we will not exampt our responsibilities for products owned defects .

Responding time : upon  receiving user's notification ,  we ensure 24  hours after-sales technical support .

Spare parts : necessary spare parts are provided together with products to customers .

Free technical training : intergrative or normaltive training is available  for free to customers by out technical  personnel  to ensure  they are skilled in regular  .

Telephone investigation :    Our after-sales team will phone the user every month during the warranty period to follow up the working condition of products , and to discover and solve problems , if necessary  .


Software upgrade  : Lifelong maintenance of controlling system ,  incessant  improvement of system functions and contiuous software upgrades .


Site instruction service of  installation is available .

Free on-site service for  related issues .
