Basic Info.

Model NO. BIR-II-3.91 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP40 Certification CE, RoHS, UL, CCC, ETL, EMC LED Type SMD 2121 Refresh Rate >1920 Hz Processing 16 Bits Colours 281 Trillion Contrast Ratio 4000:1 Transport Package Wooden Crate or Flight Case Origin China HS Code 8528591090 Production Capacity 6000m2/Month

Product Description

Indoor Stage Rental LED Display with Stacking and Hanging Installation

Indoor Stage Rental LED Display Features and Advantages

1. Slim, lightweight. The cabinet is made of die-casting aluminum, only 8kg per cabinet, 75mm thickness, 22% lighter than normal displays, saving the transportation cost effectively.
2. Made with die-casting aluminum better for heat dissipation and no fan design very quiet.

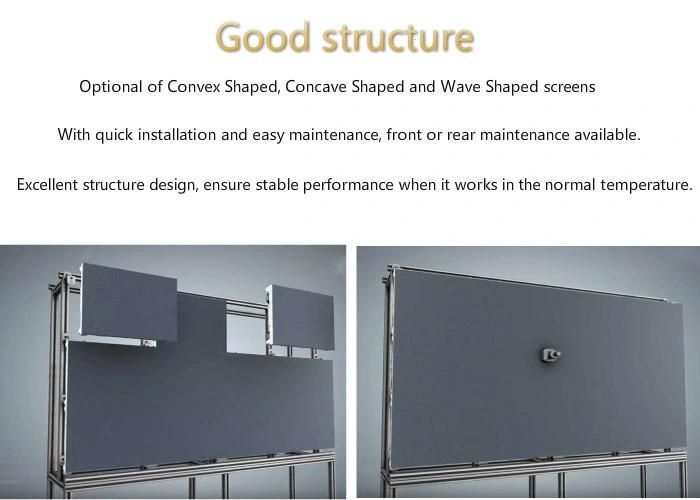

3. Fast installation and easy maintenance. Fast lock design guarantees a quick installation without tools. Magnetic modules guarantees a easy maintenance, saving the handling, labour cost effectively.
4. Wide viewing angle. 160° for horizontal, 140° for vertical. High contrast ratio and high refresh rate bring you a visual feast and well return.
5. Special concave and convex design, totally satisfy your requirements.



	BIR-II-2	BIR-II-3	BIR-II-4
Physical Pitch	2.97mm	3.91mm	4.81mm
Pixel Configuration	SMD2121	SMD2121	SMD2121
Pixel Density	112,896 pixels/m²	65,536 pixels/m²	43,264 pixels/m²
Module Dimensions	250×250mm/250×500mm	250×250mm/250×500mm	250×250mm/250×500mm
Panel Dimensions	500×500×80mm/500×1000×80mm	500×500×80mm/500×1000×80mm	500×500×80mm/500×1000×80mm
NO. of Modules Per Panel	2×2	2×2	2×2
Physical Resolution of Module	84×84dots/84×168dots	64×64dots/64×128dots	52×52dots/52×104dots
Physical Resolution of Panel	168×168dots/168×336dots	128×128dots/128×256dots	104×104dots/104×208dots
Panel Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Single Cabinet Weight	8kg	8kg	8kg
Grayscale	16bit	16bit	16bit
Colors	281trillion	281trillion	281trillion
Contrast Ratio	4000:1	4000:1	4000:1
Average Power Consumption	60/120W/ panel	60/120W/ panel	60/120W/ panel
Max Power Consumption	110/400 W/ panel	110/400 W/ panel	110/400 W/ panel
Refresh Rate	>1920Hz	>1920Hz	>1920Hz
Brightness	900 - 1200 nits	900 - 1200 nits	900 - 1200 nits
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs
Servicing	Front/Rear	Front/Rear	Front/Rear
IP Rating(Front/Rear)	IP40/IP21	IP40/IP21	IP40/IP21

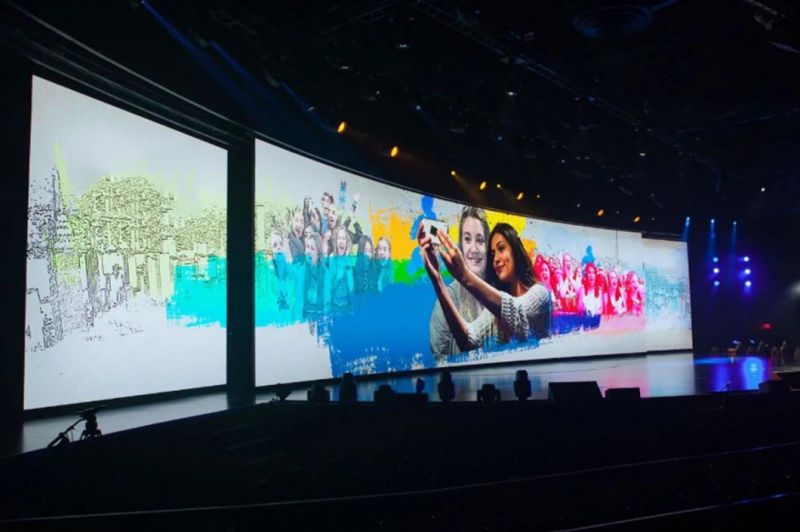

Shows






Indoor Stage Rental LED Display Package&Shipment




Services

1) We can offer customization service for customized products and can provide onsite installation and testing service.

2) We provide 2 years warranty and free repair service for our products sold.

3) We also provide free training to customers' engineer.

4) Regarding the production of products, from raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.

5) At the same time, before leaving the factory,we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.

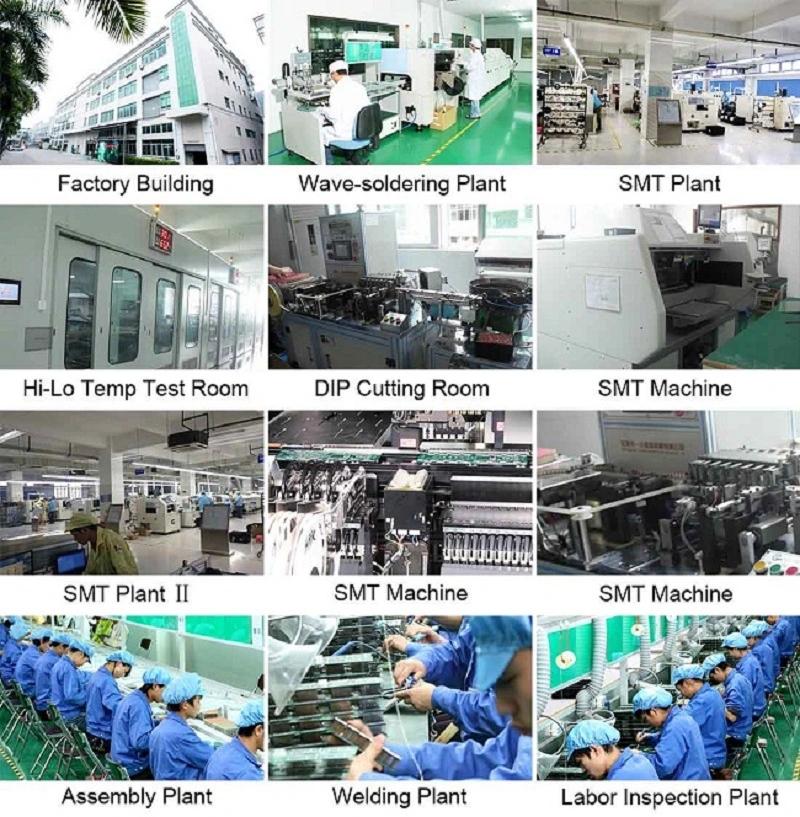

ABOUT US
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Why choose us?

1. Superior quality

We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.

1. Attractive design

Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.

1. Professional consulting services

Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.

1. Perfect after-sales services

• 2 years free maintenance.
• 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
• Free training for customers in factory.
• Local partner installation service.
