Basic Info.

Model NO. p4 indoor System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC LED Display P4 Indoor Full Color LED Display P4 Size of Module 128*128mm Pixel Composition 1r1g1b Resolution of Module 32*32 Best Viewing Distance 4m Best Viewing Angle(H) 140° /120° Max Power Consumption 2000W/M 2 Best Viewing Angle 140° Refresh >300Hz Life Span 100,000h Transport Package Wooded Package and Flight Package Specification CE Trademark foxgolden Origin China HS Code 8528591090 Production Capacity 12000 Pices/Year

Product Description

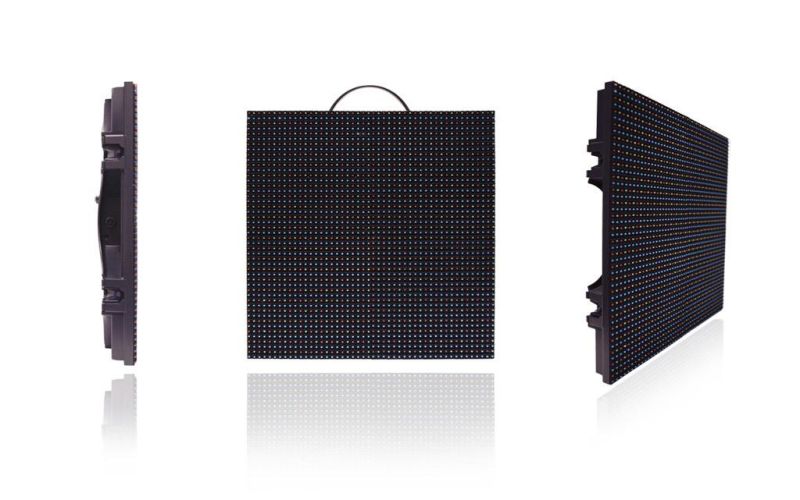

High Brightness Full Color 3in1 Indoor P4 LED Display
1. 2121SMD
2. LED: Epistar
3. Two Years Warranty
4. CE&RoHS

High Brightness Full Color 3in1 Indoor P4 LED Display:
1. High Contrast: 4000: 1.
2. First-class LED chip: Epistar, Cree
3. Clear vivid image quality even in direct, full-on sunlight.
4. Long-term Brightness capacity throughout product lifetime.
5. Easy Installation & Using.
6. Convenient Servicing.

FOXGOLDEN is one of the most impressing Hi-tech enterprises in China. We have specialized in this business line for 7 years.
P 16 module is one of our promotion products in this period. We can give you a competitive price.



Competitive advantages.
1. In order to ensure that images and tests are clear, vivid and consistent, all the chips for the entire RGB LED screens for outdoor screens within 100 square meters are at the same grade such as the same brightness and the same wavelength.
2. In order ensure screen background can become matt, completely absorb LED reflective light and eliminate shadow and ghosting, we adopt imported glue to varnish module surface, the glue thickness for each module is not more than 0.1mm, so the color is consistent and uniform.
3. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
4. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system.
Trade terms:
1. Hardware: LED display and video controlling system
2. Technical material: English version user manual, installation manual
And maintenance manual
3. Service:
Provide free technology support by phone and e-mail
7 years guarantee


classification	P4
Real or virtual	Full color real
Pixel pitch	4mm
Size of module	128*128mm
Pixel density	62500 dots/m 2
Pixel composition	1R1G1B
LED encapsulation	SMD0807
Resolution of module	32*32
Power consumption of module	35W
Best viewing distance	4m
Best viewing angle(H)	140° /120°
Max power consumption	2000W/m 2
Size of standard cabinet	512*518mm
Resolution of standard cabinet	128*128
Weight of standard cabinet	10kg( waterproof)
Driving IC( 5026 optional)	MBI5024GP
