Basic Info.

Model NO. P3.91mm Pixel Density 65536dots Scanning Mode 1/16 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL Refresh Rate 1920~3840Hz Brightness 5000nits Screen Resolution 65536dots/Sqm Module Size 250*250mm Cabinet Size 500*500mm Cabinet Material Die-Casting Aluminum Transport Package Flight Case Specification 250*250mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:
1.High waterproof grade design:IP65

2.Fast lock design:save labor cost and time

3.Die-casting aluminum design:easy for transportation and installation

4.Seamless assembly:stainless steel locks achioeve micro-adjustment to make seamless screens

5.High grey and high refresh rate:achieve good visual effects

PRODUCT PARAMATERS:


NO.	Parameters	Specifications
1	Model	R3
2	Pixel Pitch(mm)	3.91
3	LED	SMD1921
4	Screen Resolution	65536dots/sqm
5	Scan Method	1/16
6	Module Size(mm)	250*250
7	Cabinet Size(L*H*W mm)	500x500x88
8	Cabinet(Kg)	7.8
9	Viewing Angle	H:160°/  V:160°
10	Grey Scale	14bit
11	Refresh Rate(HZ)	≥1920
12	Brightness(nits)	≥5000
13	Working Voltage(V)	AC 100~240V
14	AVE. power Consumption (W/m2)	230
15	MAX. power Consumption(W/m2)	560
16	IP Grade	F:IP65 / R:IP54
17	Working Humidity	10~95%RH
18	Storage Humidity	10~95%RH
19	Working Temperature	-30ºC~60ºC
20	Certificates	CCC,FCC,CE,RoHS

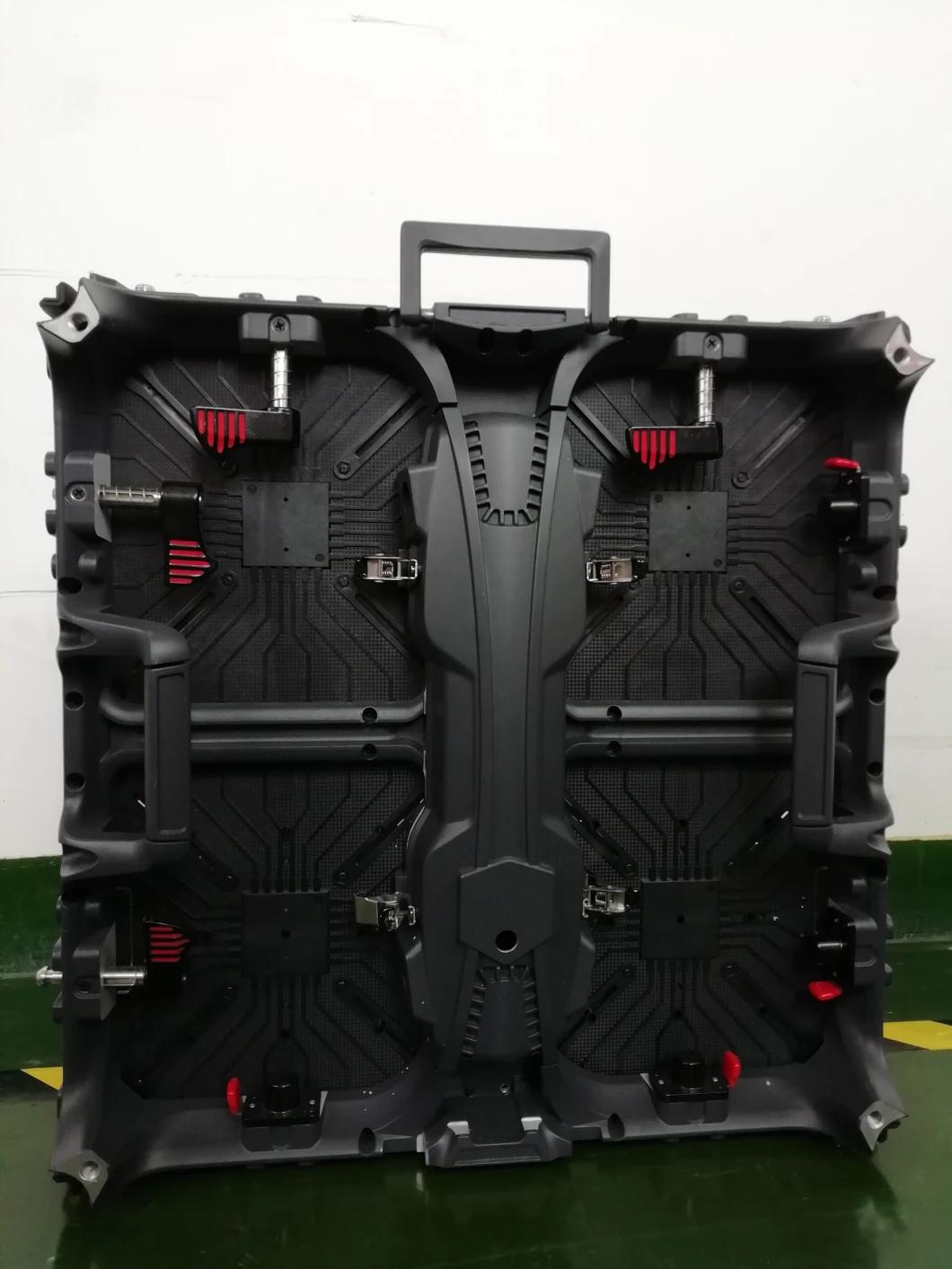

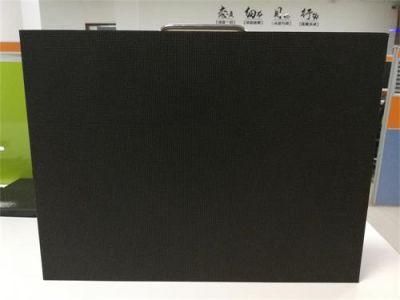

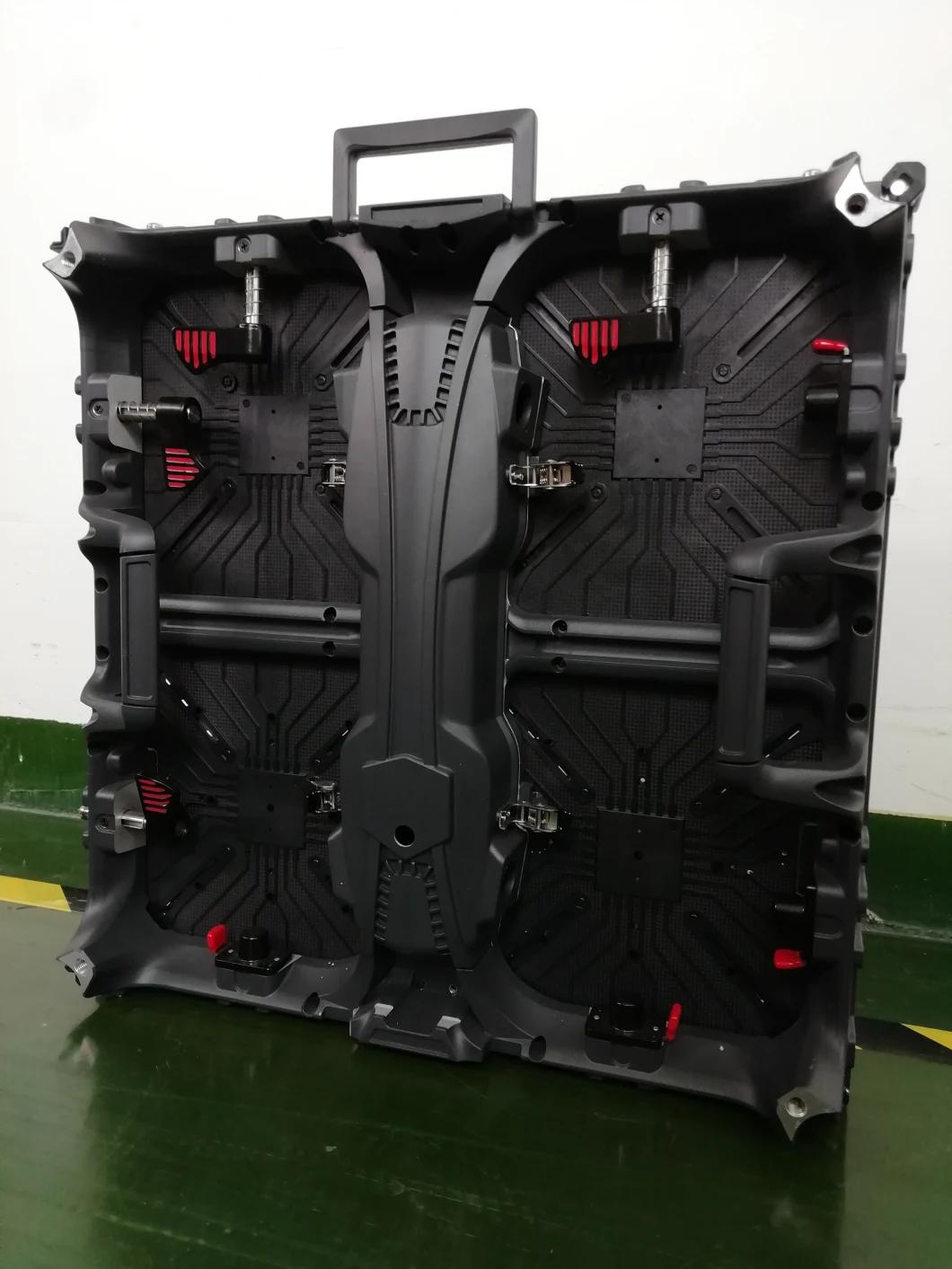

PRODUCT PHOPTOS:

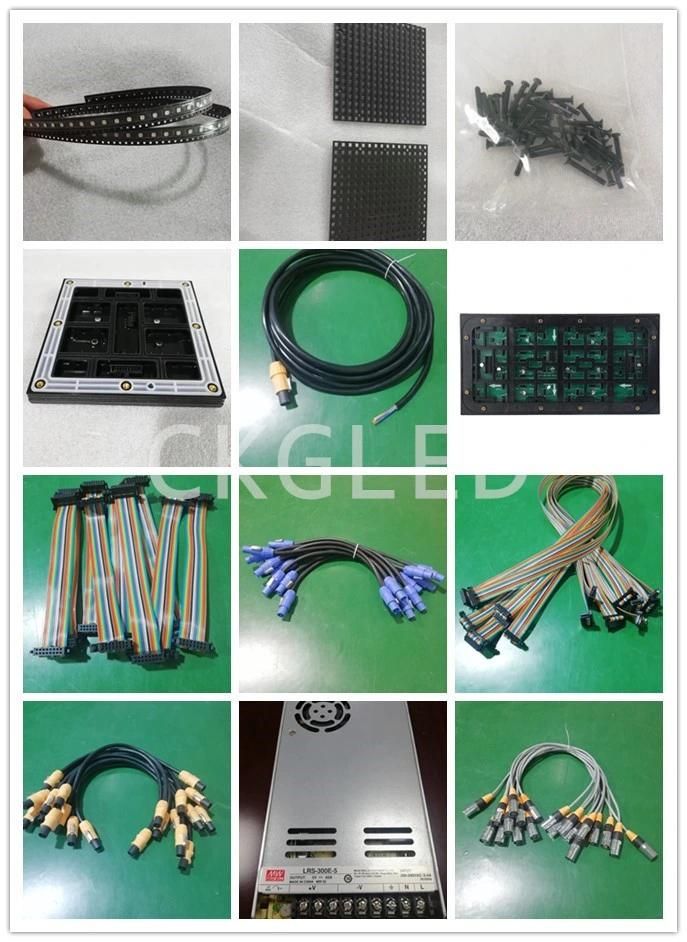

ACCESSORY:

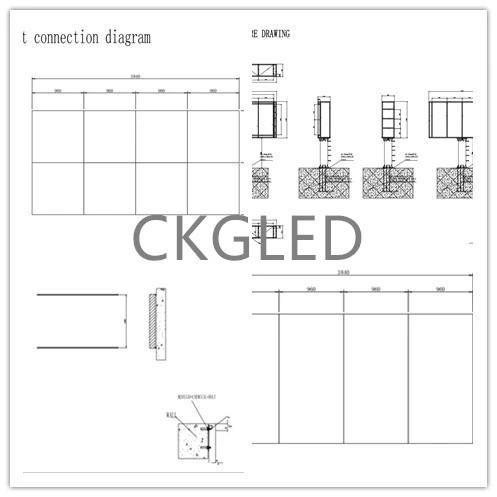

CAD DRAWINGS:

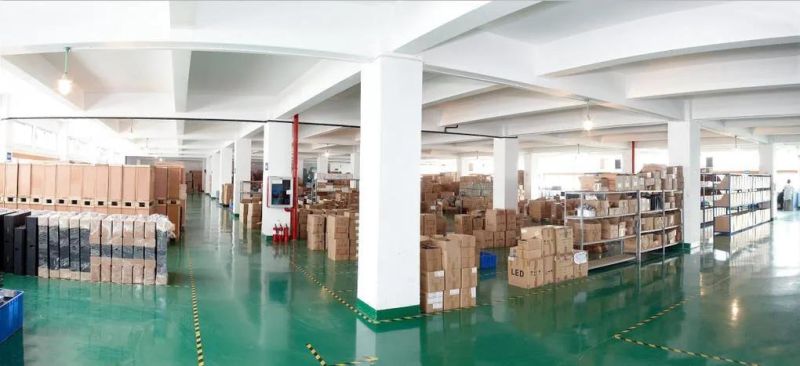

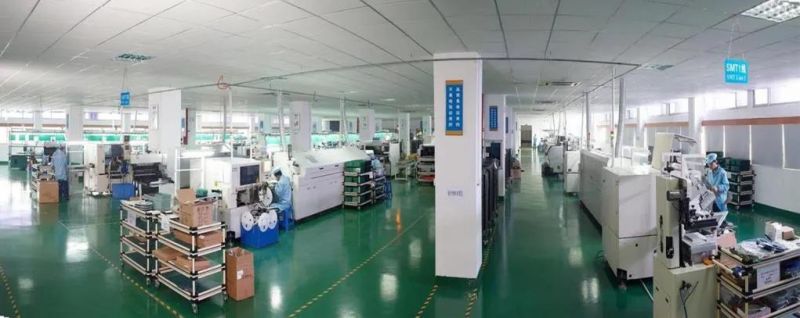

WORKSHOP:

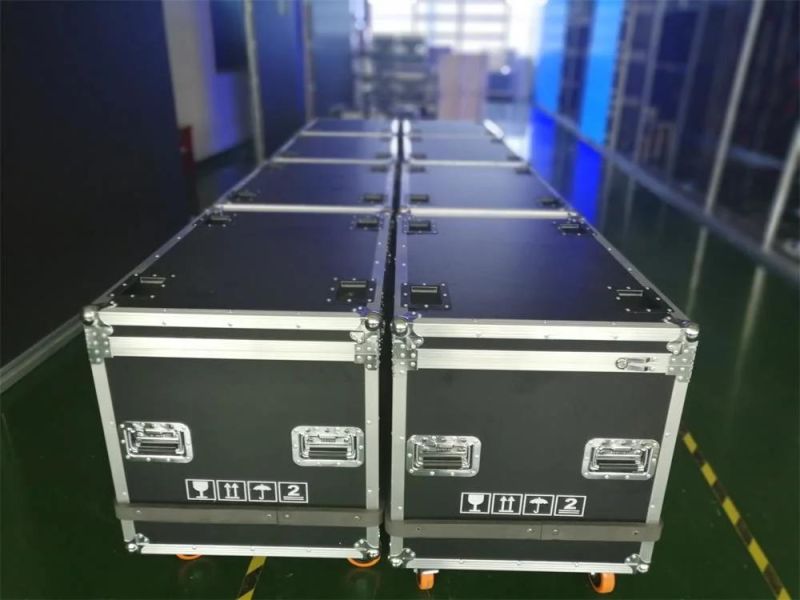

PACKAGE:



CULTURE:



CERTIFICATES:



OUR SERVICE:
1. Your inquiry will be replied in 24 hours

2. Full solution will be customized according to your requirement

3.Two years after-sales warranty, free repair service during the quality warranty period

HOW TO GET A FULL QUOTATION?
Send the message of pixel pitch,specific size and installation information to us. Full solution will be glad to provide.
