NO.ParameterSpecifications1ModelCA1.252Pixel Pitch(mm)1.253LEDSMD10104Screen Resolution640000 dots/sqm5Scan Method1/276Cabinet size(L*H)400X300mm8Viewing angleH:160° V:160°9Grey Scale16bit10Refresh rate(HZ)≥384011Module size(mm)240*24012Brightness(nits)≥80013AVE. power consumption (W/m2)30014MAX. power consumption(W/m2)80015IP gradeIP3116controllerNovastar17Working humidity10~95%RH18Input VoltageAC 110V-220V +/-10%19Working temperature-30ºC~60ºC20ComplianceCCC / CE / RoHS


Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

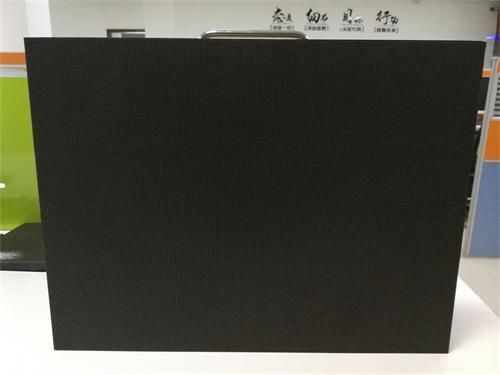

High Resolution Ultra Small Pixel Pitch (640000pixels/sqm)

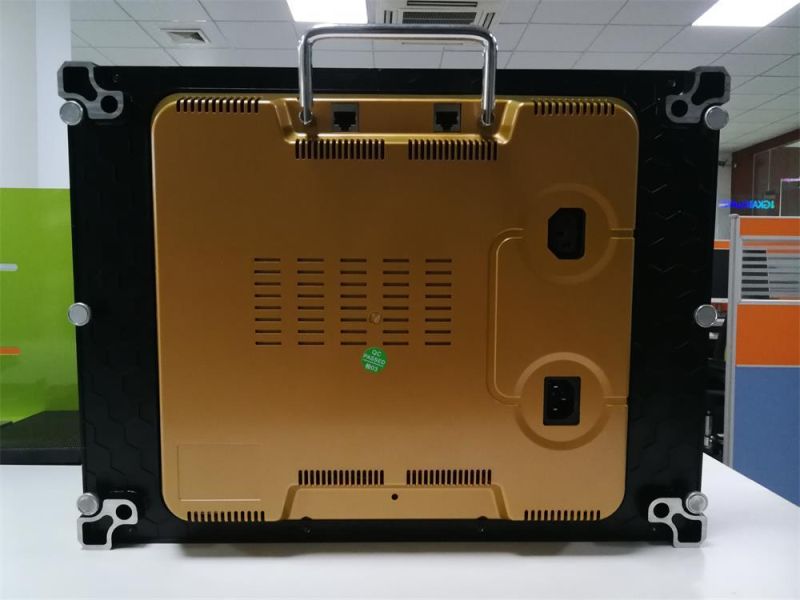

Front access with magnet ( no need any screws install)

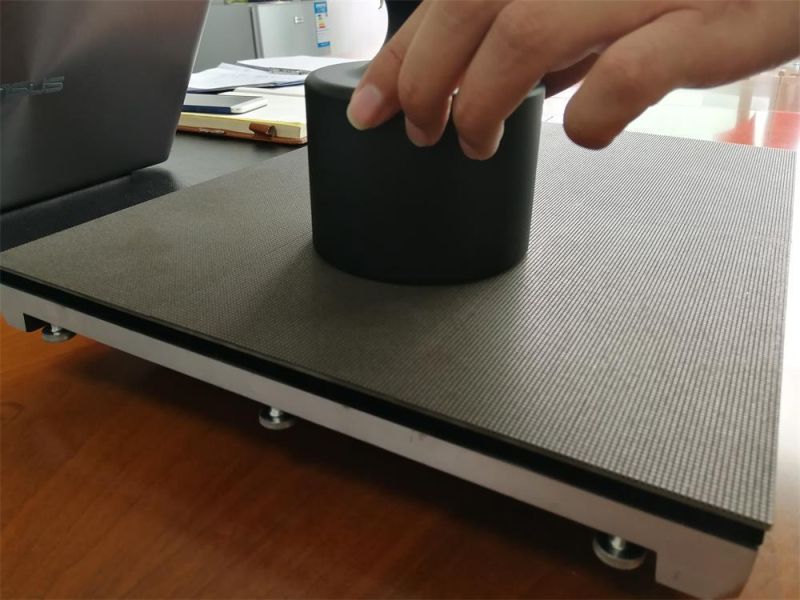

Front maintenance LED modules ( easy to install and easy to remove)

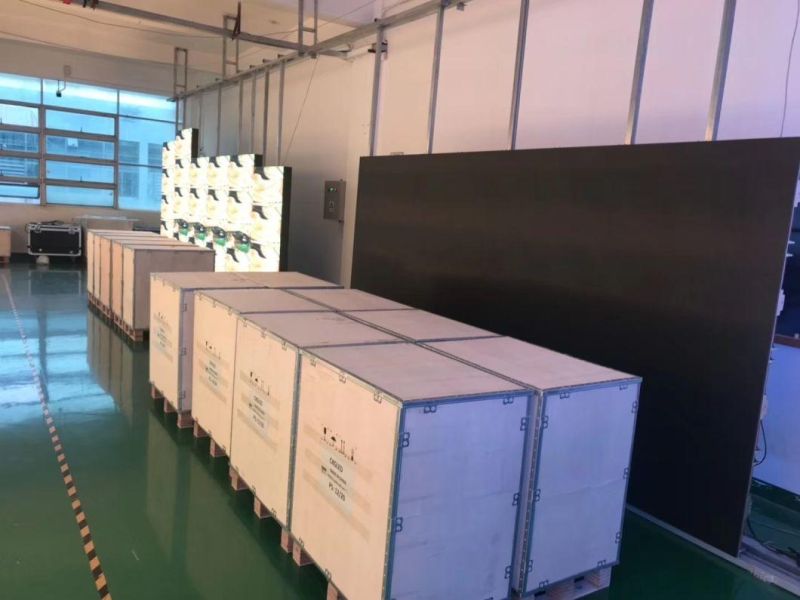

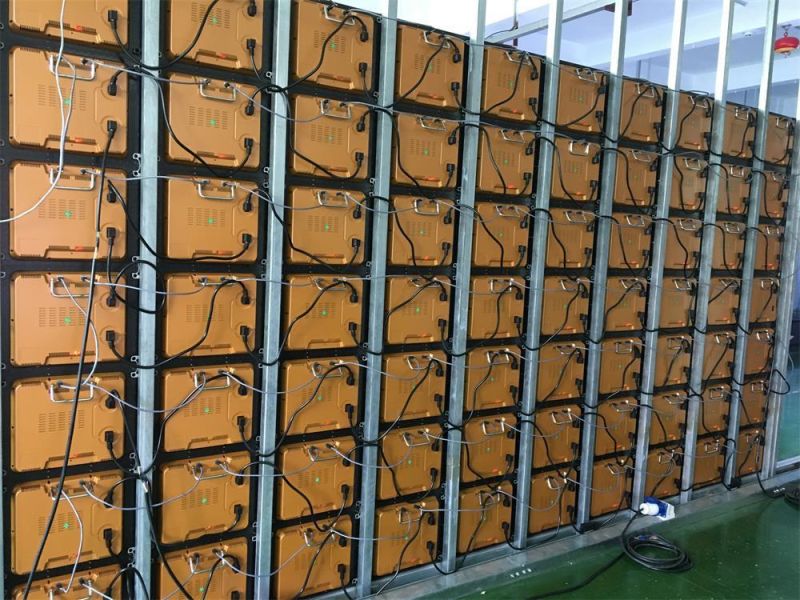

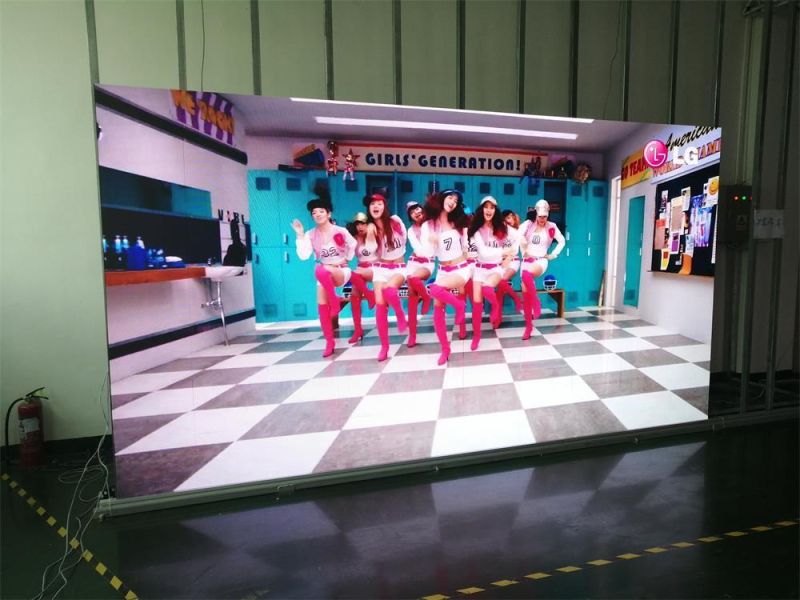

Factory Whole Screen testing

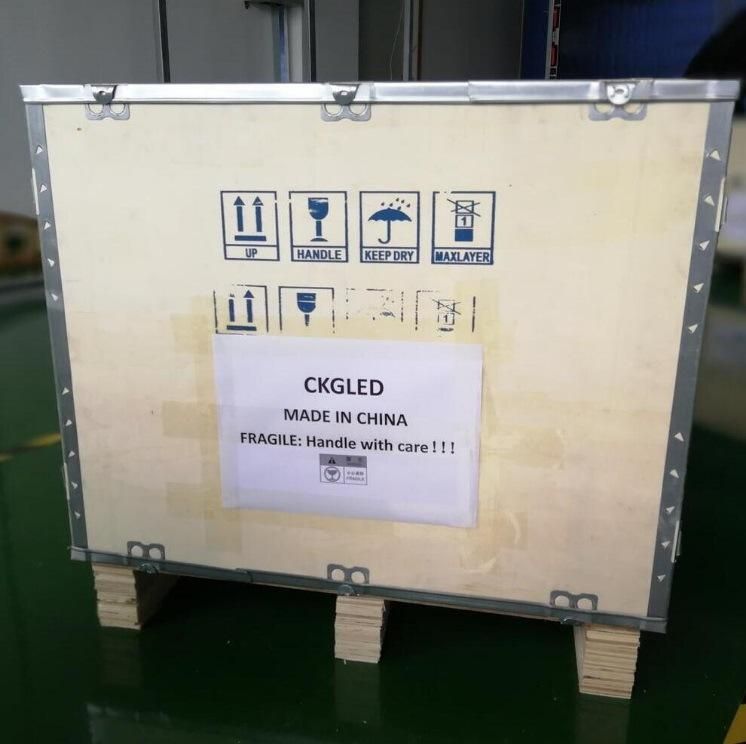

Wooden case Package:
